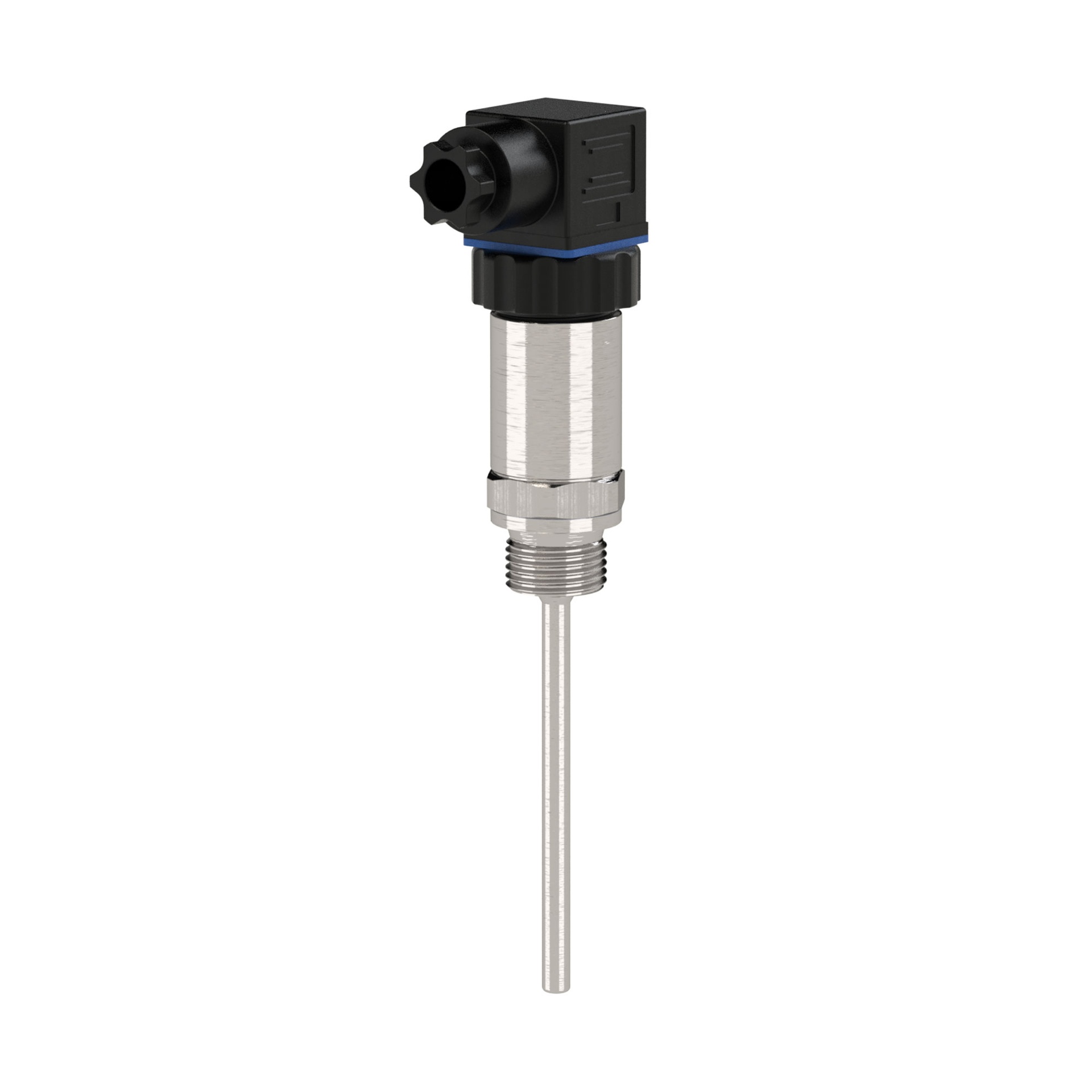

RIEGLER compact resistance thermometer, TR36, Pt100 cl. A, 3-wire, 150mm
Typennummer: TR36.100.3.A.12.150
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compact resistance thermometer made of stainless steel 1.4571, for pressure measurement, G 1/2 AG - type TR36.100.3.A.12.150
The RIEGLER compact resistance thermometer, TR36, Pt100 cl. A, 3-wire, 150 mm measures the temperature in pipes and containers. The housing is made of stainless steel 1.4571. The ambient temperature is between -40 °C and 85 °C. Connection thread G 1/2 AG - suitable for common industrial standards. Protection class IP 65, replaceable under pressure thanks to thermowell.
Field of application
Typical areas of application: Temperature monitoring in industry and process technology.
| Display range max. | 150 °C |
| WIKA Typ | TR36 |
| Angled plug material | PA |
| Installation length | 150 mm |
| Accuracy | Class A |
| Output signal | Pt100, 3-wire |
| Electrical connection | Angled plug form A |
| Display range min. | -30 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 85 °C |
| Wetted parts | Stainless steel 1.4571 |
| Housing | Stainless steel 1.4571 |
| Class name | FLEX |
| Thread | G 1/2 AG |
| Protection class | IP 65 |
