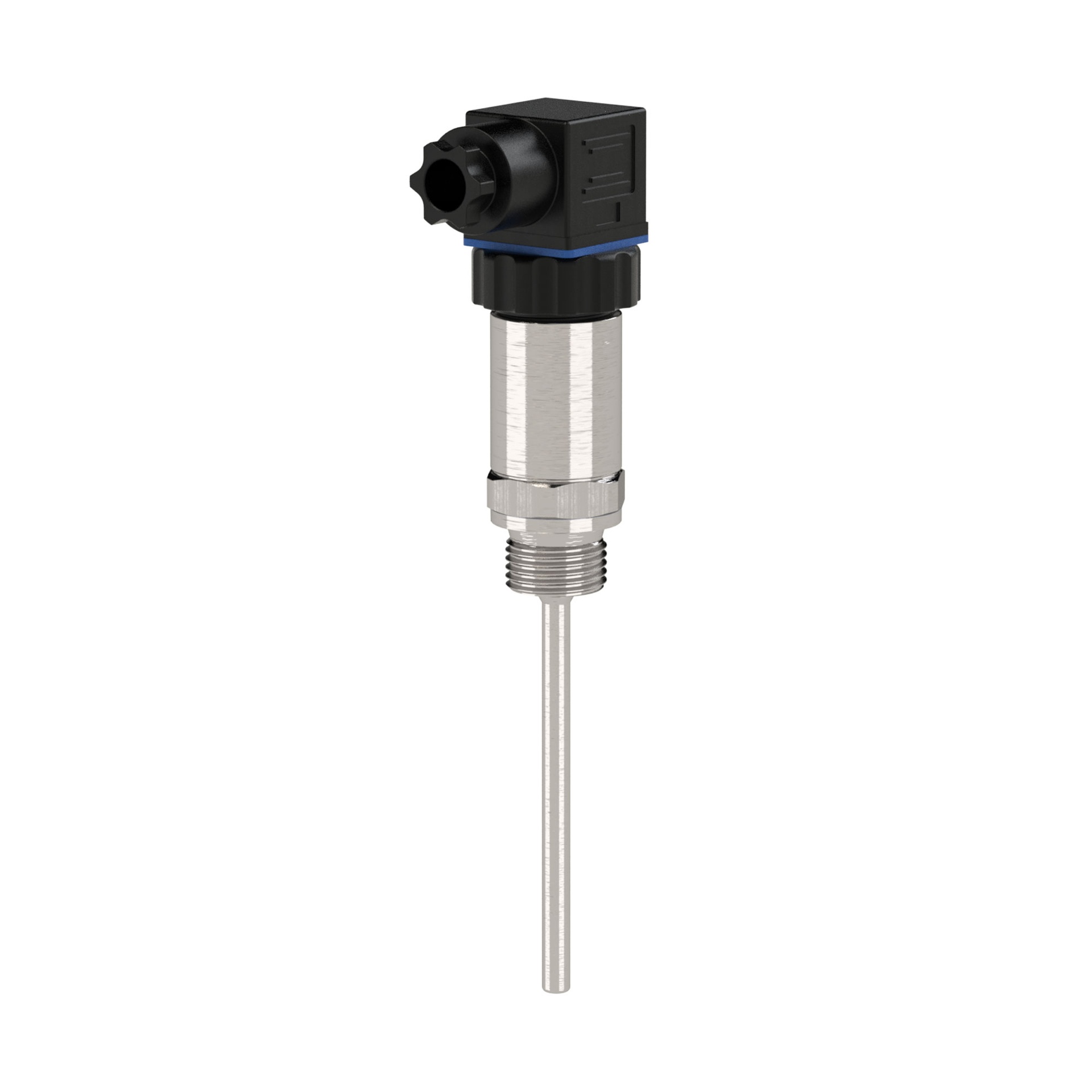

RIEGLER compact resistance thermometer, TR36, Pt100 cl. A, 3-wire, 200mm
Typennummer: TR36.100.3.A.12.200
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compact resistance thermometer, TR36, Pt100 cl. A, 3-wire, electr. connection form A, G1/2, -30 to 150°C, insertion length:200 mm
| Display range max. | 150 °C |
| WIKA Typ | TR36 |
| Angled plug material | PA |
| Installation length | 200 mm |
| Accuracy | Class A |
| Output signal | Pt100, 3-wire |
| Electrical connection | Angled plug form A |
| Display range min. | -30 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 85 °C |
| Wetted parts | Stainless steel 1.4571 |
| Housing | Stainless steel 1.4571 |
| Class name | FLEX |
| Thread | G 1/2 AG |
| Protection class | IP 65 |
