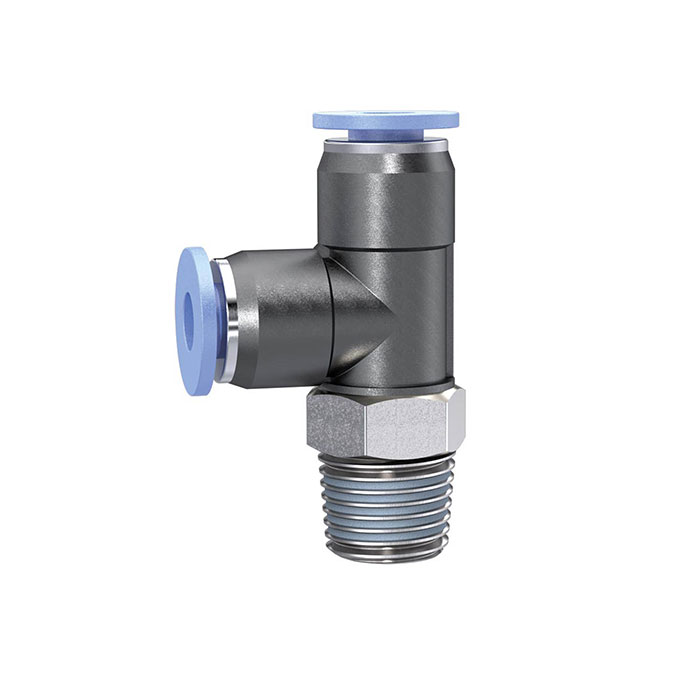

RIEGLER Push-in T-fitting »Blue Series« mini, L-shape, rotating, R 1/8
Typennummer: 130.018-4M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
T-Steckverschr. »Blaue Serie« mini, L-Form, drehbar, R 1/8, für Schlauch-Außen-Ø 4 mm, pmax 10 bar, Kunststoff/MS vern.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/8 |
| SW | 10 mm |
| Thread standard | ISO 7-1, thread coating |
| for hose outer Ø | 4 mm |

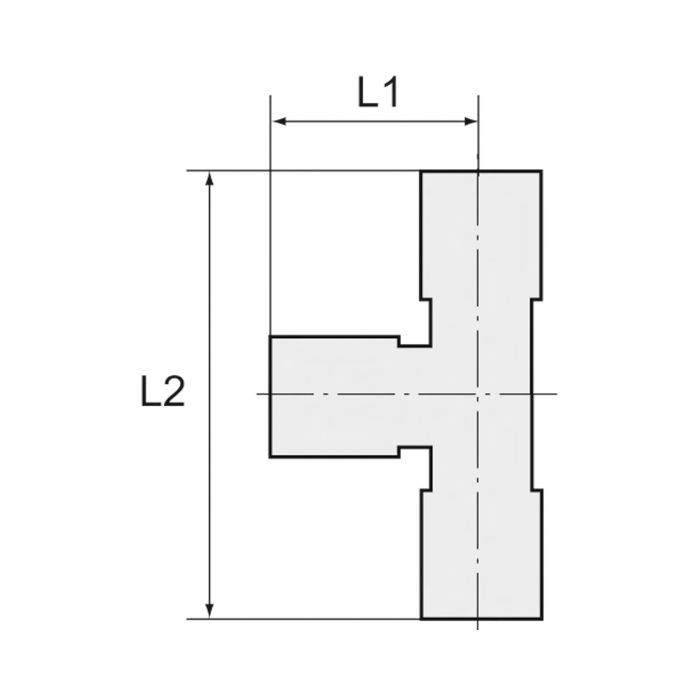

| L1 | 14.7 mm |
| L2 | 33.3 mm |
| Class name | EASY |
