RIEGLER Push-in T-fitting »Blue Series« mini, L-shape, rotating, R 1/8
Typennummer: 130.018-6M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

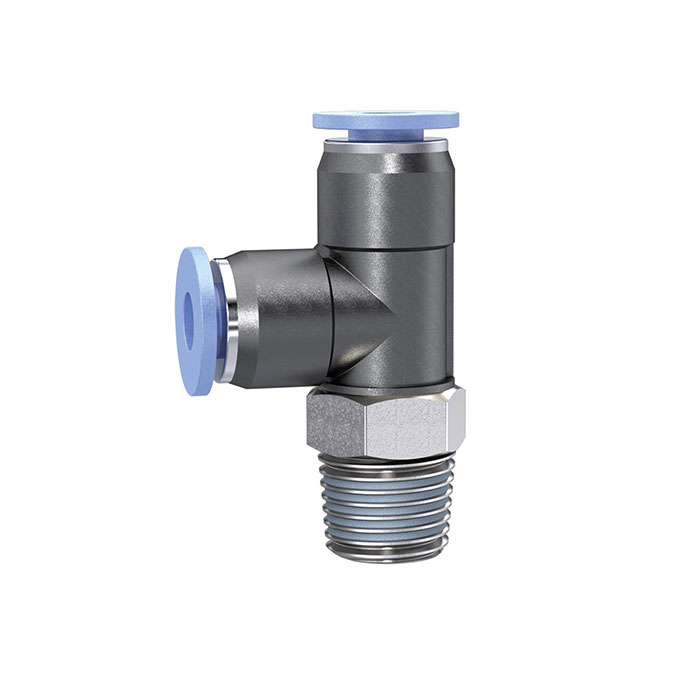

RIEGLER Push-in T-fitting "Blue series" mini made of plastic or nickel-plated brass - type 130.018-6M
The RIEGLER T push-in fitting "Blue series" mini, L-shape, rotatable, R 1/8 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread R 1/8 (ISO 7-1, thread coating) - suitable for common industry standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/8 |
| SW | 10 mm |
| Thread standard | ISO 7-1, thread coating |
| for hose outer Ø | 6 mm |

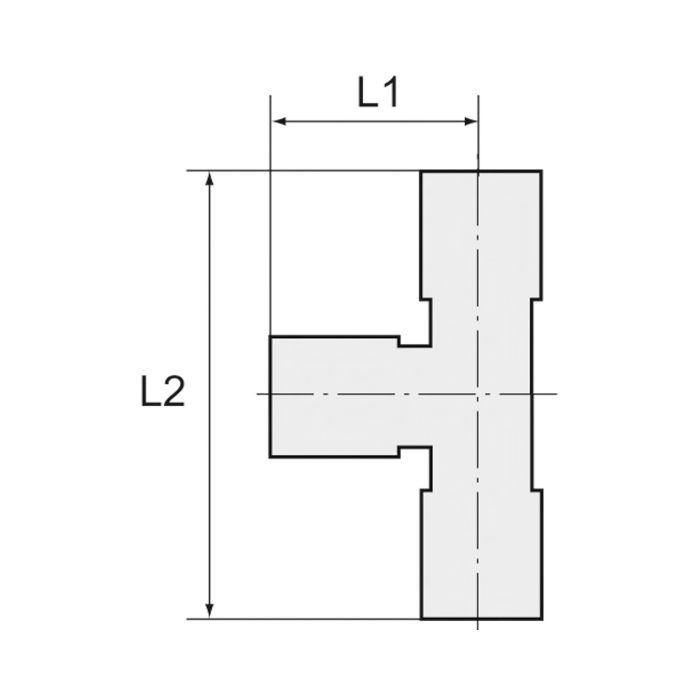

| L1 | 16.4 mm |
| L2 | 36.2 mm |
| Class name | EASY |
