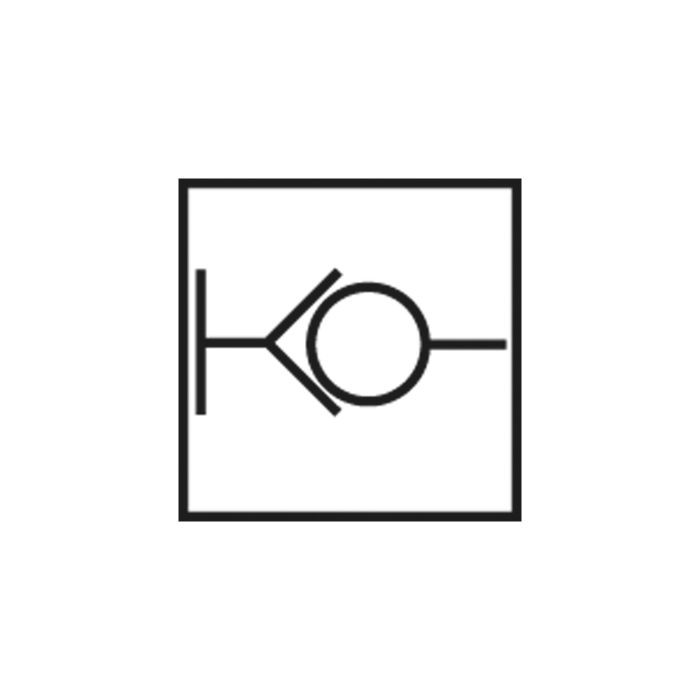

RIEGLER Straight push-in connector »Blue Series«, Self-locking, hose Ø 6
Typennummer: 199.06-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight connector "Blue series" made of plastic or nickel-plated brass - type 199.06-2
The RIEGLER straight push-in connector "Blue Series", self-closing, hose Ø 6 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 6 mm |
| L1 | 48 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151488] RIEGLER Straight push-in connector »Blue Series«, Self-locking, hose Ø 10](/web/image/product.template/210643/image_128/%5B151488%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20hose%20%C3%98%2010?unique=12cf5f3)
|
Typennummer: 199.10-2 |
4.87 € | |

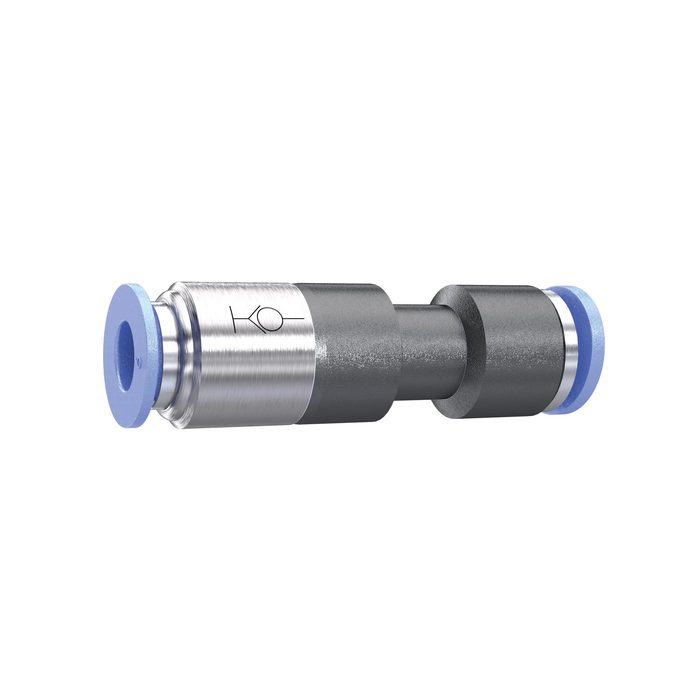

![[151489] RIEGLER Straight push-in connector »Blue Series«, Self-locking, hose Ø 12](/web/image/product.template/210644/image_128/%5B151489%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20hose%20%C3%98%2012?unique=bd280ff)
|
