RIEGLER Straight push-in connector »Blue Series«, Self-locking, hose Ø 10
Typennummer: 199.10-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight push-in connector "Blue series" self-locking made of plastic or nickel-plated brass - Type 199.10-2
The RIEGLER straight push-in connector "Blue Series" self-closing, hose Ø 10 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 10 mm |
| L1 | 61 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151489] RIEGLER Straight push-in connector »Blue Series«, Self-locking, hose Ø 12](/web/image/product.template/210644/image_128/%5B151489%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20hose%20%C3%98%2012?unique=bd280ff)
|
Typennummer: 199.12-2 |
5.77 € | |

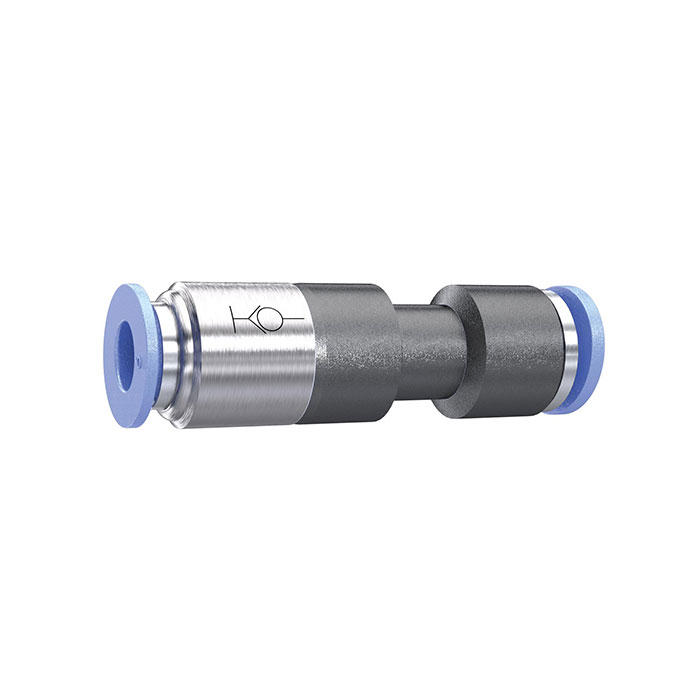

![[151485] RIEGLER Straight push-in connector »Blue Series«, Self-locking, hose Ø 4](/web/image/product.template/210640/image_128/%5B151485%5D%20RIEGLER%20Straight%20push-in%20connector%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20hose%20%C3%98%204?unique=33bc195)
|
