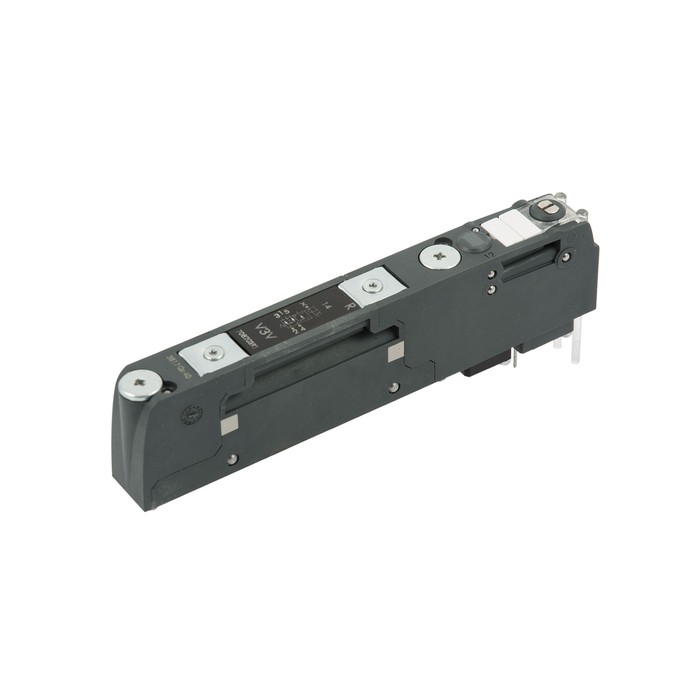

RIEGLER isolating valve (shut-off valve) EB 80, manual override bistable
Type number: 708203R1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Isolating valve (shut-off valve) for valve terminal EB 80, manual override bistable
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 4.7.3 |
| Control pressure max. | 8 bar |
| Manual override | bistabil |
| Execution | Trennventil (Absperrventil) |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | MAX |
| Control pressure min. | 3-5 bar, depending on working pressure |
| Flow 4 | 1000 Nl/min |
| Durchflusswertmessung 4 | with Y-connector Ø 10 mm, at 6.3 bar ∆p 1 bar |
| Module type | R |
| Module name | Valve |
| Max. operating pressure with ext. control air | 10 bar |
| Switch-on time at 6 bar (TRA) | 12 |
| Switch-off time at 6 bar (TRR) | 45 |
| Operating pressure min. with ext. control air | -0.99 bar |
