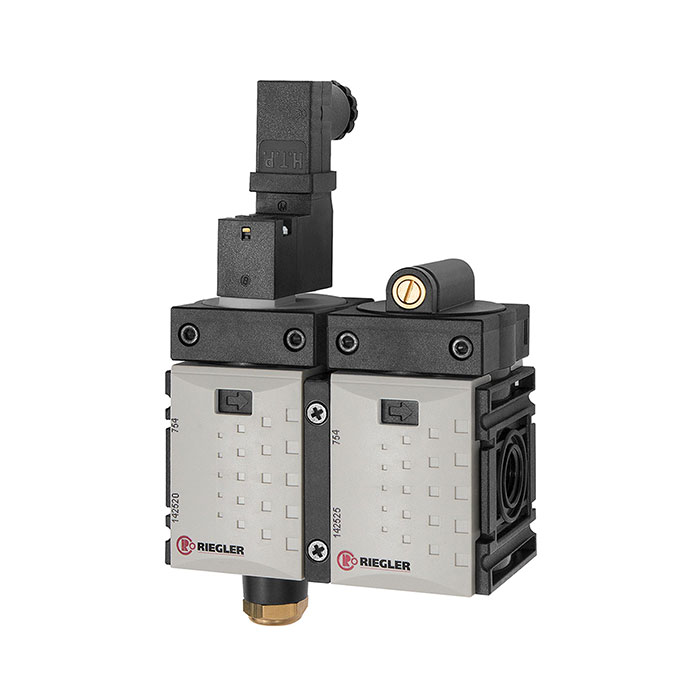

RIEGLER Filling unit »FUTURA-mini«, electr. actuated, 115 V AC, G 1/4
Type number: FUM 915
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filling unit "FUTURA-mini" made of PA66 GF60, for compressed air preparation, G 1/4 - type FUM 915
The RIEGLER filling unit "FUTURA-mini", electrically operated, 115 V AC, BG 0, G 1/4 expands maintenance systems modularly with additional functions. The housing is made of PA66 GF60. The maximum inlet pressure is 10 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 1400 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Power consumption 2.5 watts with DC voltage, protection class IP 65. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Duty cycle | 1 |
| Pick-up power with AC voltage 5 | 2.2 VA |
| Holding power with alternating voltage 50 | 1.6 VA |
| Power consumption | 2.5 watts with DC voltage |
| Protection class | IP 65 |
| Electrical connection | Cable plug EN 175301-803, form C, number of poles 2+PE |
| Thread | G 1/4 |
| Flow rate | 1400 l/min |
| BG | 0 |
| A | 86 mm |
| B | 138 mm |
| C | 93 mm |
| Exhaust air | G 1/4 |
| Class name | MAX |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100405] RIEGLER Sintered bronze silencer, Slot, G 1/4](/web/image/product.template/139839/image_128/%5B100405%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-4?unique=46b9cf9)
|
Type number: 568-2 |
1.54 € | |
![[143010] RIEGLER Coupling package for wall mounting, incl. 2 screws, »FUTURA-mini«](/web/image/product.template/210835/image_128/%5B143010%5D%20RIEGLER%20Coupling%20package%20for%20wall%20mounting%2C%20incl.%202%20screws%2C%20%C2%BBFUTURA-mini%C2%AB?unique=81a845c)
|
Type number: WKM 100 |
3.37 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=f59eacd)
|
Type number: KPM 100 |
2.05 € | |
![[143105] RIEGLER Mounting bracket incl. 2 screws, for »FUTURA-mini«, Size 0](/web/image/product.template/211156/image_128/%5B143105%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=24f3231)
|
Type number: H 848 |
6.28 € | |
![[152077] RIEGLER Wall console with connection thread G 1/4, »FUTURA-mini«, Size 0](/web/image/product.template/210966/image_128/%5B152077%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=684fb7a)
|
Typennummer: WK 100-14 |
29.45 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[154029] RIEGLER Pre-control valve 115 V AC](/web/image/product.template/212548/image_128/%5B154029%5D%20RIEGLER%20Pre-control%20valve%20115%20V%20AC?unique=fb20a83)
|
Typennummer: 400-900-115 |
60.61 € | |
