RIEGLER Twin Autogenous Hose, O2-C2H2, Ø 13.3x6.3, 4 m, Connectors
Part Number: AS.Z.136.4.A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Autogenous twin hose for mobile and stationary use – Type AS.Z.136.4.A
The RIEGLER twin oxy-acetylene hose, O2-C2H2, Ø 13.3x6.3, 4 m, with fittings, connects components flexibly, withstands pressure, and provides a permanently tight seal. The twin hose, compliant with DIN EN ISO 5172, comes fully assembled—with two hose fittings each for the G 1/4 oxygen connection and the G 3/8 LH acetylene connection. The two lines are not bonded together afterward but are co-extruded in a single process: This ensures they remain permanently and securely connected and will not separate even after many years. High flexibility and abrasion resistance ensure a long service life.
Scope of Application
Typical applications: Oxy-fuel hoses, oxy-fuel hoses for welding, and double oxy-fuel hoses in compressed air and pneumatic systems.
| Max. operating pressure | 20 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Soul | NR/SBR |
| Inlays | high-strength textile fabric |
| Bursting pressure | 60 bar |
| Outer ceiling | NR/EPDM |
| Gas type | Oxygen + fuel gas |
| Colour | blue / red |
| Outer hose Ø | 13.3 mm |
| Hose Ø inside | 6.3 mm |
| Roll length | 4 m |
| Bending radius min. | 80 mm |
| Wall thickness | 3.5 mm |
| Thread 1 | G 1/4 FEMALE THREAD |
| Thread 2 | G 3/8 LH IG |
| Class name | FLEX |
| Material connections | Brass |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156069] RIEGLER Autogenous Twin Hose, O2-C2H2, Ø 13.3x6.3, 10 m, Connectors](/web/image/product.template/336337/image_128/%5B156069%5D%20RIEGLER%20Autogenous%20Twin%20Hose%2C%20O2-C2H2%2C%20%C3%98%2013.3x6.3%2C%2010%20m%2C%20Connectors?unique=c7111f6)
|
Part Number: AS.Z.136.10.A |
78.00 € | |
![[156070] RIEGLER Autogenous Twin Hose, O2-C2H2, Ø 13.3x6.3, 15 m, Connectors](/web/image/product.template/336338/image_128/%5B156070%5D%20RIEGLER%20Autogenous%20Twin%20Hose%2C%20O2-C2H2%2C%20%C3%98%2013.3x6.3%2C%2015%20m%2C%20Connectors?unique=c7111f6)
|
Part Number: AS.Z.136.15.A |
102.95 € | |
![[156071] RIEGLER Autogenous Twin Hose, O2-C2H2, Ø 13.3x6.3, 20 m, Connectors](/web/image/product.template/336339/image_128/%5B156071%5D%20RIEGLER%20Autogenous%20Twin%20Hose%2C%20O2-C2H2%2C%20%C3%98%2013.3x6.3%2C%2020%20m%2C%20Connectors?unique=c7111f6)
|
Part Number: AS.Z.136.20.A |
125.96 € | |
![[156072] RIEGLER Autogenous Twin Hose, O2-C2H2, Ø 13.3x6.3, 25 m, Connectors](/web/image/product.template/336340/image_128/%5B156072%5D%20RIEGLER%20Autogenous%20Twin%20Hose%2C%20O2-C2H2%2C%20%C3%98%2013.3x6.3%2C%2025%20m%2C%20Connectors?unique=c7111f6)
|
Part Number: AS.Z.136.25.A |
152.46 € | |
![[156075] RIEGLER Autogenous Twin Hose, O2-C2H2, Ø 13.3x6.3, 40 m, Connectors](/web/image/product.template/336343/image_128/%5B156075%5D%20RIEGLER%20Autogenous%20Twin%20Hose%2C%20O2-C2H2%2C%20%C3%98%2013.3x6.3%2C%2040%20m%2C%20Connectors?unique=c7111f6)
|
Part Number: AS.Z.136.40.A |
249.50 € | |
![[156068] RIEGLER Autogenous Twin Hose, O2-C2H2, Ø 13.3x6.3, 5 m, Connectors](/web/image/product.template/336345/image_128/%5B156068%5D%20RIEGLER%20Autogenous%20Twin%20Hose%2C%20O2-C2H2%2C%20%C3%98%2013.3x6.3%2C%205%20m%2C%20Connectors?unique=c7111f6)
|
Part Number: AS.Z.136.5.A |
46.70 € | |

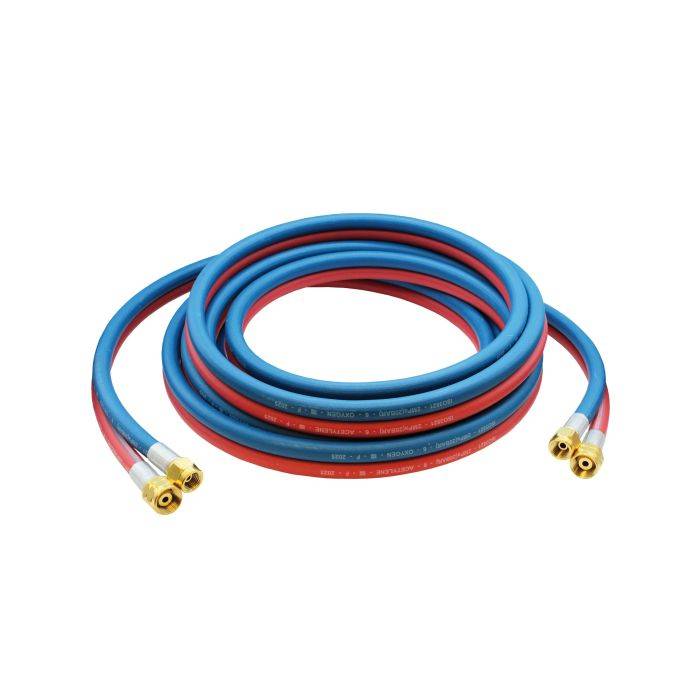

![[156073] RIEGLER Twin Autogenous Hose, O2-C2H2, Ø 13.3x6.3, 30 m, Connectors](/web/image/product.template/336341/image_128/%5B156073%5D%20RIEGLER%20Twin%20Autogenous%20Hose%2C%20O2-C2H2%2C%20%C3%98%2013.3x6.3%2C%2030%20m%2C%20Connectors?unique=c7111f6)
|
