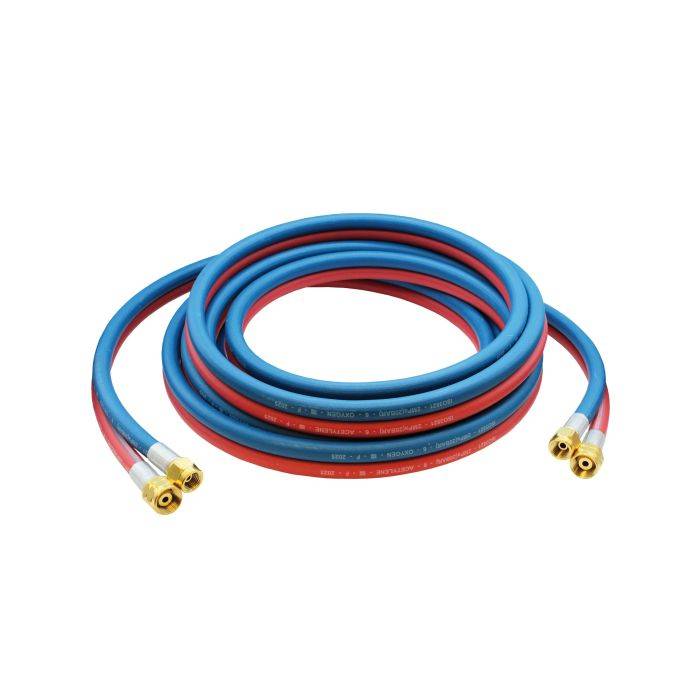

RIEGLER Autogenous Twin Hose, O2-C2H2, Ø 13.3x6.3, 15 m, Connectors
Part Number: AS.Z.136.15.A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Autogenous twin hose for mobile and stationary use – Type AS.Z.136.15.A
The RIEGLER dual-line oxy-acetylene hose, O2-C2H2, Ø 13.3x6.3, 15 m, with fittings, connects components flexibly, withstands pressure, and provides a permanently tight seal. The twin hose, compliant with DIN EN ISO 5172, comes fully assembled—with two hose fittings each for the G 1/4 oxygen connection and the G 3/8 LH acetylene connection. The two lines are not glued together afterward but are co-extruded in a single process: This ensures they remain permanently bonded and will not separate even after many years. High flexibility and abrasion resistance ensure a long service life.
Scope of Application
Typical applications: Oxy-fuel hoses, oxy-fuel hoses for welding, and double oxy-fuel hoses in compressed air and pneumatic systems.
| Max. operating pressure | 20 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 60 °C |
| Soul | NR/SBR |
| Inlays | high-strength textile fabric |
| Bursting pressure | 60 bar |
| Outer ceiling | NR/EPDM |
| Gas type | Oxygen + fuel gas |
| Colour | blue / red |
| Outer hose Ø | 13.3 mm |
| Hose Ø inside | 6.3 mm |
| Roll length | 15 m |
| Bending radius min. | 80 mm |
| Wall thickness | 3.5 mm |
| Thread 1 | G 1/4 FEMALE THREAD |
| Thread 2 | G 3/8 LH IG |
| Class name | FLEX |
| Material connections | Brass |
