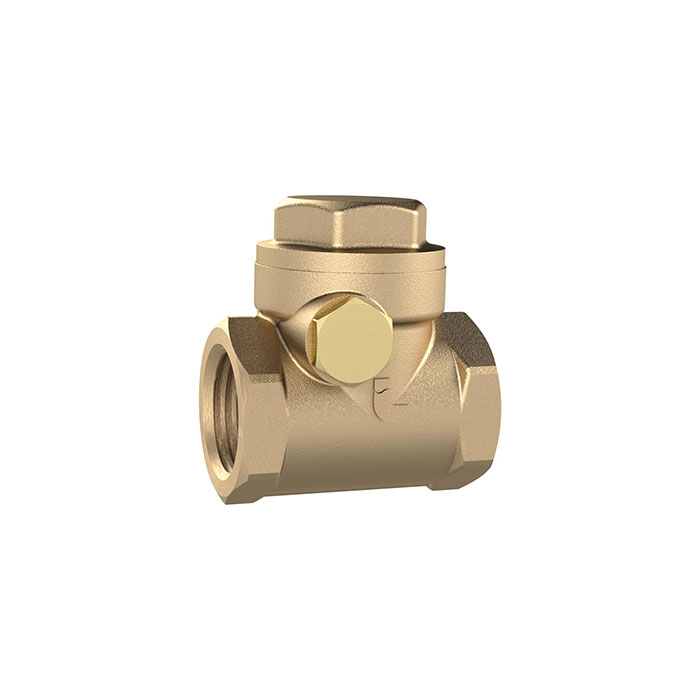

RIEGLER Check valve, DN 20, Brass, G 3/4, PN max. 16 bar
Typennummer: RK34MSE
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass non-return valve, for industrial systems, max. 16 bar - type RK34MSE
The RIEGLER non-return valve, DN 20, brass, G 3/4, PN max. 16 bar regulates or blocks the flow of compressed air and media. The housing is made of brass. Designed for a maximum operating pressure of 16 bar. The operating temperature is between 0 °C and 90 °C. Connection thread G 3/4 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Reliable media control.
Field of application
Typical areas of application: Industrial piping systems.
| Housing | Brass |
| Max. operating pressure | 16 bar |
| Valve disc | Brass |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Thread | G 3/4 |
| DN | 20 |
| SW | 34 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Length | 52 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[158072] RIEGLER Check valve, DN 100, Brass, G 4, PN max. 8 bar](/web/image/product.template/214575/image_128/%5B158072%5D%20RIEGLER%20Check%20valve%2C%20DN%20100%2C%20Brass%2C%20G%204%2C%20PN%20max.%208%20bar?unique=53950bc)
|
Typennummer: RK4MSE |
298.07 € | |
![[158063] RIEGLER Check valve, DN 10, Brass, G 3/8, PN max. 16 bar](/web/image/product.template/214566/image_128/%5B158063%5D%20RIEGLER%20Check%20valve%2C%20DN%2010%2C%20Brass%2C%20G%203-8%2C%20PN%20max.%2016%20bar?unique=3374ba1)
|
Typennummer: RK38MSE |
11.42 € | |
![[158064] RIEGLER Check valve, DN 15, Brass, G 1/2, PN max. 16 bar](/web/image/product.template/214567/image_128/%5B158064%5D%20RIEGLER%20Check%20valve%2C%20DN%2015%2C%20Brass%2C%20G%201-2%2C%20PN%20max.%2016%20bar?unique=e4b959b)
|
Typennummer: RK12MSE |
10.53 € | |
![[158066] RIEGLER Check valve, DN 25, Brass, G 1, PN max. 12 bar](/web/image/product.template/214569/image_128/%5B158066%5D%20RIEGLER%20Check%20valve%2C%20DN%2025%2C%20Brass%2C%20G%201%2C%20PN%20max.%2012%20bar?unique=714ec3d)
|
Typennummer: RK1MSE |
21.53 € | |
![[158067] RIEGLER Check valve, DN 32, Brass, G 1 1/4, PN max. 10 bar](/web/image/product.template/214570/image_128/%5B158067%5D%20RIEGLER%20Check%20valve%2C%20DN%2032%2C%20Brass%2C%20G%201%201-4%2C%20PN%20max.%2010%20bar?unique=bd180ff)
|
Typennummer: RK114MSE |
32.05 € | |
![[158068] RIEGLER Check valve, DN 40, Brass, G 1 1/2, PN max. 10 bar](/web/image/product.template/214571/image_128/%5B158068%5D%20RIEGLER%20Check%20valve%2C%20DN%2040%2C%20Brass%2C%20G%201%201-2%2C%20PN%20max.%2010%20bar?unique=0d4f7df)
|
Typennummer: RK112MSE |
41.78 € | |

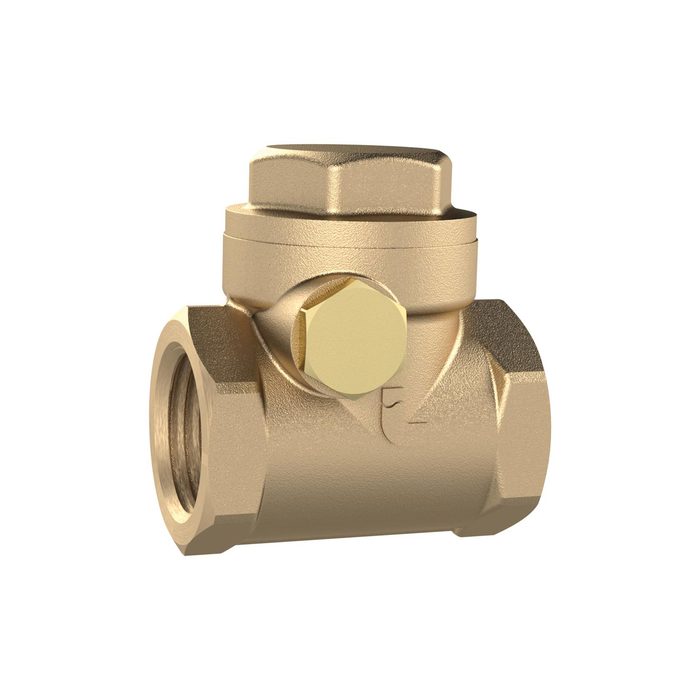

![[158069] RIEGLER Check valve, DN 50, Brass, G 2, PN max. 10 bar](/web/image/product.template/214572/image_128/%5B158069%5D%20RIEGLER%20Check%20valve%2C%20DN%2050%2C%20Brass%2C%20G%202%2C%20PN%20max.%2010%20bar?unique=e66d3db)
|
