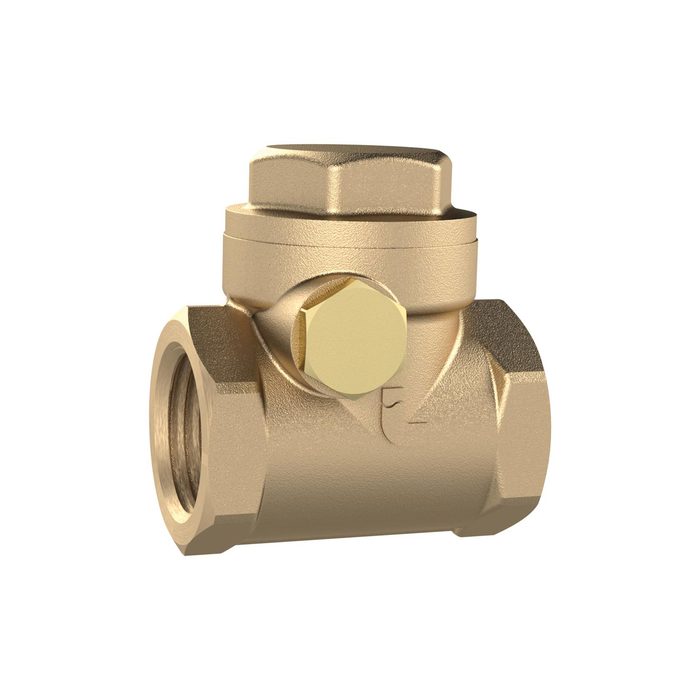

RIEGLER Check valve, DN 40, Brass, G 1 1/2, PN max. 10 bar
Type number: RK112MSE
EAN: 4047322631525
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Non-return valve, DN 40, brass, metal-seated, operating temperature 0 °C to 90 °C, G 1 1/2, PN max. 10 bar
| Housing | Brass |
| Max. operating pressure | 10 bar |
| Valve disc | Brass |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1 1/2 |
| DN | 40 |
| SW | 57 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Length | 81 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
