RIEGLER Adj. 45° screw conn., M18x1.5 i., Pipe ext.Ø 12, galvanised steel
Typennummer: EWAVM1812LST45
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Inst. 45° connection fitting, sealing cone, 360° rotatable, nut M18x1.5 i., pipe outer Ø 12 mm, PN max. 315 bar, galvanized steel.
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 22 mm |
| SW 2 | 17 mm |
| Tube outer Ø | 12 mm |
| PN | 315 bar |
| Female nut thread | M18x1.5 |
| L1 | 32 mm |
| L2 | 29.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

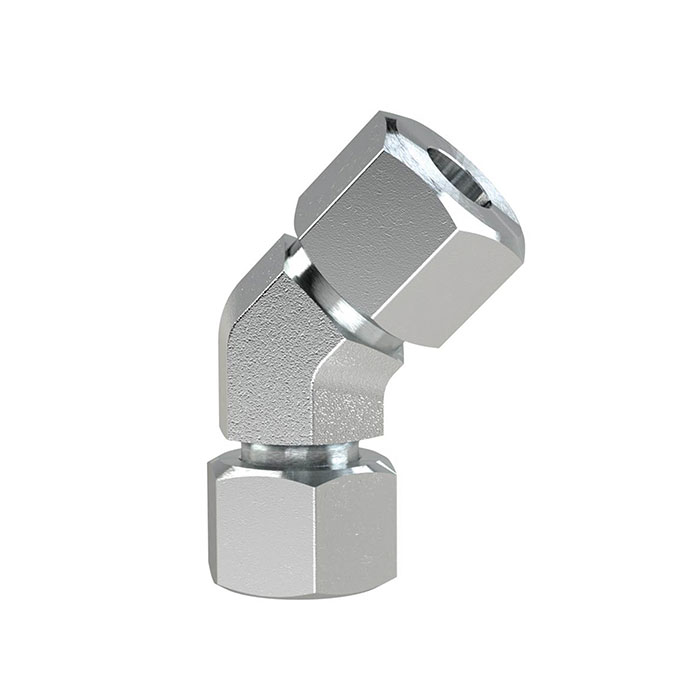

![[158990] RIEGLER Adj. 45° screw conn., M12x1.5 i., Pipe ext.Ø 6, galvanised steel](/web/image/product.template/214860/image_128/%5B158990%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M12x1.5%20i.%2C%20Pipe%20ext.%C3%98%206%2C%20galvanised%20steel?unique=edd8fa6)
|
Typennummer: EWAVM126LST45 |
9.62 € | |
![[158991] RIEGLER Adj. 45° screw conn., M14x1.5 i., Pipe ext.Ø 8, galvanised steel](/web/image/product.template/214861/image_128/%5B158991%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M14x1.5%20i.%2C%20Pipe%20ext.%C3%98%208%2C%20galvanised%20steel?unique=9c0f99e)
|
Typennummer: EWAVM148LST45 |
9.65 € | |
![[158992] RIEGLER Adj. 45° screw conn., M16x1.5 i., Pipe ext.Ø 10, galvanised steel](/web/image/product.template/214862/image_128/%5B158992%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M16x1.5%20i.%2C%20Pipe%20ext.%C3%98%2010%2C%20galvanised%20steel?unique=4184dfa)
|
Typennummer: EWAVM1610LST45 |
10.57 € | |
![[158994] RIEGLER Adj. 45° screw conn., M22x1.5 i., Pipe ext.Ø 15, galvanised steel](/web/image/product.template/214864/image_128/%5B158994%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M22x1.5%20i.%2C%20Pipe%20ext.%C3%98%2015%2C%20galvanised%20steel?unique=57a1dda)
|
Typennummer: EWAVM2215LST45 |
14.61 € | |
![[158995] RIEGLER Adj. 45° screw conn., M26x1.5 i., Pipe ext.Ø 18, galvanised steel](/web/image/product.template/214865/image_128/%5B158995%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M26x1.5%20i.%2C%20Pipe%20ext.%C3%98%2018%2C%20galvanised%20steel?unique=e3aefcc)
|
Typennummer: EWAVM2618LST45 |
21.47 € | |
![[158996] RIEGLER Adj. 45° screw conn., M30x2.0 i., Pipe ext.Ø 22, galvanised steel](/web/image/product.template/214866/image_128/%5B158996%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M30x2.0%20i.%2C%20Pipe%20ext.%C3%98%2022%2C%20galvanised%20steel?unique=e39832a)
|
Typennummer: EWAVM3022LST45 |
29.38 € | |
![[158997] RIEGLER Adj. 45° screw conn., M36x2.0 i., Pipe ext.Ø 28, galvanised steel](/web/image/product.template/214867/image_128/%5B158997%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M36x2.0%20i.%2C%20Pipe%20ext.%C3%98%2028%2C%20galvanised%20steel?unique=ff31435)
|
Typennummer: EWAVM3628LST45 |
45.27 € | |
