RIEGLER Adj. 45° screw conn., M36x2.0 i., Pipe ext.Ø 28, galvanised steel
Typennummer: EWAVM3628LST45
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Inst. 45° connection screw plug M36x2 made of galvanized steel (DIN 2353) - type EWAVM3628LST45
The RIEGLER insert. 45° connection plug M36x2.0 i., pipe Ø 28, galvanized steel connects compressed air and pneumatic lines safely and tightly. The housing is made of galvanized steel (DIN 2353). Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 41 mm |
| SW 2 | 36 mm |
| Tube outer Ø | 28 mm |
| PN | 160 bar |
| Female nut thread | M36x2.0 |
| L1 | 47 mm |
| L2 | 41.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

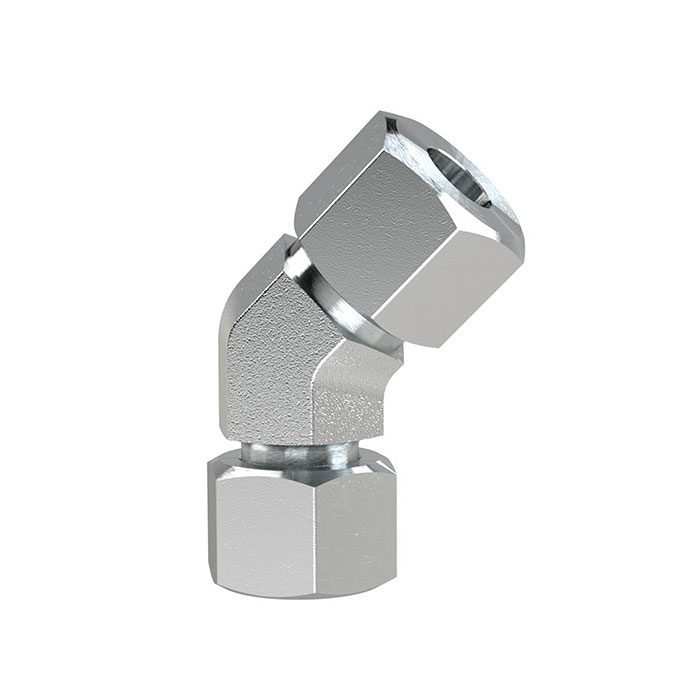

![[158990] RIEGLER Adj. 45° screw conn., M12x1.5 i., Pipe ext.Ø 6, galvanised steel](/web/image/product.template/214860/image_128/%5B158990%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M12x1.5%20i.%2C%20Pipe%20ext.%C3%98%206%2C%20galvanised%20steel?unique=c5690c7)
|
Typennummer: EWAVM126LST45 |
9.62 € | |
![[158991] RIEGLER Adj. 45° screw conn., M14x1.5 i., Pipe ext.Ø 8, galvanised steel](/web/image/product.template/214861/image_128/%5B158991%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M14x1.5%20i.%2C%20Pipe%20ext.%C3%98%208%2C%20galvanised%20steel?unique=8b76c01)
|
Typennummer: EWAVM148LST45 |
9.65 € | |
![[158992] RIEGLER Adj. 45° screw conn., M16x1.5 i., Pipe ext.Ø 10, galvanised steel](/web/image/product.template/214862/image_128/%5B158992%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M16x1.5%20i.%2C%20Pipe%20ext.%C3%98%2010%2C%20galvanised%20steel?unique=6c7e878)
|
Typennummer: EWAVM1610LST45 |
10.57 € | |
![[158993] RIEGLER Adj. 45° screw conn., M18x1.5 i., Pipe ext.Ø 12, galvanised steel](/web/image/product.template/214863/image_128/%5B158993%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M18x1.5%20i.%2C%20Pipe%20ext.%C3%98%2012%2C%20galvanised%20steel?unique=63fd395)
|
Typennummer: EWAVM1812LST45 |
14.43 € | |
![[158994] RIEGLER Adj. 45° screw conn., M22x1.5 i., Pipe ext.Ø 15, galvanised steel](/web/image/product.template/214864/image_128/%5B158994%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M22x1.5%20i.%2C%20Pipe%20ext.%C3%98%2015%2C%20galvanised%20steel?unique=f9df15d)
|
Typennummer: EWAVM2215LST45 |
14.61 € | |
![[158995] RIEGLER Adj. 45° screw conn., M26x1.5 i., Pipe ext.Ø 18, galvanised steel](/web/image/product.template/214865/image_128/%5B158995%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M26x1.5%20i.%2C%20Pipe%20ext.%C3%98%2018%2C%20galvanised%20steel?unique=cd9fc67)
|
Typennummer: EWAVM2618LST45 |
21.47 € | |
![[158996] RIEGLER Adj. 45° screw conn., M30x2.0 i., Pipe ext.Ø 22, galvanised steel](/web/image/product.template/214866/image_128/%5B158996%5D%20RIEGLER%20Adj.%2045%C2%B0%20screw%20conn.%2C%20M30x2.0%20i.%2C%20Pipe%20ext.%C3%98%2022%2C%20galvanised%20steel?unique=510b175)
|
Typennummer: EWAVM3022LST45 |
29.38 € | |
