RIEGLER Swivel nut M16x1.5, Pipe ext. Ø 8 mm, a/f1 19, galvanised steel
Typennummer: UE8SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Union nut M16x1 made of galvanized steel (DIN 2353), for pneumatic installation, M16x1.5 - type UE8SST
The RIEGLER union nut M16x1.5, pipe outer Ø 8 mm, SW1 19, galvanized steel is a high-quality accessory from the RIEGLER range. The housing is made of galvanized steel (DIN 2353). Connection thread M16x1.5 - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Material | Galvanized steel (DIN 2353) |
| Thread | M16x1.5 |
| SW 1 | 19 mm |
| Tube outer Ø | 8 mm |
| PN | 630 bar |
| L1 | 16.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159362] RIEGLER Swivel nut M14x1.5, Pipe ext. Ø 6 mm, a/f1 17, galvanised steel](/web/image/product.template/215193/image_128/%5B159362%5D%20RIEGLER%20Swivel%20nut%20M14x1.5%2C%20Pipe%20ext.%20%C3%98%206%20mm%2C%20a-f1%2017%2C%20galvanised%20steel?unique=f0d3bf5)
|
Typennummer: UE6SST |
0.33 € | |

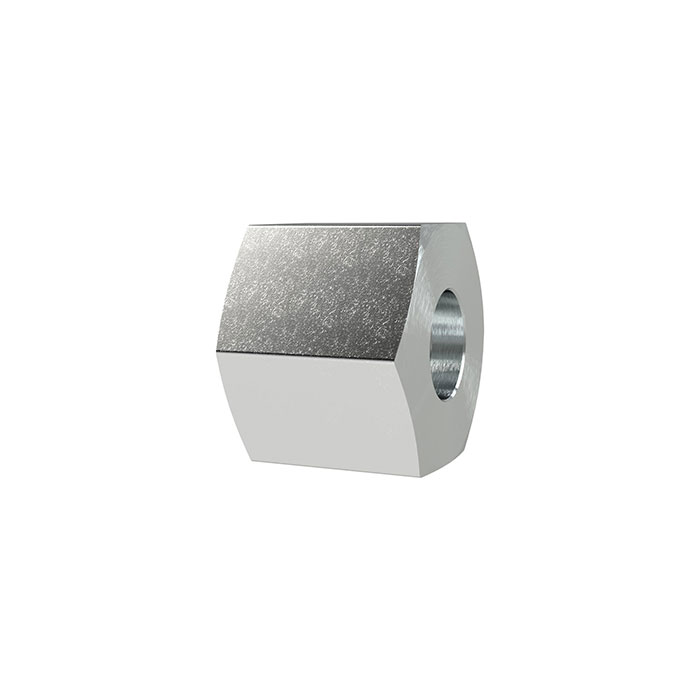

![[159364] RIEGLER Swivel nut, M18x1.5, Pipe ext. Ø 10 mm, a/f1 22, galvanised steel](/web/image/product.template/215195/image_128/%5B159364%5D%20RIEGLER%20Swivel%20nut%2C%20M18x1.5%2C%20Pipe%20ext.%20%C3%98%2010%20mm%2C%20a-f1%2022%2C%20galvanised%20steel?unique=7a3af01)
|
Typennummer: UE10SST |
0.52 € | |
![[159365] RIEGLER Swivel nut M20x1.5, Pipe ext. Ø 12 mm,a/f1 24, galvanised steel](/web/image/product.template/215196/image_128/%5B159365%5D%20RIEGLER%20Swivel%20nut%20M20x1.5%2C%20Pipe%20ext.%20%C3%98%2012%20mm%2Ca-f1%2024%2C%20galvanised%20steel?unique=e45b96d)
|
Typennummer: UE12SST |
0.63 € | |
![[159366] RIEGLER Swivel nut, M22x1.5, Pipe ext. Ø 14 mm, a/f1 27, galvanised steel](/web/image/product.template/215197/image_128/%5B159366%5D%20RIEGLER%20Swivel%20nut%2C%20M22x1.5%2C%20Pipe%20ext.%20%C3%98%2014%20mm%2C%20a-f1%2027%2C%20galvanised%20steel?unique=85c5e76)
|
Typennummer: UE14SST |
0.95 € | |
![[159367] RIEGLER Swivel nut, M24x1.5, Pipe ext. Ø 16 mm, a/f1 30, galvanised steel](/web/image/product.template/215198/image_128/%5B159367%5D%20RIEGLER%20Swivel%20nut%2C%20M24x1.5%2C%20Pipe%20ext.%20%C3%98%2016%20mm%2C%20a-f1%2030%2C%20galvanised%20steel?unique=20176a5)
|
Typennummer: UE16SST |
1.29 € | |
![[159368] RIEGLER Swivel nut, M30x2,0, Pipe ext. Ø 20 mm, a/f1 36, galvanised steel](/web/image/product.template/215199/image_128/%5B159368%5D%20RIEGLER%20Swivel%20nut%2C%20M30x2%2C0%2C%20Pipe%20ext.%20%C3%98%2020%20mm%2C%20a-f1%2036%2C%20galvanised%20steel?unique=6ff0890)
|
Typennummer: UE20SST |
1.95 € | |
![[159369] RIEGLER Swivel nut, M36x2,0, Pipe ext. Ø 25 mm, a/f1 46, galvanised steel](/web/image/product.template/215200/image_128/%5B159369%5D%20RIEGLER%20Swivel%20nut%2C%20M36x2%2C0%2C%20Pipe%20ext.%20%C3%98%2025%20mm%2C%20a-f1%2046%2C%20galvanised%20steel?unique=a513f18)
|
Typennummer: UE25SST |
3.76 € | |
