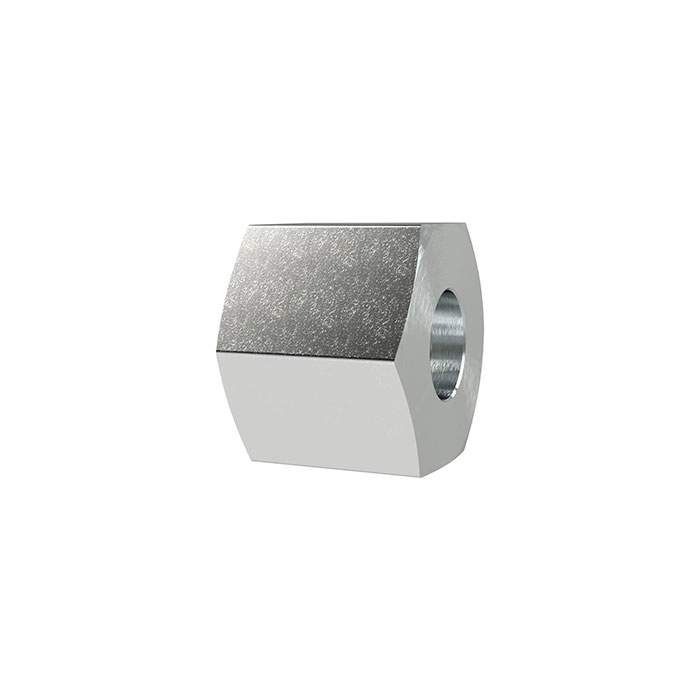

RIEGLER Swivel nut, M30x2,0, Pipe ext. Ø 20 mm, a/f1 36, galvanised steel
Typennummer: UE20SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Galvanized steel union nut (DIN 2353), for pneumatic installation, M30x2.0 - type UE20SST
The RIEGLER union nut, M30x2.0, pipe outer Ø 20 mm, SW1 36, galvanized steel is a high-quality accessory from the RIEGLER range. The housing is made of galvanized steel (DIN 2353). Connection thread M30x2.0 - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Material | Galvanized steel (DIN 2353) |
| Thread | M30x2.0 |
| SW 1 | 36 mm |
| Tube outer Ø | 20 mm |
| PN | 400 bar |
| L1 | 24 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
