Clean air, clear benefits – CFE™ compact filter elements for laser cutting systems
Operators of laser cutting systems in the metalworking industry are familiar with the challenge: the cutting process generates ultra-fine particles and fumes that must be captured reliably and efficiently to protect employees, machinery, and the environment. CFE™ compact filter elements from Filtration Group were developed specifically for this demanding application and have set the standard in dust collection technology for decades.
What are compact filter elements (CFE™)?
CFE™ (Compact Filter Element) units are high-performance filters designed specifically for critical dust collection processes. Clear Edge Filtration—now part of Filtration Group Industrial GmbH—has been a leading manufacturer of this technology for over 30 years, providing solutions for laser cutting, paint line extraction, and mining and tunneling operations.
The design impresses with its compactness: despite their small footprint, CFE™ compact filter elements offer an exceptionally large filtration surface area and handle high volume flows—a decisive advantage for industrial environments where space is at a premium.
Why compact filter elements instead of round elements?
When it comes to dust extraction for laser cutting systems, operators face a fundamental decision: should they use classic cylindrical round elements or compact filter elements (CFE™)? Both technologies have their merits—yet there are compelling arguments in favor of the CFE™ principle for laser cutting applications.
The specific challenges of laser cutting
Laser cutting metals, stainless steel, aluminum, or even plastics generates a complex mixture of ultrafine metal particles, metal oxides, and fumes. These dusts are:
- Extremely fine – a large proportion falls within the sub-micron range
- Sticky and prone to agglomeration – the particles tend to adhere to filter surfaces
- Hazardous to health – chromium and nickel compounds, in particular, require H13 filtration when cutting stainless steel
- Generated in surges – dust loading varies significantly depending on cutting speed and material.
These characteristics place specific demands on the filtration system—and this is where the structural advantage of CFE™ technology over conventional round elements becomes apparent.
CFE™ vs. Cylindrical Elements: A Direct Comparison
Feature Compact Filter Elements CFE™ Cylindrical Element
Filter area Up to 3 x larger for the same unit size Limited by cylindrical shape
Unit size Compact, space-saving (flat panel design) Larger overall volume required
Cleaning Very open pleat design - ideal for jet-pulse cleaning Functional, but less efficient with sticky dusts
Differential pressure Consistently low due to large filter surface Rises more rapidly, especially with fine laser dusts
Service life Significantly longer due to rigid construction Shorter, particularly with high dust loads
and PTFE-Membrane
Installation Simple and fast; installed as a panel without clamping rails More complex; often requires a clamping mechanism
Filter medium PTFE-membrane + polyester fleece, H13-certified Various media; H13 available as a special variant
Why is the panel shape crucial for laser cutting?
Most compact laser cutting systems—such as those from Keller Lufttechnik—feature housings designed for flat filter panels. The CFE™ principle makes optimal use of this installation space: the rectangular panel shape allows for uniform airflow across the entire filter surface without gaps, whereas round elements inevitably leave unused space at the edges of the housing.
Furthermore, the very open pleating of the CFE™ elements ensures that the fine dust generated during laser cutting—which can be sticky—is reliably cleaned off the filter surface by the jet-pulse blast. Round elements are more prone to clogging with this type of dust, causing differential pressure to rise and reducing service life.
The result: fewer filter changes, lower operating costs, and consistently high air quality—even during intensive continuous operation.
Technical features and benefits at a glance
Material and certification
The CFE™ filters for laser cutters are manufactured from polyester fleece with a highly efficient PTFE membrane. The filter medium is H13-certified, meeting the highest standards for filtration efficiency—ensuring clean air even when dealing with the finest laser dust.
Design Strengths
- Up to 3x more filter surface area compared to conventional filter bags
- Self-supporting design—no support cages required
- Extremely robust element head for maximum durability
- Venturi-shaped design for optimal airflow and low differential pressures
- High dimensional stability thanks to continuously bonded pleat tips
- Edge protection for enhanced mechanical stability
Cleaning and Service Life
Thanks to the highly open pleat design, CFE™ elements are easily cleaned using jet-pulse systems—even with challenging dust types generated during laser cutting. This results in consistently low differential pressures and a significantly longer service life compared to conventional filter solutions.
Easy handling
- Simple, quick, and clean installation
- Can be easily retrofitted into existing systems
- Special filter media available for a wide range of applications

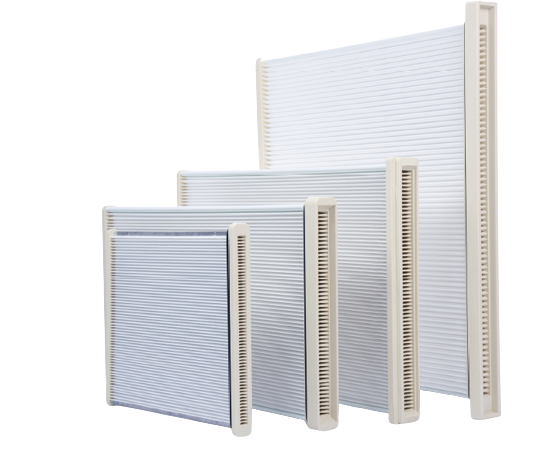

NEW: Filtration Group filter plates for laser cutters
We are pleased to announce a major addition to our product portfolio:
Filtration Group filter plates for laser cutters – now available.
Developed as a cost-effective alternative, these filter plates come in all standard sizes—ranging from the small 800/12 plate for Vario-1 systems and the medium 1200/18 for the Vario-2 system, to large plates for the Vario 3 through 6 series. The 1200/18R and 1500/18R filter plates (clean-gas side installation) for Keller PT systems are also available as CFE™ versions.
Your benefits at a glance
Feature Description
Original Design Manufactured to precise OEM specifications
Optimal Fit Precisely matched to your filter system
H13 Filter medium Highest separation efficiency according to EN 1822
Long service life Thanks to rigid element construction and PTFE membrane
No clamping rails No additional clamping rails required
Lower costs Significantly more cost-effective alternative to OEM filters
With this solution, you benefit from reliable filtration, ease of use, and a cost-effective alternative to OEM spare parts.
Why Filtration Group Industrial?
For over 50 years, Filtration Group Industrial GmbH has been a global leader in manufacturing high-performance systems for filtering fine particles from air and gases. The company’s philosophy is centered on enhancing environmental protection and workplace safety through efficient air purification solutions.
All filter solutions are individually designed to meet specific requirements. State-of-the-art manufacturing technologies—such as cam technology for optimal pleat spacing and up to 44% higher performance—combined with rigorous quality assurance, result in filter elements that excel in both economic and ecological terms.
CONCLUSION: AN INVESTMENT IN CLEANLINESS AND EFFICIENCY
Filtration Group’s CFE™ compact filter elements are the ideal solution for the demanding filtration requirements of modern laser cutting systems. Their combination of maximum filter surface area, high separation efficiency (H13 certified), long service life, and ease of handling makes them a technically and economically superior choice compared to conventional filter bags.
With the newly available Filtration Group filter panels, you now also have a cost-effective, precision-fit alternative at your disposal—without compromising on filtration performance.
Download
Flyer FG_CFE_Laserschneider_DE.pdf
DownloadFlyer FG_CFE_Laser cutters_EN.pdf
DownloadInterested? Get in touch with us!
FILCOM is your authorized partner for Filtration Group products and would be happy to advise you on the right CFE™ elements for your laser cutting system.
