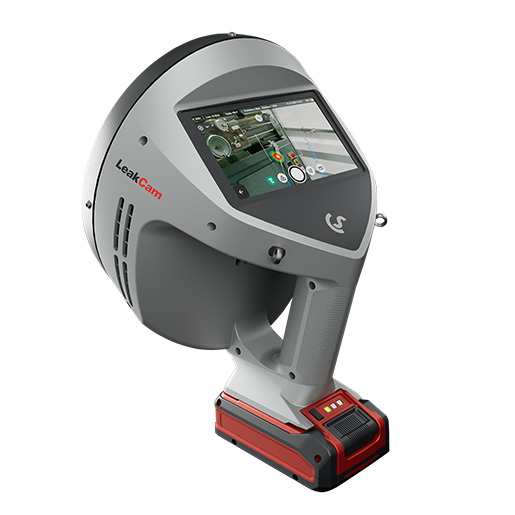

CS INSTRUMENTS LeakCam 600 leak detector for compressed air systems
As a leading manufacturer of compressed air measurement technology, CS INSTRUMENTS stands for highest quality and innovation. "Made in Germany" is our practice - development, production, and calibration take place exclusively in Germany
Leakage camera with 64 MEMS microphones and power beam forming
The CS Instruments LeakCam 600 sets new global standards in leak detection. With 64 MEMS microphones (frequency range 2-80 kHz) and the patented Power Beam Forming Algorithm, this leakage camera detects compressed air leaks at a distance of up to 20 meters - and displays multiple leaks simultaneously. The 5" touchscreen display with 13 MP camera, autofocus and HDR makes ultrasonic leak detection as easy as taking photos.
Features & equipment
The integrated laser distance measurement automatically calculates the leakage rate and annual costs in €/year. The 128 GB data logger stores over 100 million measured values. Li-ion battery for approx. 2.5 h (2 Ah) or 5 h (4 Ah) continuous operation. One-hand operation, USB interface A+C. Paperless leakage report in accordance with ISO 50001.
Application areas
The LeakCam 600 is suitable for regular leak detection in compressed air systems of all sizes - in production halls, for energy audits and for maintenance. We also recommend the Consumption measurement for success control after leakage elimination and a Screen recorder for permanent monitoring. Accessories can also be found at FILCOM.
| Operating temperature (°C) | -5...+50 °C |
| Microphones | Number: 64 MEMS microphones; Frequency range: (1-80 kHz) |
| Measuring range | System pressure: > 50 mbar; Distance: 0.2...50 m; Sensitivity: 2 l/h from 3 m |
| Camera | Resolution: 13 MP; field of view (FOV): 77.3° diagonal, 8x digital zoom, autofocus, high dynamic range (HDR), lighting: 5 LEDs |
| Display | Size: 5″; Resolution: 1280 X 720 pixels; Touchscreen: capacitive; Brightness: adjustable |
| Interface | USB interface A+C |
| Data logger | 128 GB SD memory card (100 million values) |
| Power supply | Internally rechargeable Li-Ion batteries; approx. 2.5 hours continuous operation (2 Ah); approx. 5 hours continuous operation (4 Ah) |
| EMC | DIN EN 61326 |
| Weight (in g) | LeakCam 600 basic device (without battery): 1130 g / 39.85 oz; 18 V 2 Ah, Einhell Power X-Change battery: 400 g / 14.10 oz; 18 V 4 Ah PLUS, Einhell Power X-Change battery: 595 g / 20.9 oz |
| Handling | One-handed or freehand |
