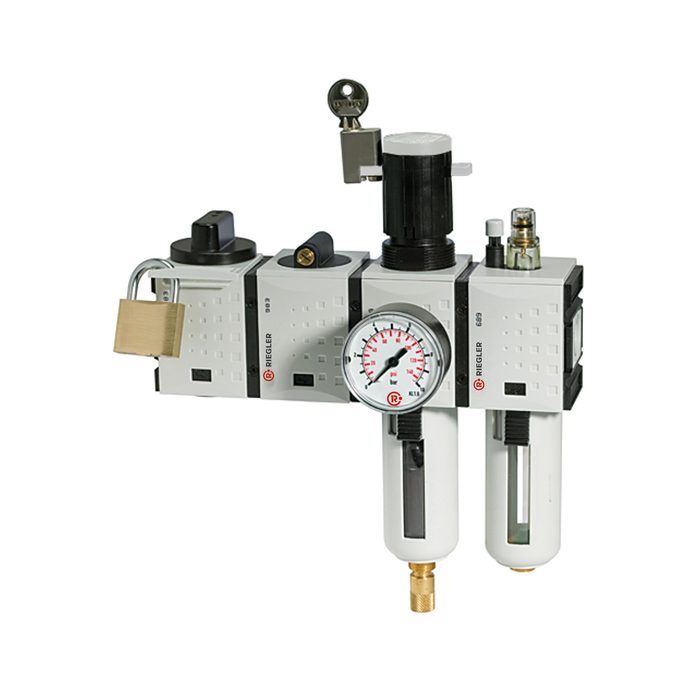

SAFETY FUTURA Maintenance Station, KH-AV 2-piece set, VA, BG 2, G 1/2
Part Number: REDNR112114ES4408
EAN: 4047322246514
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SAFETY "FUTURA" Maintenance Station (Maintenance Unit) made of PA66 GF60, for compressed air treatment – Type FU 1403
The RIEGLER SAFETY “FUTURA” maintenance station, KH-AV-2-piece-WE, VA, BG 2, G 1/2, combines filtration and pressure regulation in a compact, ready-to-connect unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 2.5 bar to 8 bar at a maximum inlet pressure of 16 bar. The permissible medium temperature ranges from -10 °C to 50 °C. G 1/2 connection—compatible with common industry standards. The flow rate is 3,500 l/min. The filter rating is 5 µm. Suitable for compressed air and neutral gases. All components are designed to work together seamlessly and feature a maintenance-friendly design.
Scope of Application
Typical applications: FUTURA maintenance devices, maintenance units, FUTURA, and maintenance devices in compressed air and pneumatic systems.
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1/2 |
| Flow 1 | 3500 l/min |
| Control range max. | 8 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 252 mm |
| B | 273 mm |
| C | 110 mm |
| Vent connection | Silencer (ball valve) |
| Theme shop | SAFETY |
| Class name | MAX |
| Control range min. | 2.5 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100264] Riegler Service station SAFETY »FUTURA«, Size 2, G 1/2](/web/image/product.template/123311/image_128/%5B100264%5D%20Riegler%20Service%20station%20SAFETY%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%201-2?unique=8b8c99c)
|
Type number: FU 1303 |
216.27 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100037] Riegler Plug lock for »FUTURA«, made of nickel-plated brass](/web/image/product.template/118199/image_128/%5B100037%5D%20Riegler%20Plug%20lock%20for%20%C2%BBFUTURA%C2%AB%2C%20made%20of%20nickel-plated%20brass?unique=30dd3ec)
|
Type number: SS 32 |
41.76 € | |
![[100043] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 2](/web/image/product.template/118205/image_128/%5B100043%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=04083eb)
|
Type number: H 852 |
9.71 € | |
![[100044] Riegler Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118206/image_128/%5B100044%5D%20Riegler%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=f0d2619)
|
Type number: WK 102 |
4.87 € | |
![[100046] Riegler Control panel nut M42x1.5, for »FUTURA«, Size 2, G 3/8 and G 1/2](/web/image/product.template/118208/image_128/%5B100046%5D%20Riegler%20Control%20panel%20nut%20M42x1.5%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202%2C%20G%203-8%20and%20G%201-2?unique=4012226)
|
Type number: FU 33-55 |
1.70 € | |
![[100135] RIEGLER Polycarbonate Container with Protective Cage, FUTURA, BG 2, Drain: HA](/web/image/product.template/123200/image_128/%5B100135%5D%20RIEGLER%20Polycarbonate%20Container%20with%20Protective%20Cage%2C%20FUTURA%2C%20BG%202%2C%20Drain:%20HA?unique=05bc7b4)
|
Model number: BSF 12 |
9.81 € | |
![[100136] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 2](/web/image/product.template/123201/image_128/%5B100136%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=7ef7eb4)
|
Type number: MF 12 |
36.38 € | |
![[100138] Metal container with sight glass, for FUTURA, BG 2, drain: VA](/web/image/product.template/123203/image_128/%5B100138%5D%20Metal%20container%20with%20sight%20glass%2C%20for%20FUTURA%2C%20BG%202%2C%20drain:%20VA?unique=c7111f6)
|
Part Number: 847.1210 ES FDA EAN: 4047322215138 |
68.96 € | |
![[100216] Riegler Metal container incl. viewing tube, mist oiler »FUTURA«, Size 2](/web/image/product.template/123263/image_128/%5B100216%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=6143ae5)
|
Type number: ML 12 |
36.38 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100139] 5 µm filter element, Cellpor, for FUTURA, BG 2, G 3/8, and G 1/2](/web/image/product.template/123336/image_128/%5B100139%5D%205%20%C2%B5m%20filter%20element%2C%20Cellpor%2C%20for%20FUTURA%2C%20BG%202%2C%20G%203-8%2C%20and%20G%201-2?unique=c7111f6)
|
Part Number: 848.004 ES FDA EAN: 4047322215145 |
6.88 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=e9f8d74)
|
Type number: KP 200 |
2.45 € | |
![[100214] Riegler Drip cap polycarbonate, »FUTURA« and »FUTURA-mini«, Size 0 - 4](/web/image/product.template/123261/image_128/%5B100214%5D%20Riegler%20Drip%20cap%20polycarbonate%2C%20%C2%BBFUTURA%C2%AB%20and%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%20-%204?unique=8140372)
|
Type number: 901.7.990 |
6.38 € | |
![[100215] RIEGLER Polycarbonate Container, Includes Protective Cage, for FUTURA BG 2 Mist Oiler](/web/image/product.template/123262/image_128/%5B100215%5D%20RIEGLER%20Polycarbonate%20Container%2C%20Includes%20Protective%20Cage%2C%20for%20FUTURA%20BG%202%20Mist%20Oiler?unique=05bc7b4)
|
Model number: BSL 12 |
13.70 € | |
![[100137] RIEGLER Polycarbonate Container with Protective Cage, FUTURA, BG 2, Drain: VA](/web/image/product.template/123202/image_128/%5B100137%5D%20RIEGLER%20Polycarbonate%20Container%20with%20Protective%20Cage%2C%20FUTURA%2C%20BG%202%2C%20Drain:%20VA?unique=05bc7b4)
|
Model number: BSF 12-A |
41.20 € | |
![[100047] Riegler Wear part set for »FUTURA«, size 2, G 3/8 and G 1/2](/web/image/product.template/118209/image_128/%5B100047%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%202%2C%20G%203-8%20and%20G%201-2?unique=275c5c8)
|
Type number: 22.7180.4 |
11.94 € | |
