RIEGLER 3/2-way valve »FUTURA«, electr. actuated, 24 V DC, Size 1, G 1/4
Type number: FU 923
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way valve "FUTURA" made of PA66 GF60, for compressed air preparation, G 1/4 - type FU 923
The RIEGLER 3/2-way valve "FUTURA", electrically actuated, 24 V DC, BG 1, G 1/4 expands maintenance systems modularly with additional functions. The housing is made of PA66 GF60. The maximum inlet pressure is 10 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 2000 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Operating voltage 24V/50Hz, power consumption 2.5 watts with DC voltage, protection class IP 65. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | G 1/4 (NPTF option) |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Duty cycle | 1 |
| Pick-up power with AC voltage 5 | 2.2 VA |
| Holding power with alternating voltage 50 | 1.6 VA |
| Power consumption | 2.5 watts with DC voltage |
| Protection class | IP 65 |
| Electrical connection | Cable plug EN 175301-803, form C, number of poles 2+PE |
| Installation position | Vertical in combination / individual devices as required |
| Lid | School form(R) |
| Head piece | IXEF1022(R) |
| Fastening | Bracket, wall mounting |
| Thread | G 1/4 |
| Flow rate | 2000 l/min |
| Actuation | electropneumatic |
| Type of construction | 3/2 way poppet valve |
| BG | 1 |
| Tension | 24V/50Hz |
| A | 52 mm |
| B | 117.8 mm |
| C | 84.8 mm |
| Venting connection | G 1/4 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Piston | Ms/NBR |
| RoHS material information | RoHS compliant |
| Exhaust air | G 1/4 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| O-ring | NBR |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100295] RIEGLER 3/2-way valve »FUTURA«, electr. actuated, 24 V DC, Size 1, G 3/8](/web/image/product.template/139730/image_128/%5B100295%5D%20RIEGLER%203-2-way%20valve%20%C2%BBFUTURA%C2%AB%2C%20electr.%20actuated%2C%2024%20V%20DC%2C%20Size%201%2C%20G%203-8?unique=14830eb)
|
Type number: FU 924 |
80.55 € | |
![[100297] RIEGLER 3/2-way valve »FUTURA«, electr. actuated, 24 V DC, Size 2, G 1/2](/web/image/product.template/139732/image_128/%5B100297%5D%20RIEGLER%203-2-way%20valve%20%C2%BBFUTURA%C2%AB%2C%20electr.%20actuated%2C%2024%20V%20DC%2C%20Size%202%2C%20G%201-2?unique=53049ac)
|
Type number: FU 964 |
85.82 € | |
![[100296] RIEGLER 3/2-way valve »FUTURA«, electr. actuated, 24 V DC, Size 2, G 3/8](/web/image/product.template/139731/image_128/%5B100296%5D%20RIEGLER%203-2-way%20valve%20%C2%BBFUTURA%C2%AB%2C%20electr.%20actuated%2C%2024%20V%20DC%2C%20Size%202%2C%20G%203-8?unique=e18c246)
|
Type number: FU 963 |
85.82 € | |
![[100299] RIEGLER 3/2-way valve »FUTURA«, electr. actuated, 24 V DC, Size 4, G 1](/web/image/product.template/139734/image_128/%5B100299%5D%20RIEGLER%203-2-way%20valve%20%C2%BBFUTURA%C2%AB%2C%20electr.%20actuated%2C%2024%20V%20DC%2C%20Size%204%2C%20G%201?unique=7875862)
|
Type number: FU 976 |
178.20 € | |

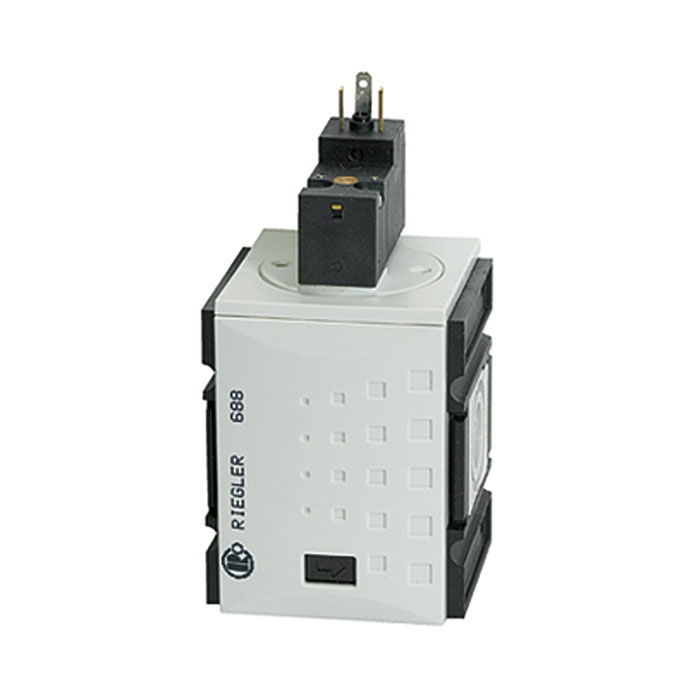

![[100298] RIEGLER 3/2-way valve »FUTURA«, electr. actuated, 24 V DC, Size 4, G 3/4](/web/image/product.template/139733/image_128/%5B100298%5D%20RIEGLER%203-2-way%20valve%20%C2%BBFUTURA%C2%AB%2C%20electr.%20actuated%2C%2024%20V%20DC%2C%20Size%204%2C%20G%203-4?unique=afeff25)
|
