RIEGLER Ball valve 3/2-way »multifix-mini«, lockable, Size 0, G 1/8
Type number: K 05
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve 3/2-way "multifix-mini" made of die-cast zinc, for compressed air preparation, G 1/8 - type K 05
The RIEGLER ball valve 3/2-way "multifix-mini", lockable, BG 0, G 1/8 expands maintenance systems modularly with additional functions. The housing is made of die-cast zinc with NBR seals. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/8 - suitable for common industry standards. The flow rate is 1800 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/8 |
| Flow rate | 1800 l/min |
| Actuation | Toggle 90° rotatable |
| BG | 0 |
| A | 40 mm |
| B | 57.6 mm |
| C | 37.6 mm |
| D | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 1/4 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

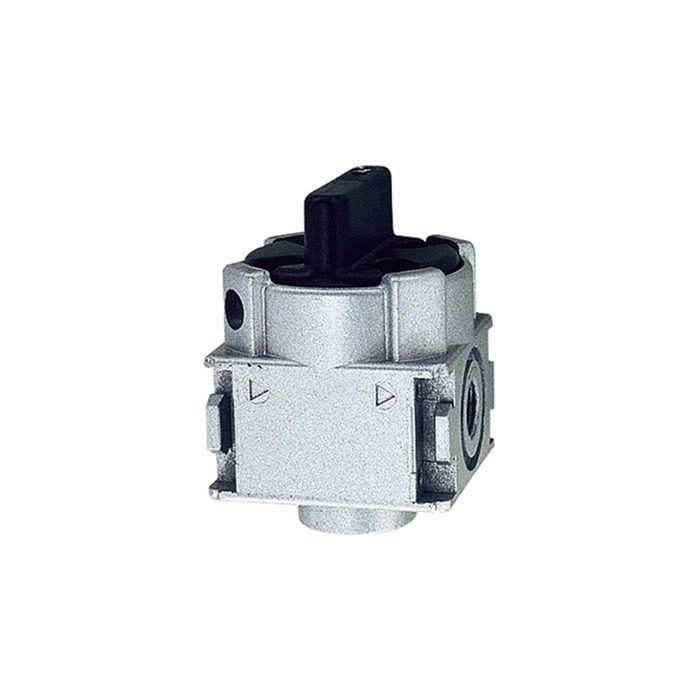

![[100404] RIEGLER Ball valve 3/2-way »multifix-mini«, lockable, Size 0, G 1/4](/web/image/product.template/139838/image_128/%5B100404%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix-mini%C2%AB%2C%20lockable%2C%20Size%200%2C%20G%201-4?unique=8328ac3)
|
