RIEGLER Ball valve 3/2-way »multifix-mini«, lockable, Size 0, G 1/4
Type number: K 06
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve 3/2-way "multifix-mini", lockable, with vent hole, BG 0, G 1/4, ambient medium temp. max. 60 °C
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix-mini |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 1800 l/min |
| Actuation | Toggle 90° rotatable |
| BG | 0 |
| A | 40 mm |
| B | 57.6 mm |
| C | 37.6 mm |
| D | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 1/4 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

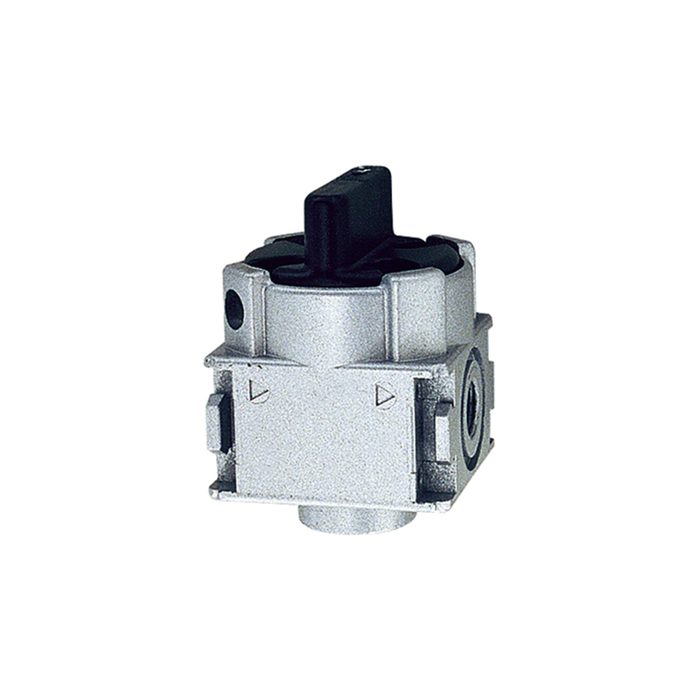

![[100403] RIEGLER Ball valve 3/2-way »multifix-mini«, lockable, Size 0, G 1/8](/web/image/product.template/139837/image_128/%5B100403%5D%20RIEGLER%20Ball%20valve%203-2-way%20%C2%BBmultifix-mini%C2%AB%2C%20lockable%2C%20Size%200%2C%20G%201-8?unique=e6a32f5)
|
