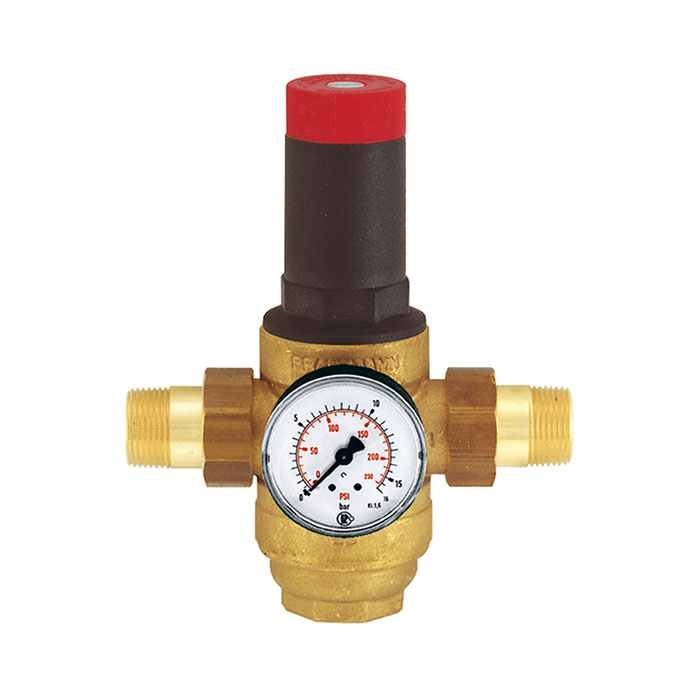

RIEGLER Pressure regulator, potable water, DVGW not nec., R1/2, 1.5-12bar
Type number: 100.11
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator for potable water, DVGW not necessary, incl. pressure gauge, Brass sieve cup, R 1/2, Control range 1.5 - 12 bar
| Inlet pressure max. | 25 bar |
| Medium | Drinking water, nitrogen, compressed air, neutral liquids |
| Housing | Brass |
| Sealing material | NBR |
| Spring cover | Plastic |
| Sieve cup | Brass sieve cup |
| Operating temperature min. | 2 °C |
| Operating temperature max. | 70 °C |
| Thread | R 1/2 |
| Control range min. | 1.5 bar |
| Control range max. | 12 bar |
| Flow rate kvs-value | 2.4 m³/h |
| A | 140 mm |
| B | 152 mm |
| C | 96 mm |
| D | 56 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101374] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1, 0.5-2 bar](/web/image/product.template/169348/image_128/%5B101374%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201%2C%200.5-2%20bar?unique=df85b40)
|
Type number: 100.23 |
367.77 € | |
![[101370] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1 1/2, 1.5-12](/web/image/product.template/169344/image_128/%5B101370%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201%201-2%2C%201.5-12?unique=f6048fd)
|
Type number: 100.15 |
601.85 € | |
![[101369] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1 1/4, 1.5-12](/web/image/product.template/169343/image_128/%5B101369%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201%201-4%2C%201.5-12?unique=59402b6)
|
Type number: 100.14 |
328.32 € | |
![[101368] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1, 1.5-12 bar](/web/image/product.template/169342/image_128/%5B101368%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201%2C%201.5-12%20bar?unique=c6f9793)
|
Type number: 100.13 |
231.84 € | |
![[101372] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1/2, 0.5-2bar](/web/image/product.template/169346/image_128/%5B101372%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201-2%2C%200.5-2bar?unique=9f7531a)
|
Type number: 100.21 |
284.68 € | |
![[101371] RIEGLER Pressure regulator, potable water, DVGW not nec., R 2, 1.5-12 bar](/web/image/product.template/169345/image_128/%5B101371%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%202%2C%201.5-12%20bar?unique=d09ba0a)
|
Type number: 100.16 |
652.13 € | |
![[101373] RIEGLER Pressure regulator, potable water, DVGW not nec., R 3/4, 0.5-2bar](/web/image/product.template/169347/image_128/%5B101373%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%203-4%2C%200.5-2bar?unique=76b6660)
|
Type number: 100.22 |
318.91 € | |
![[101367] RIEGLER Pressure regulator, potable water, DVGW not nec., R3/4, 1.5-12bar](/web/image/product.template/169341/image_128/%5B101367%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R3-4%2C%201.5-12bar?unique=b85f403)
|
Type number: 100.12 |
190.44 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101387] RIEGLER Spanner, for pressure regulator for potable water, R 1/2 to R 2](/web/image/product.template/169361/image_128/%5B101387%5D%20RIEGLER%20Spanner%2C%20for%20pressure%20regulator%20for%20potable%20water%2C%20R%201-2%20to%20R%202?unique=06a3064)
|
Type number: ZR 06 A |
35.39 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=ae20dc8)
|
Type number: 218-KD |
6.30 € | |
![[101384] RIEGLER Brass sieve cup, for pressure reg. potable water, R 1/2 and R 3/4](/web/image/product.template/169358/image_128/%5B101384%5D%20RIEGLER%20Brass%20sieve%20cup%2C%20for%20pressure%20reg.%20potable%20water%2C%20R%201-2%20and%20R%203-4?unique=036de7a)
|
Type number: 100/261 |
42.27 € | |
![[130024] RIEGLER O-ring set, R 1/2, R 3/4, PU 10 pcs.](/web/image/product.template/268290/image_128/%5B130024%5D%20RIEGLER%20O-ring%20set%2C%20R%201-2%2C%20R%203-4%2C%20PU%2010%20pcs.?unique=dc099f4)
|
Type number: 100/281 |
17.14 € | |
![[101378] RIEGLER Replacement sieve, for pressure reg. potable water, R 1/2, R 3/4](/web/image/product.template/169352/image_128/%5B101378%5D%20RIEGLER%20Replacement%20sieve%2C%20for%20pressure%20reg.%20potable%20water%2C%20R%201-2%2C%20R%203-4?unique=be177e4)
|
Type number: 100/221 |
12.53 € | |

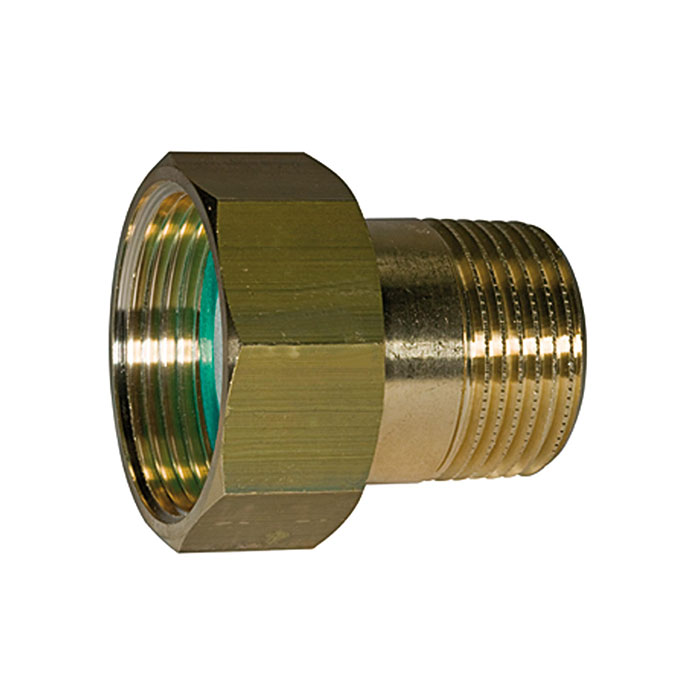

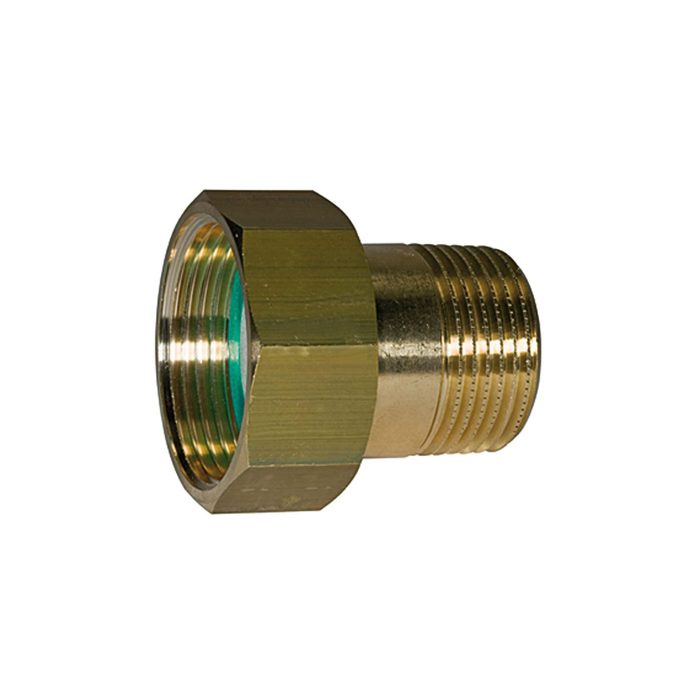

![[101388] RIEGLER Threaded fitting, Connection size 1/2](/web/image/product.template/169362/image_128/%5B101388%5D%20RIEGLER%20Threaded%20fitting%2C%20Connection%20size%201-2?unique=042adf9)
|
Type number: VST06-1/2A |
31.20 € | |

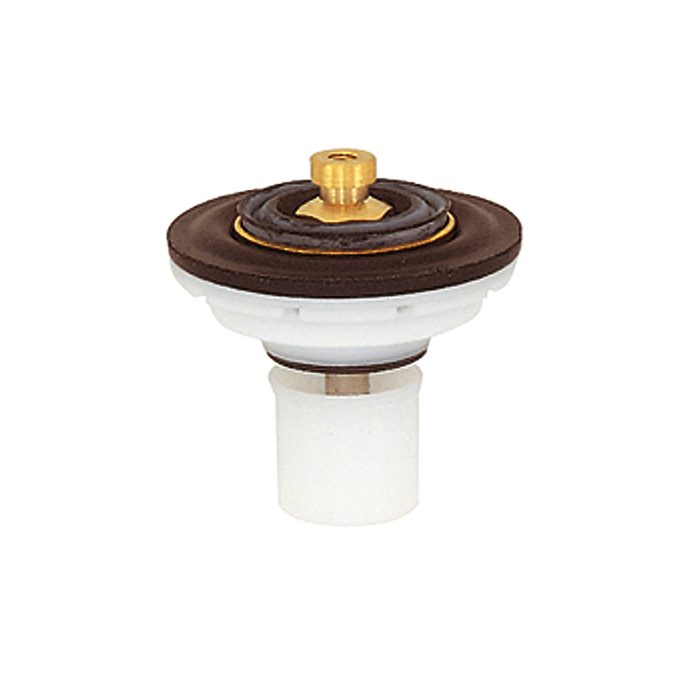

![[101375] RIEGLER Valve replacement set for press. reg. potable water, R 1/2, R 3/4](/web/image/product.template/169349/image_128/%5B101375%5D%20RIEGLER%20Valve%20replacement%20set%20for%20press.%20reg.%20potable%20water%2C%20R%201-2%2C%20R%203-4?unique=3f3e48f)
|
Type number: 100/201 |
81.72 € | |
