RIEGLER Pressure regulator, potable water, DVGW not nec., R 1 1/2, 1.5-12
Type number: 100.15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for drinking water made of brass, for compressed air treatment, 1.5 bar - Type 100.15
The RIEGLER pressure regulator for drinking water, DVGW not required, R 1 1/2, 1.5-12 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of brass with NBR seals. The control range extends from 1.5 bar to 12 bar with a maximum inlet pressure of 25 bar. The operating temperature is between 2 °C and 70 °C. Connection thread R 1 1/2 - suitable for common industry standards. Suitable for drinking water, nitrogen, compressed air, neutral liquids. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 25 bar |
| Medium | Drinking water, nitrogen, compressed air, neutral liquids |
| Housing | Brass |
| Sealing material | NBR |
| Spring cover | Plastic |
| Sieve cup | Brass sieve cup |
| Operating temperature min. | 2 °C |
| Operating temperature max. | 70 °C |
| Thread | R 1 1/2 |
| Control range min. | 1.5 bar |
| Control range max. | 12 bar |
| Flow rate kvs-value | 12.6 m³/h |
| A | 225 mm |
| B | 285 mm |
| C | 172 mm |
| D | 113 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101374] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1, 0.5-2 bar](/web/image/product.template/169348/image_128/%5B101374%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201%2C%200.5-2%20bar?unique=8c9268d)
|
Type number: 100.23 |
367.76 € | |
![[101369] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1 1/4, 1.5-12](/web/image/product.template/169343/image_128/%5B101369%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201%201-4%2C%201.5-12?unique=d8b467b)
|
Type number: 100.14 |
328.31 € | |
![[101368] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1, 1.5-12 bar](/web/image/product.template/169342/image_128/%5B101368%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201%2C%201.5-12%20bar?unique=64fcb84)
|
Type number: 100.13 |
228.66 € | |
![[101372] RIEGLER Pressure regulator, potable water, DVGW not nec., R 1/2, 0.5-2bar](/web/image/product.template/169346/image_128/%5B101372%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%201-2%2C%200.5-2bar?unique=8375098)
|
Type number: 100.21 |
284.68 € | |

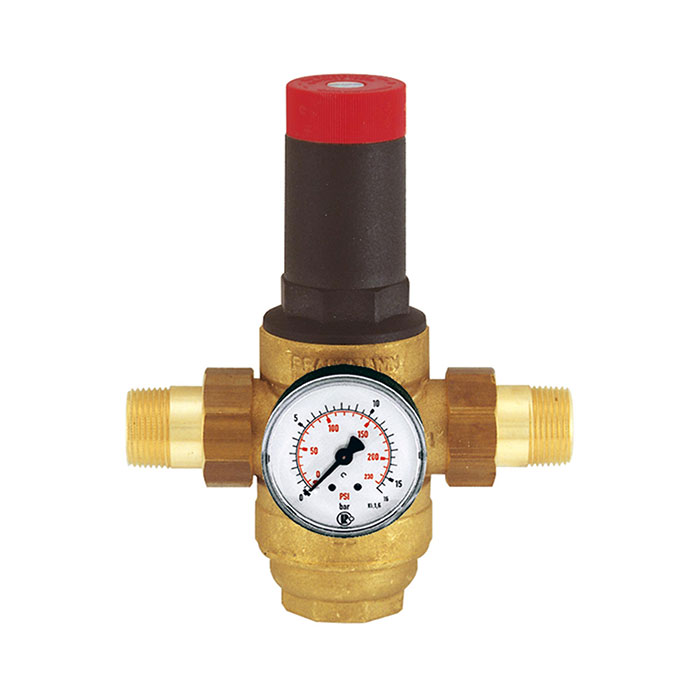

![[101366] RIEGLER Pressure regulator, potable water, DVGW not nec., R1/2, 1.5-12bar](/web/image/product.template/169340/image_128/%5B101366%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R1-2%2C%201.5-12bar?unique=48cbc6d)
|
Type number: 100.11 |
170.60 € | |
![[101371] RIEGLER Pressure regulator, potable water, DVGW not nec., R 2, 1.5-12 bar](/web/image/product.template/169345/image_128/%5B101371%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%202%2C%201.5-12%20bar?unique=1e053d9)
|
Type number: 100.16 |
643.21 € | |

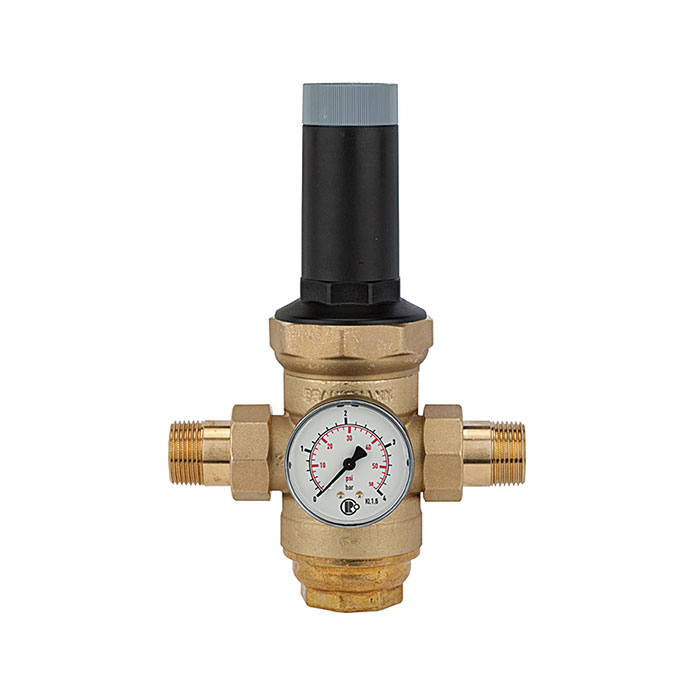

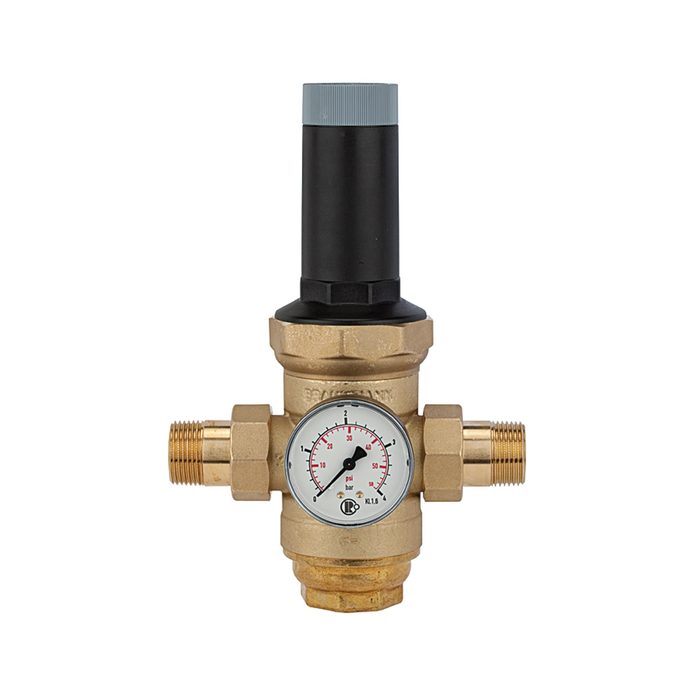

![[101373] RIEGLER Pressure regulator, potable water, DVGW not nec., R 3/4, 0.5-2bar](/web/image/product.template/169347/image_128/%5B101373%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R%203-4%2C%200.5-2bar?unique=9ba62a5)
|
Type number: 100.22 |
314.54 € | |
![[101367] RIEGLER Pressure regulator, potable water, DVGW not nec., R3/4, 1.5-12bar](/web/image/product.template/169341/image_128/%5B101367%5D%20RIEGLER%20Pressure%20regulator%2C%20potable%20water%2C%20DVGW%20not%20nec.%2C%20R3-4%2C%201.5-12bar?unique=d65f339)
|
Type number: 100.12 |
190.44 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101387] RIEGLER Spanner, for pressure regulator for potable water, R 1/2 to R 2](/web/image/product.template/169361/image_128/%5B101387%5D%20RIEGLER%20Spanner%2C%20for%20pressure%20regulator%20for%20potable%20water%2C%20R%201-2%20to%20R%202?unique=06bdf4e)
|
Type number: ZR 06 A |
34.90 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=dca9df3)
|
Type number: 218-KD |
6.25 € | |

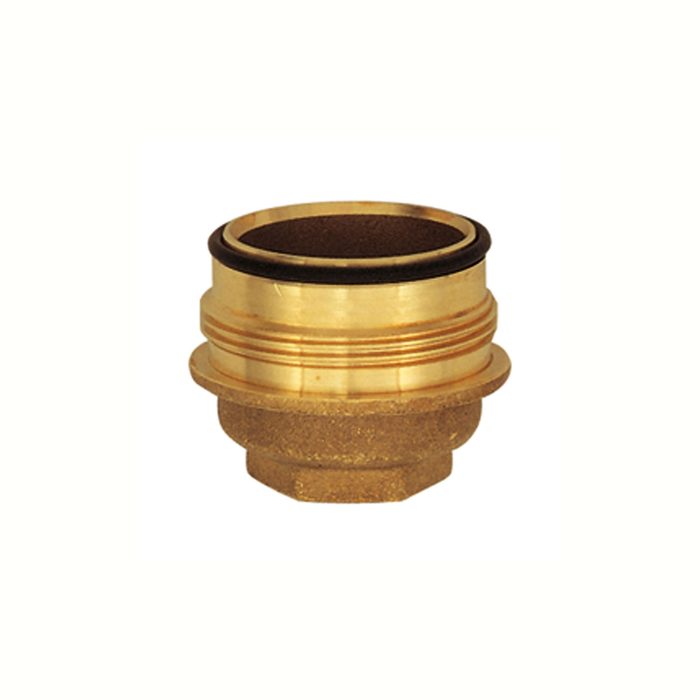

![[101386] RIEGLER Brass sieve cup, for pressure reg. potable water, R 1 1/2 and R 2](/web/image/product.template/169360/image_128/%5B101386%5D%20RIEGLER%20Brass%20sieve%20cup%2C%20for%20pressure%20reg.%20potable%20water%2C%20R%201%201-2%20and%20R%202?unique=1e51413)
|
Type number: 100/263 |
85.07 € | |

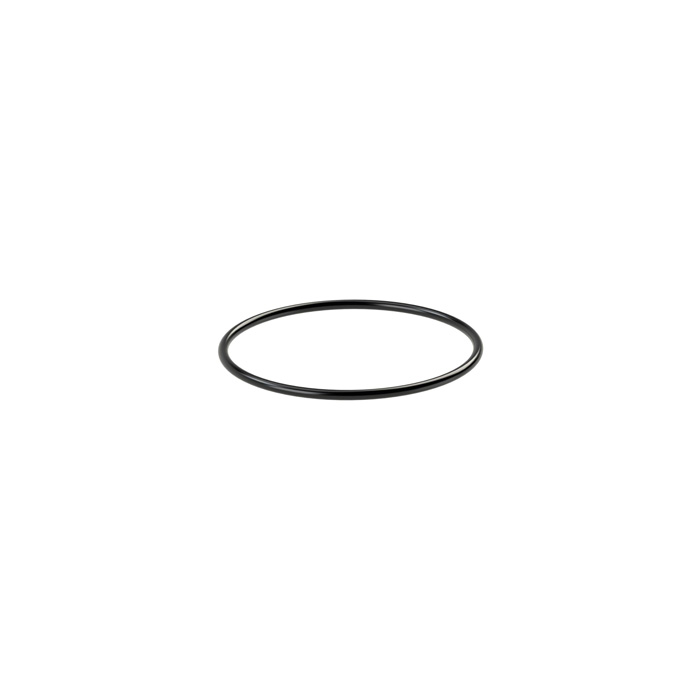

![[130028] RIEGLER O-ring set, R 1 1/2, R 2, PU 10 pcs.](/web/image/product.template/273180/image_128/%5B130028%5D%20RIEGLER%20O-ring%20set%2C%20R%201%201-2%2C%20R%202%2C%20PU%2010%20pcs.?unique=b1d1de1)
|
Type number: 100/283 |
33.47 € | |
![[101380] RIEGLER Replacement sieve, for pressure reg. potable water, R 1 1/2, R 2](/web/image/product.template/169354/image_128/%5B101380%5D%20RIEGLER%20Replacement%20sieve%2C%20for%20pressure%20reg.%20potable%20water%2C%20R%201%201-2%2C%20R%202?unique=7fe3135)
|
Type number: 100/223 |
25.43 € | |

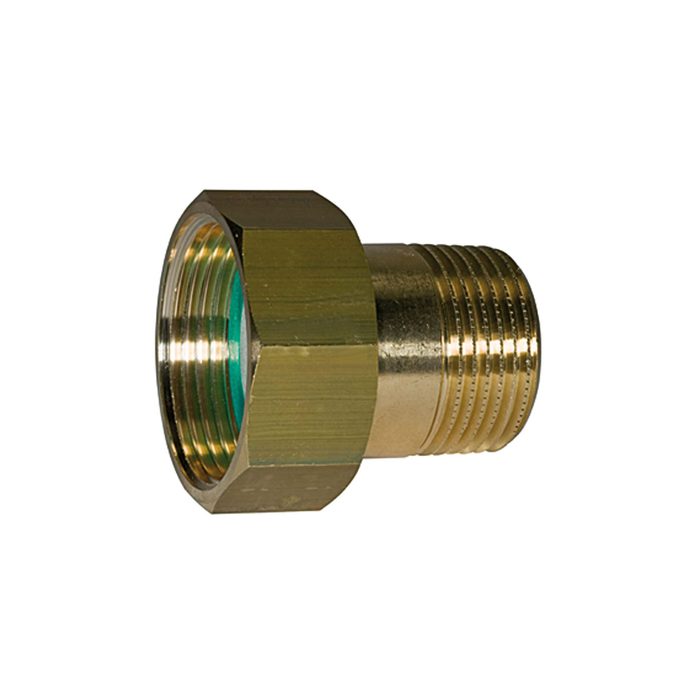

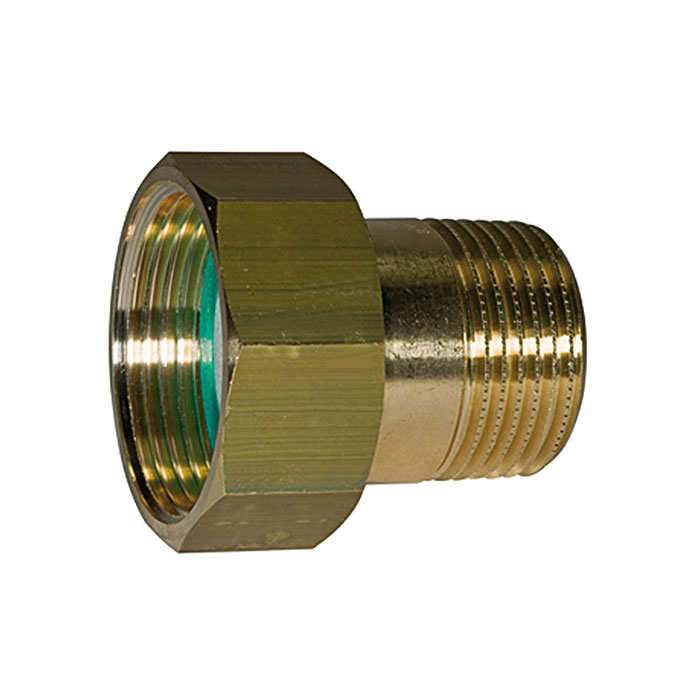

![[101392] RIEGLER Threaded fitting, Connection size 1 1/2](/web/image/product.template/169366/image_128/%5B101392%5D%20RIEGLER%20Threaded%20fitting%2C%20Connection%20size%201%201-2?unique=0e837e5)
|
Type number: VST06-11/2 A |
87.62 € | |

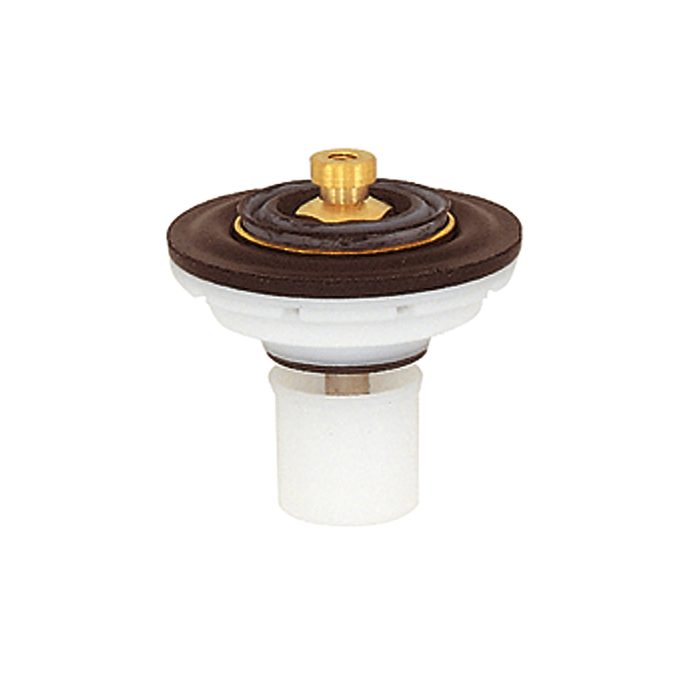

![[101377] RIEGLER Valve replacement set for press. reg. potable water, R 1 1/2, R 2](/web/image/product.template/169351/image_128/%5B101377%5D%20RIEGLER%20Valve%20replacement%20set%20for%20press.%20reg.%20potable%20water%2C%20R%201%201-2%2C%20R%202?unique=532f313)
|
