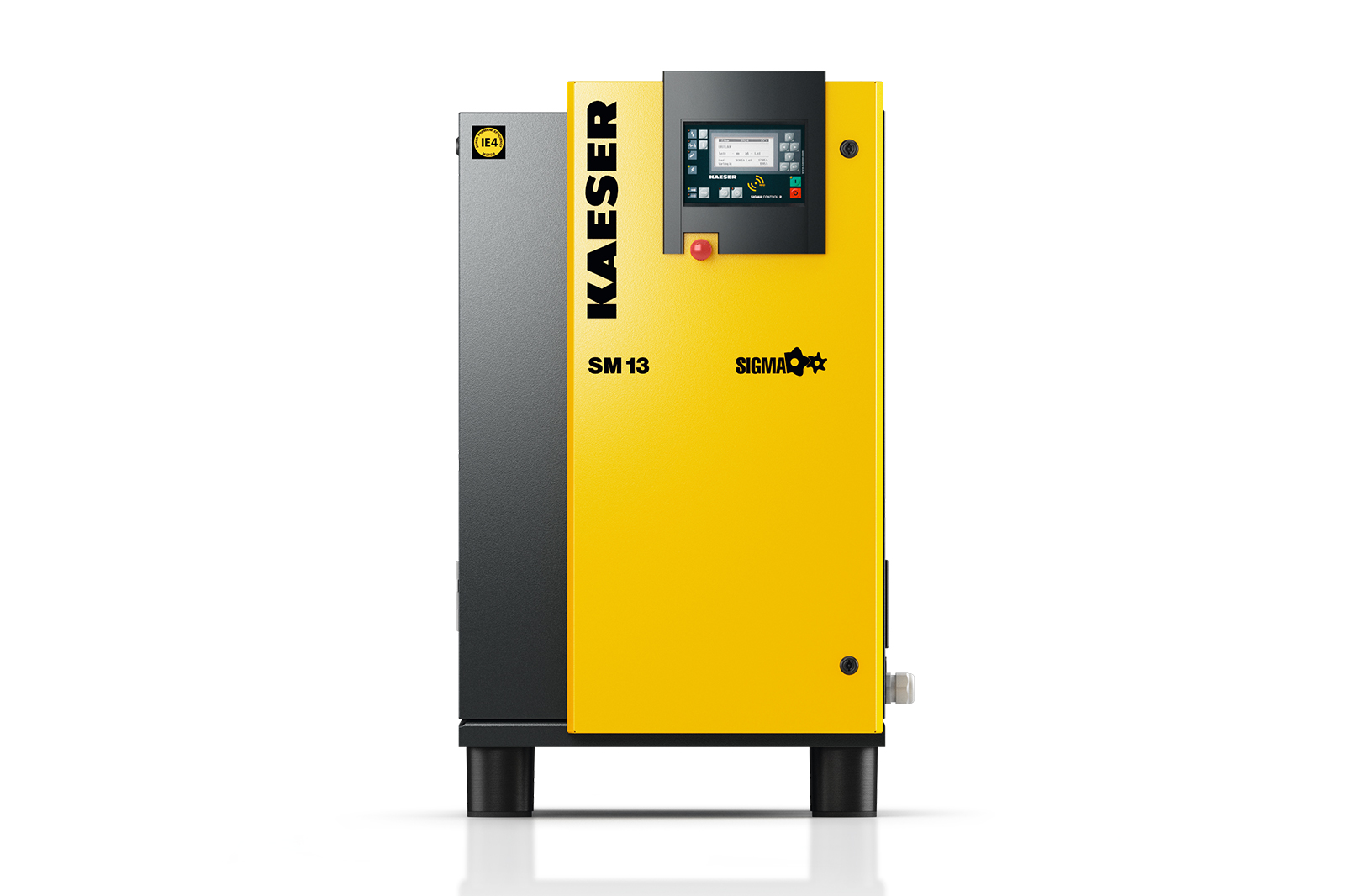

KAESER Screw compressor model SM 10-8 SC2 OAL

Volume flow at overpressure: 0.94 l/min | Maximum overpressure: 8 bar | Rated power of drive motor: 5.5 KW | Electrical connection: 400 V / 3 Ph / 50 Hz

7,892.44 € 7892.4400000000005 EUR 7,892.44 € VAT Included

11,435.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

KAESER Kompressoren SE

KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919

Product no. :

101728.0

Category :

Standard

Weight :

220.00 kg

Delivery area :

Germany

The KAESER SM screw compressor with SIGMA PROFILE and SIGMA CONTROL 2 compressor control unit

Max. Overpressure (bar)	8
Volume flow at overpressure (m³/min)	0,94
Rated power drive motor (kW)	5,5
Drive motor efficiency class	IE3
Permissible pressure loss cooling channel (Pa)	30
Max. usable warm air volume (m³/h)	2100
Max. usable heat output "warm air" (kW)	6,8
Max. usable heat output "warm water" (kW)	4,5
Required supply air opening (m2)	0,2
Drive motor protection class	IP55
Electrical supply	400 V / 3 Ph / 50 Hz
Full load current	12 A
Fuse: Max current	16 A
Cooling fluid filling quantity (litres)	4
Width (mm)	630
Depth (mm)	790
Height (mm)	1100
Weight (kg)	220
Compressed air connection	G 3/4
Sound pressure level (dbA)	62
Model range - Screw compressors	SM \| 5.5 - 9 kW \| Industry

KAESER Betriebsanleitung SM

Download

KAESER Prospekt SM

Download

Variants / Alternatives

Product		Price

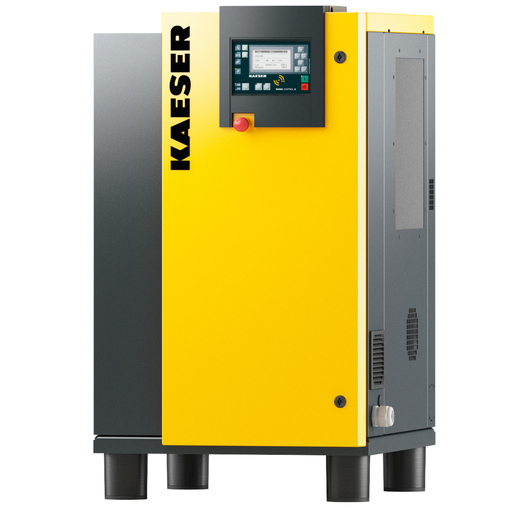

	[101729.0] KAESER Screw compressor model SM 10-11 SC2 OAL Volume flow at overpressure: 0.78 l/min \| Maximum overpressure: 11 bar \| Rated power of drive motor: 5.5 KW \| Electrical connection: 400 V / 3 Ph / 50 Hz	7,892.44 €	Add to cart

Accessoires and suitable extensions

	Price
[5.3390.0] KAESER Oil-water separator model Aquamat CF 3 The KAESER AQUAMAT CF 3 enables legally compliant condensate treatment up to 1.9 m³/min. Save up to 90 % on disposal costs thanks to efficient oil-water separation directly at the point of origin. Performance: Max. 1.9 m³/min (climate zone 2). Certification: DIBt-tested for legally compliant installation. Efficiency: Saves approx. 90 % of disposal costs. Technology: High-performance synthetic fiber filter (no activated carbon). Maintenance: Simple, clean filter change & visual inspection.	505.75 €	Add to cart
[102107.20341] KAESER Extra filter model F9KE G 3/4", ECO-DRAIN 31 Volume flow: 0.90 m³/min \| Residual aerosol content at outlet: < 0.1 mg/m³	680.98 €	Add to cart
KAESER Cyclone separator F9KC	668.48 €	Add to cart

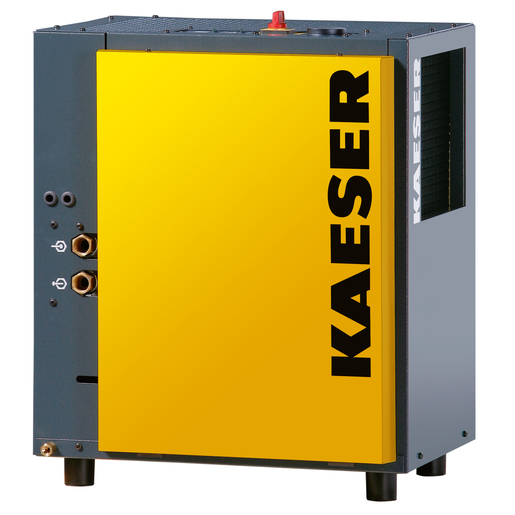

[1.2457.1] KAESER Energy-saving refrigeration dryer model TA 11 SECOTEC Volume flow: 1.25 (m³/min) \| Pressure dew point: 3 (°C) \| Refrigerant: R-513A	2,858.98 €	Add to cart

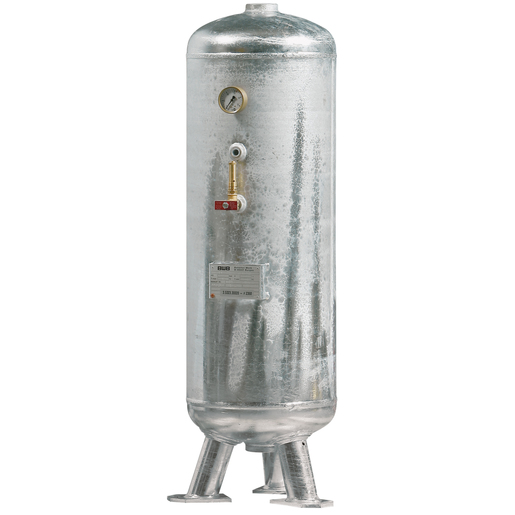

[3.5588.50140] KAESER Compressed air tank 250/11 st. CE/SPV Design: vertical \| Max. Overpressure: 11 bar \| volume compressed air tank: 250 ltr. \| surface coating: galvanized	1,330.42 €	Add to cart
[8.1160.2] KAESER HD-Hose, 3/4x1000 KAESER hose line 1,000 mm HP hose, DL connection, G 3/4 for compressor EPC 550-2-350 St	112.81 €	Add to cart
[8.2278.0] KAESER Ball valve, G3/4, PN25 Ball valve with full bore Internal/external thread G 3/4 x R 3/4 Nominal pressure PN at 30°C: PN 40 recommended max. operating pressure at 65°C: 32 bar recommended max. operating pressure at 75°C: 28 bar	26.06 €	Add to cart

Maintenance, wear and spare parts

Product		Price

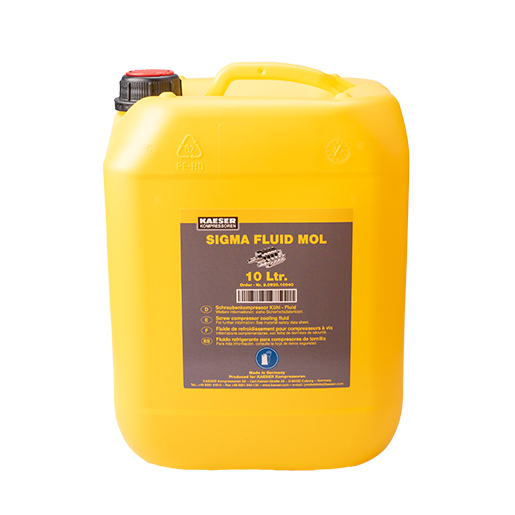

	[9.0920.10040] KAESER Sigma Fluid MOL, 10 ltr. Original KAESER compressor oil for screw compressors	104.72 €	Add to cart
