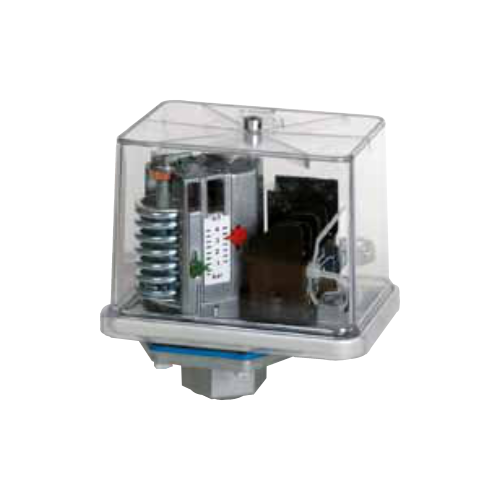

TIVAL Pressure switch FF 4-10 VdS DAI 0,7 - 10 bar
TIVAL pressure switch FF4-10 VdS DAI VdS
max. operating pressure 32 bar
Upper switching point: adjustable 0.7 - 10 bar
Lower switching point: adjustable 0 - 8.5 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology.
TIVAL pressure switch FF 4-10 VdS DAI VdS 1020080
max. operating pressure 32 bar
with perbunan diaphragm
approved for use in permanently installed water extinguishing systems by VdS loss prevention
special differential setting that limits the value to max. 1.5 bar
pressure connection: G 1/2" female thread, DIN ISO 228/1, silumin
for water extinguishing systems
with easy-to-read scale for simple adjustment
large connection chamber
high repeat accuracy
Weitere Informationen siehe unter Technische Daten
For choke, screw connections and hoods, see "Accessories"
| Upper switching point adjustable (bar) | 0,7 ... 10 |
| Lower switching point adjustable (bar) | 0 ... 8,5 |
| small pressure difference (bar) | 0,5 ... 1,5 |
| Max. Operating pressure (bar) | 40 |
| Max. Test pressure (bar) | 40 |
| Factory setting (bar) | 4 / 5 |
| Pressure connection | G1/2" |
Product variants
| Product | Price | ||
|---|---|---|---|
![[1020067] TIVAL Pressure switch FF 4-16 VdS DAI 1 - 16 bar](/web/image/product.template/149321/image_128/%5B1020067%5D%20TIVAL%20Pressure%20switch%20FF%204-16%20VdS%20DAI%201%20-%2016%20bar?unique=98efe92)
|
max. operating pressure 36 bar |
122.90 € | |
![[1020068] TIVAL Pressure switch FF 4-2 VdS DAI 0,5 - 1 bar](/web/image/product.template/149310/image_128/%5B1020068%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20VdS%20DAI%200%2C5%20-%201%20bar?unique=98efe92)
|
max. operating pressure 20 bar |
112.53 € | |
![[1020070] TIVAL Pressure switch FF 4-2 VdS DRI 0,5 - 1 bar Handreset max.](/web/image/product.template/149313/image_128/%5B1020070%5D%20TIVAL%20Pressure%20switch%20FF%204-2%20VdS%20DRI%200%2C5%20-%201%20bar%20Handreset%20max.?unique=98efe92)
|
max. operating pressure 20 bar |
132.61 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=83e23a4)
|
TIVAL hood FF4 |
28.92 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=98efe92)
|
TIVAL throttle FF4-2....32 |
4.09 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=98efe92)
|
TIVAL throttle FF4-12....250 |
9.76 € | |
![[1071004] TIVAL Manometer screw connection H 124 - 114 steel, G 3/8" - G 1/2"](/web/image/product.template/149368/image_128/%5B1071004%5D%20TIVAL%20Manometer%20screw%20connection%20H%20124%20-%20114%20steel%2C%20G%203-8%22%20-%20G%201-2%22?unique=98efe92)
|
TIVAL screw connection H 124-114 |
24.04 € | |
