TIVAL Pressure switch FF 4-10 DAY 0,7 - 10 bar 3/8" polyamide
max. operating pressure 12 bar
Upper switching point: adjustable 0.7 - 10 bar
Lower switching point: adjustable 0.3 - 9.2 bar
The product range of TIVAL Sensors spans across a variety of devices, including those for pressure, level, temperature, flow measurement, as well as drive technology
FF4-10 DAY pressure switch 0.7 - 10 bar - polyamide, for deionized water | Art. 1010073
The TIVAL Pressure switch with Perbunan diaphragm combines reliability and accuracy for industrial pressure monitoring. The upper switching point is adjustable from 0.7 ... 10, the lower switching point is adjustable from 0.3 ... 9.2. Connection: G 3/8" polyamide - robust design in matching material variant. Application range: demineralized water, oil & air - with proven long-term stability. max. operating pressure: 12 bar, medium temperature: up to +70°C. Standards & approvals: VDE 0660, IEC 337-1, IEC 553-1. All settings are clearly visible via the transparent polycarbonate cover. Chokes and cable glands are available as accessories.
| Upper switching point adjustable (bar) | 0,7 ... 10 |
| Lower switching point adjustable (bar) | 0,3 ... 9,2 |
| small pressure difference (bar) | 0,4 0,8 |
| Max. Operating pressure (bar) | 12 |
| Max. Test pressure (bar) | 16 |
| Factory setting (bar) | 4 / 5 |
| Pressure connection | G 3/8" polyamide |
| Model range - Pressure switch | FF 4 / DAY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

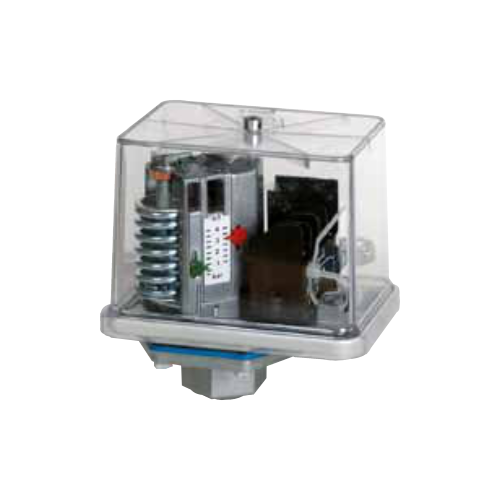

![[1020080] TIVAL Pressure switch FF 4-10 VdS DAI 0,7 - 10 bar](/web/image/product.template/149306/image_128/%5B1020080%5D%20TIVAL%20Pressure%20switch%20FF%204-10%20VdS%20DAI%200%2C7%20-%2010%20bar?unique=b8207d5)
|
TIVAL pressure switch FF4-10 VdS DAI VdS |
121.00 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[1011001] TIVAL Cover for Pressure switch FF 4](/web/image/product.template/149371/image_128/%5B1011001%5D%20TIVAL%20Cover%20for%20Pressure%20switch%20FF%204?unique=4f73d7f)
|
TIVAL hood FF4 |
29.87 € | |
![[1011002] TIVAL Throttle for FF4-2 up to 32 bar](/web/image/product.template/149318/image_128/%5B1011002%5D%20TIVAL%20Throttle%20for%20FF4-2%20up%20to%2032%20bar?unique=4f73d7f)
|
TIVAL throttle FF4-2....32 |
4.19 € | |
![[1011003] TIVAL Throttle for series FF4-60 up to 250](/web/image/product.template/149367/image_128/%5B1011003%5D%20TIVAL%20Throttle%20for%20series%20FF4-60%20up%20to%20250?unique=4f73d7f)
|
TIVAL throttle FF4-12....250 |
10.35 € | |
![[1011004] TIVAL Fitting FF 4 490 M 20 13](/web/image/product.template/149369/image_128/%5B1011004%5D%20TIVAL%20Fitting%20FF%204%20490%20M%2020%2013?unique=4f73d7f)
|
TIVAL screw connection M 20 for protection class IP 65 |
5.00 € | |
![[1011007] TIVAL Nut FF 4 490 M 20](/web/image/product.template/149370/image_128/%5B1011007%5D%20TIVAL%20Nut%20FF%204%20490%20M%2020?unique=4f73d7f)
|
TIVAL nut M 20 for protection class IP 65 |
2.26 € | |
![[1071004] TIVAL Manometer screw connection H 124 - 114 steel, G 3/8" - G 1/2"](/web/image/product.template/149368/image_128/%5B1071004%5D%20TIVAL%20Manometer%20screw%20connection%20H%20124%20-%20114%20steel%2C%20G%203-8%22%20-%20G%201-2%22?unique=4f73d7f)
|
TIVAL screw connection H 124-114 |
25.47 € | |
