RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 0.7 mm
Type number: SBP 07
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Basic ejector "SBP" made of plastic (impact-resistant), for vacuum technology, max. 4.5 bar - type SBP 07
The RIEGLER basic ejector "SBP", silencer, nozzle size 0.7 mm generates or uses vacuum for handling and automation tasks. The housing is made of plastic (impact-resistant). Designed for a maximum operating pressure of 4.5 bar. Connection thread push-in connector - suitable for common industry standards. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Housing | Plastic (impact-resistant) |
| Max. operating pressure | 4.5 bar |
| Silencer | Plastic |
| Height | 28 mm |
| Width | 10 mm |
| Length | 71 mm |
| Connection | push in connector |
| Nozzle size | 0.7 mm |
| Compressed air connection | 4 mm |
| Vacuum connection | 4 mm |
| Evacuation level | 0.85 |
| Suction capacity max. | 16 l/min |
| Air consumption suction | 22 l/min |
| Weight | 7.5 g |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108378] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 0.5 mm](/web/image/product.template/192275/image_128/%5B108378%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%200.5%20mm?unique=11ba939)
|
Type number: SBP 05 |
37.83 € | |
![[108381] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 1.5 mm](/web/image/product.template/192278/image_128/%5B108381%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%201.5%20mm?unique=5c42306)
|
Type number: SBP 15 |
44.59 € | |
![[108380] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 1 mm](/web/image/product.template/192277/image_128/%5B108380%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%201%20mm?unique=cb02583)
|
Type number: SBP 10 |
41.19 € | |
![[108383] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 2.5 mm](/web/image/product.template/192280/image_128/%5B108383%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%202.5%20mm?unique=4527cdd)
|
Type number: SBP 25 |
114.73 € | |
![[108382] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 2 mm](/web/image/product.template/192279/image_128/%5B108382%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%202%20mm?unique=0e370e2)
|
Type number: SBP 20 |
105.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[108384] RIEGLER Base plate for basic ejector »SBP«, for all sizes](/web/image/product.template/192281/image_128/%5B108384%5D%20RIEGLER%20Base%20plate%20for%20basic%20ejector%20%C2%BBSBP%C2%AB%2C%20for%20all%20sizes?unique=6892e24)
|
Type number: SBP 511 |
21.41 € | |
![[108385] RIEGLER Mounting sets (rails) for »SBP« basic ejectors, for all sizes](/web/image/product.template/192282/image_128/%5B108385%5D%20RIEGLER%20Mounting%20sets%20%28rails%29%20for%20%C2%BBSBP%C2%AB%20basic%20ejectors%2C%20for%20all%20sizes?unique=6a6c92a)
|
Type number: SBP 769 |
11.44 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

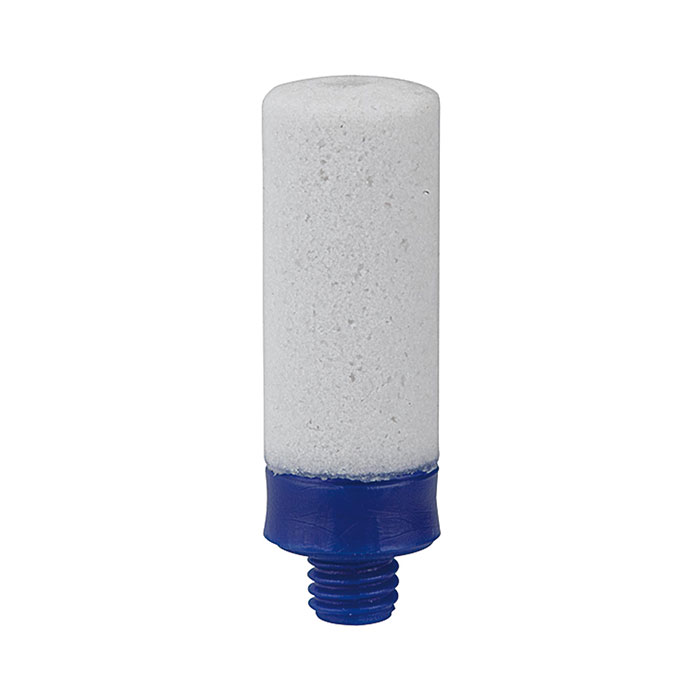

![[108386] RIEGLER Replacement silencer for basic ejector »SBP«](/web/image/product.template/192283/image_128/%5B108386%5D%20RIEGLER%20Replacement%20silencer%20for%20basic%20ejector%20%C2%BBSBP%C2%AB?unique=a3082b5)
|
Type number: SBPC 539 |
7.72 € | |
