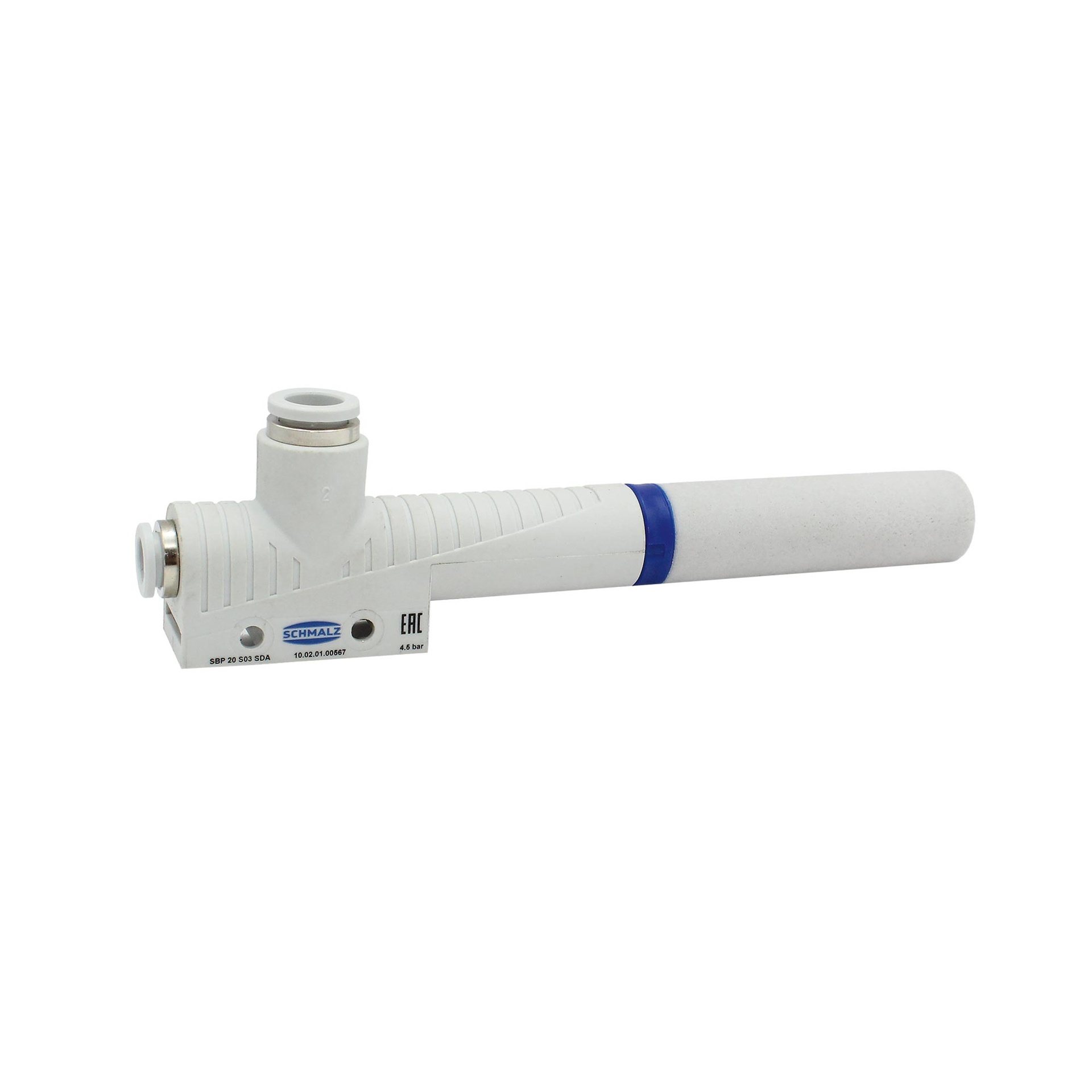

RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 2.5 mm
Type number: SBP 25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Basic ejector "SBP", high vacuum, silencer, nozzle size 2.5 mm, compressed air/vacuum connection 8/10 mm, PN max. 4.5 bar
| Housing | Plastic (impact-resistant) |
| Max. operating pressure | 4.5 bar |
| Silencer | Plastic |
| Height | 46 mm |
| Width | 20 mm |
| Length | 168 mm |
| Connection | push in connector |
| Nozzle size | 2.5 mm |
| Compressed air connection | 8 mm |
| Vacuum connection | 10 mm |
| Evacuation level | 0.85 |
| Suction capacity max. | 215 l/min |
| Air consumption suction | 311 l/min |
| Weight | 50 g |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108378] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 0.5 mm](/web/image/product.template/192275/image_128/%5B108378%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%200.5%20mm?unique=6b908ab)
|
Type number: SBP 05 |
37.83 € | |
![[108379] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 0.7 mm](/web/image/product.template/192276/image_128/%5B108379%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%200.7%20mm?unique=62627c2)
|
Type number: SBP 07 |
39.09 € | |
![[108381] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 1.5 mm](/web/image/product.template/192278/image_128/%5B108381%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%201.5%20mm?unique=9b31de0)
|
Type number: SBP 15 |
44.59 € | |
![[108380] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 1 mm](/web/image/product.template/192277/image_128/%5B108380%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%201%20mm?unique=a24a420)
|
Type number: SBP 10 |
41.19 € | |
![[108382] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 2 mm](/web/image/product.template/192279/image_128/%5B108382%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%202%20mm?unique=e9994f3)
|
Type number: SBP 20 |
105.07 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

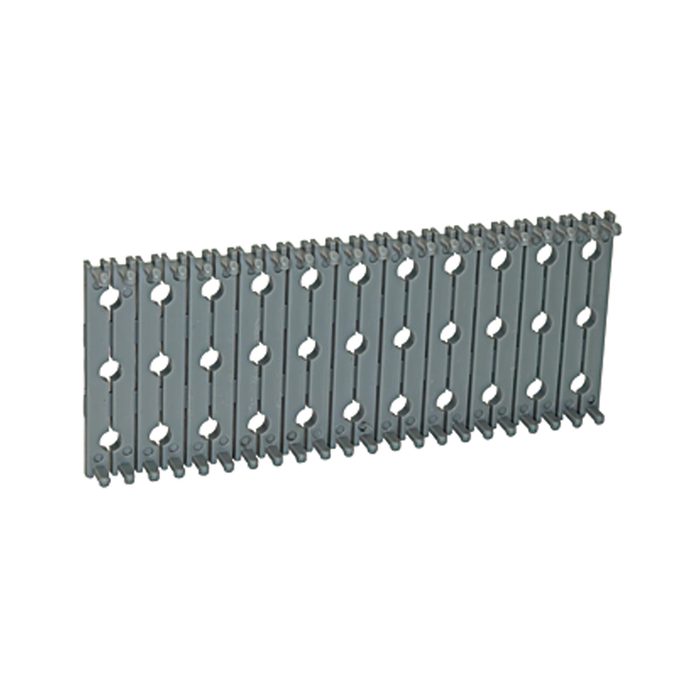

![[108384] RIEGLER Base plate for basic ejector »SBP«, for all sizes](/web/image/product.template/192281/image_128/%5B108384%5D%20RIEGLER%20Base%20plate%20for%20basic%20ejector%20%C2%BBSBP%C2%AB%2C%20for%20all%20sizes?unique=6cee6fd)
|
Type number: SBP 511 |
21.41 € | |

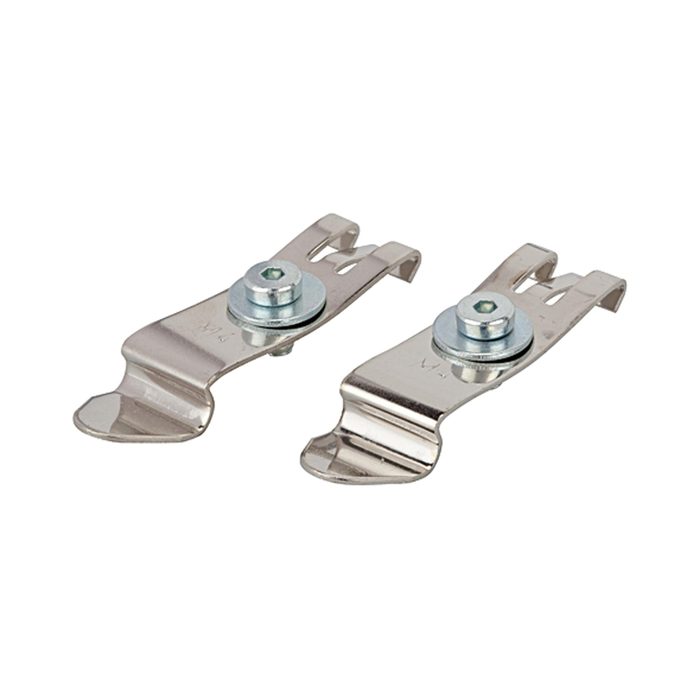

![[108385] RIEGLER Mounting sets (rails) for »SBP« basic ejectors, for all sizes](/web/image/product.template/192282/image_128/%5B108385%5D%20RIEGLER%20Mounting%20sets%20%28rails%29%20for%20%C2%BBSBP%C2%AB%20basic%20ejectors%2C%20for%20all%20sizes?unique=3b95a64)
|
Type number: SBP 769 |
11.44 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

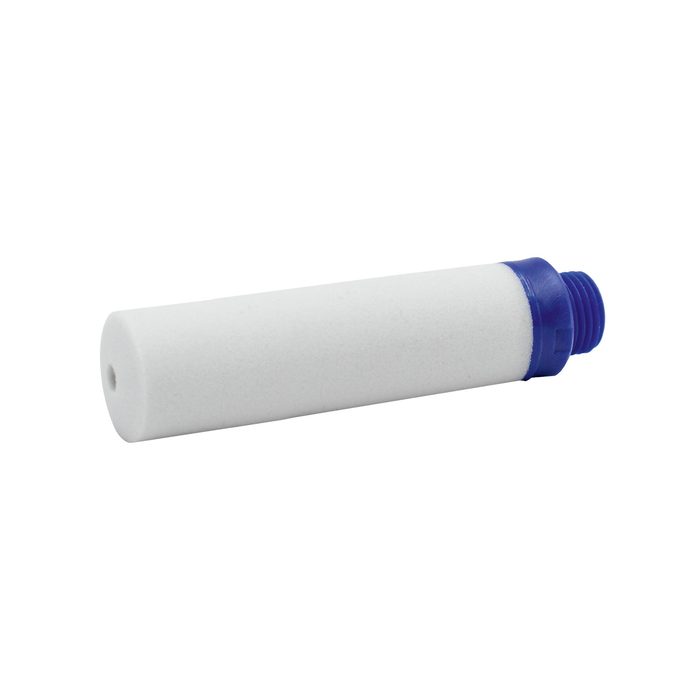

![[108388] RIEGLER Replacement silencer for basic ejector »SBP« and »SBPC«](/web/image/product.template/192285/image_128/%5B108388%5D%20RIEGLER%20Replacement%20silencer%20for%20basic%20ejector%20%C2%BBSBP%C2%AB%20and%20%C2%BBSBPC%C2%AB?unique=6c07a78)
|
Type number: SBPC 719 |
9.65 € | |
