RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 2 mm
Type number: SBP 20
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Basic ejector "SBP" made of plastic (impact-resistant), for vacuum technology, max. 4.5 bar - type SBP 20
The RIEGLER basic ejector "SBP", silencer, nozzle size 2.0 mm generates or uses vacuum for handling and automation tasks. The housing is made of plastic (impact-resistant). Designed for a maximum operating pressure of 4.5 bar. Connection thread push-in connector - suitable for common industry standards. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Housing | Plastic (impact-resistant) |
| Max. operating pressure | 4.5 bar |
| Silencer | Plastic |
| Height | 46 mm |
| Width | 20 mm |
| Length | 168 mm |
| Connection | push in connector |
| Nozzle size | 2 mm |
| Compressed air connection | 8 mm |
| Vacuum connection | 10 mm |
| Evacuation level | 0.85 |
| Suction capacity max. | 127 l/min |
| Air consumption suction | 197 l/min |
| Weight | 50 g |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108378] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 0.5 mm](/web/image/product.template/192275/image_128/%5B108378%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%200.5%20mm?unique=11ba939)
|
Type number: SBP 05 |
37.83 € | |
![[108379] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 0.7 mm](/web/image/product.template/192276/image_128/%5B108379%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%200.7%20mm?unique=3b16a97)
|
Type number: SBP 07 |
39.09 € | |
![[108381] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 1.5 mm](/web/image/product.template/192278/image_128/%5B108381%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%201.5%20mm?unique=5c42306)
|
Type number: SBP 15 |
44.59 € | |

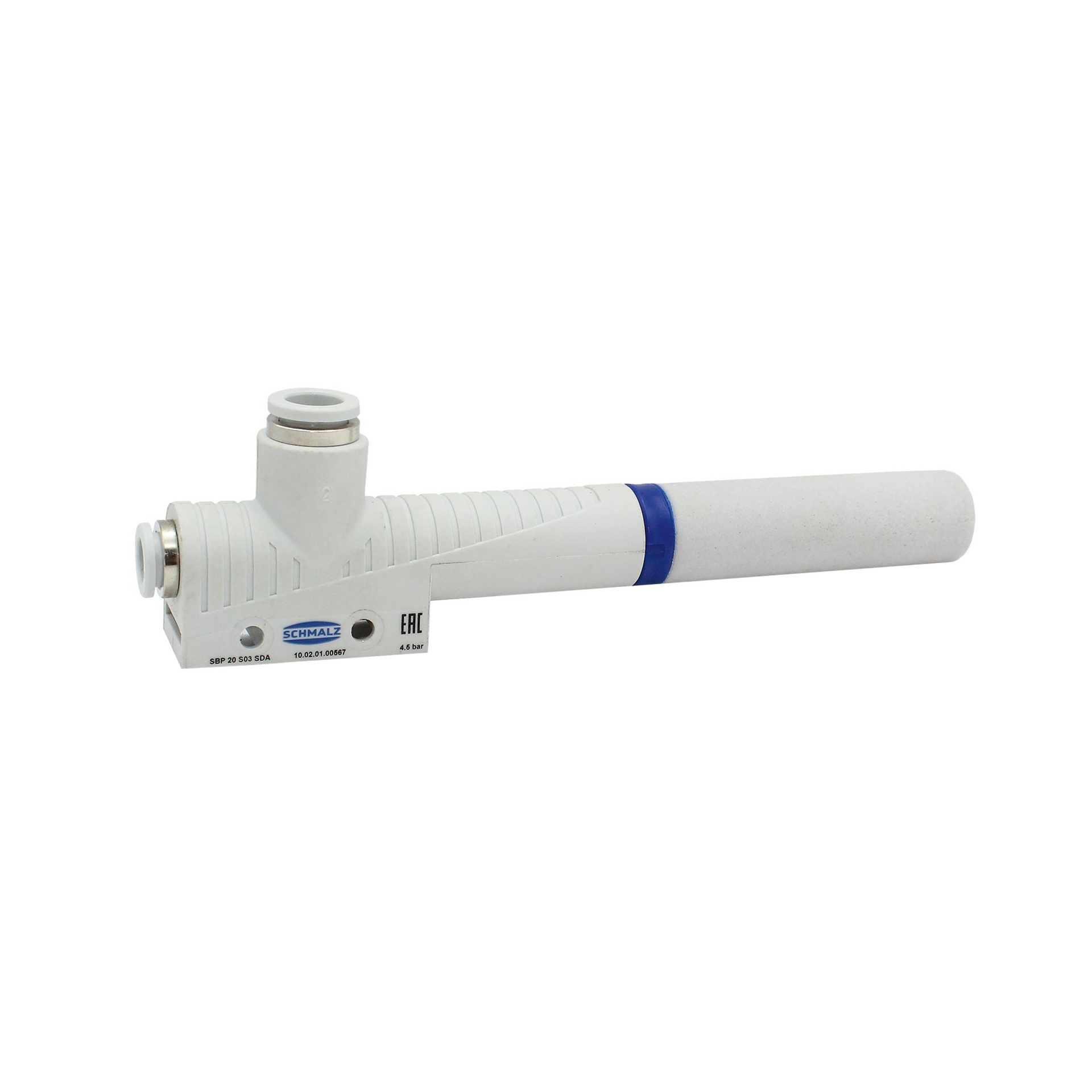

![[108380] RIEGLER Basic ejector »SBP«, Silencer, Nozzle size 1 mm](/web/image/product.template/192277/image_128/%5B108380%5D%20RIEGLER%20Basic%20ejector%20%C2%BBSBP%C2%AB%2C%20Silencer%2C%20Nozzle%20size%201%20mm?unique=cb02583)
|
