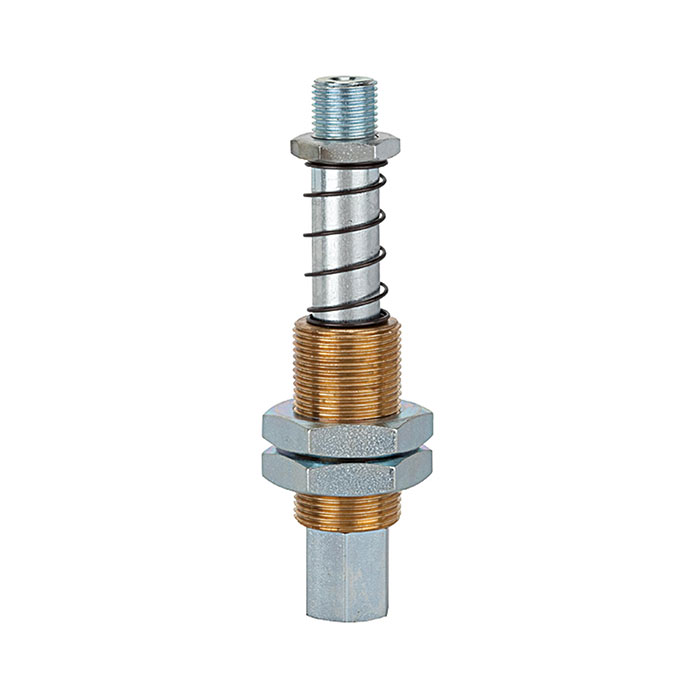

RIEGLER Spring plunger, Suction connection M5 IT, Spring travel 5 mm
Type number: FS 55-5
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spring plunger, suction/vacuum connection M5 female thread, spring travel 5.0 mm, operating temperature 0 °C to 80 °C
| Operating temperature min. | 0 °C |
| Operating temperature max. | 80 °C |
| Length | 41.2 mm |
| Vacuum connection | M5 IG |
| Suction cup connection | M5 IG |
| Spring travel | 5 mm |
| Spring rate | 0.508 N/mm |
| Spring preload | 3.3 N |
| Spring force | 4.57 N |
| Vertical load | 1500 N |
| Horizontal load | 132 N |
| Weight | 16 g |
