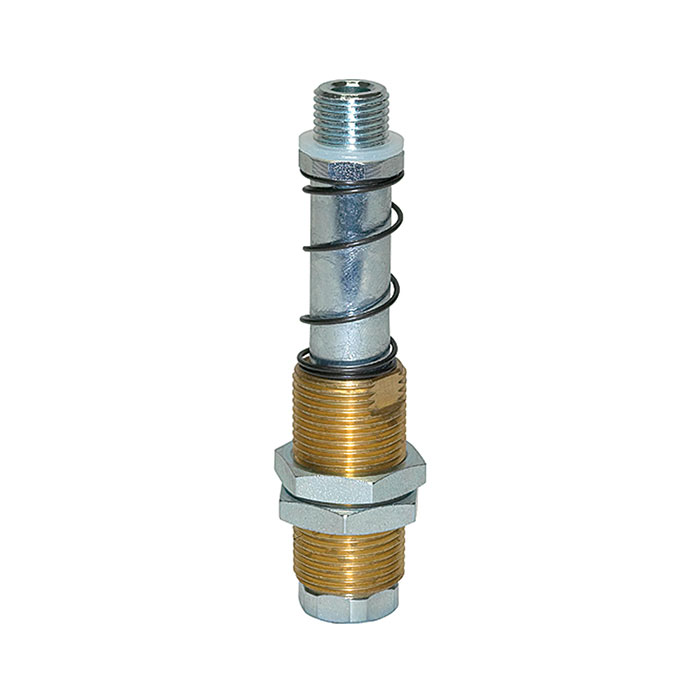

RIEGLER Spring plunger, Suction connection G 1/4 ET, Spring travel 50 mm
Type number: FS 1418-50
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Spring plunger, suction/vacuum connection G 1/4 male, G 1/8 female, spring travel 50.0 mm, operating temperature 0 °C to 80 °C
| Operating temperature min. | 0 °C |
| Operating temperature max. | 80 °C |
| Length | 124.5 mm |
| Vacuum connection | G 1/8 FEMALE THREAD |
| Suction cup connection | G 1/4 AG |
| Spring travel | 50 mm |
| Spring rate | 0.452 N/mm |
| Spring preload | 1.4 N |
| Spring force | 12.7 N |
| Vertical load | 2400 N |
| Horizontal load | 466 N |
| Weight | 175 g |
