RIEGLER Spring plunger, Suction connection M5 IT, Spring travel 10 mm
Type number: FS 55-10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spring plungers for vacuum technology - type FS 55-10
The RIEGLER spring plunger, suction/vacuum connection M5 female thread, spring travel 10.0 mm generates or uses vacuum for handling and automation tasks. The operating temperature is between 0 °C and 80 °C. Reliable vacuum technology.
Field of application
Typical areas of application: Robotics and packaging technology.
| Operating temperature min. | 0 °C |
| Operating temperature max. | 80 °C |
| Length | 47.2 mm |
| Vacuum connection | M5 IG |
| Suction cup connection | M5 IG |
| Spring travel | 10 mm |
| Spring rate | 0.323 N/mm |
| Spring preload | 2.75 N |
| Spring force | 4.36 N |
| Vertical load | 1500 N |
| Horizontal load | 97 N |
| Weight | 19 g |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[108542] RIEGLER Spring plunger, Suction connection G 1/4 ET, Spring travel 25 mm](/web/image/product.template/192439/image_128/%5B108542%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-4%20ET%2C%20Spring%20travel%2025%20mm?unique=ce446d7)
|
Type number: FS 1418-25 |
59.77 € | |
![[108543] RIEGLER Spring plunger, Suction connection G 1/4 ET, Spring travel 50 mm](/web/image/product.template/192440/image_128/%5B108543%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-4%20ET%2C%20Spring%20travel%2050%20mm?unique=a7bc742)
|
Type number: FS 1418-50 |
60.36 € | |
![[108544] RIEGLER Spring plunger, Suction connection G 1/4 ET, Spring travel 75 mm](/web/image/product.template/192441/image_128/%5B108544%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-4%20ET%2C%20Spring%20travel%2075%20mm?unique=1e8a8b1)
|
Type number: FS 1418-75 |
65.94 € | |

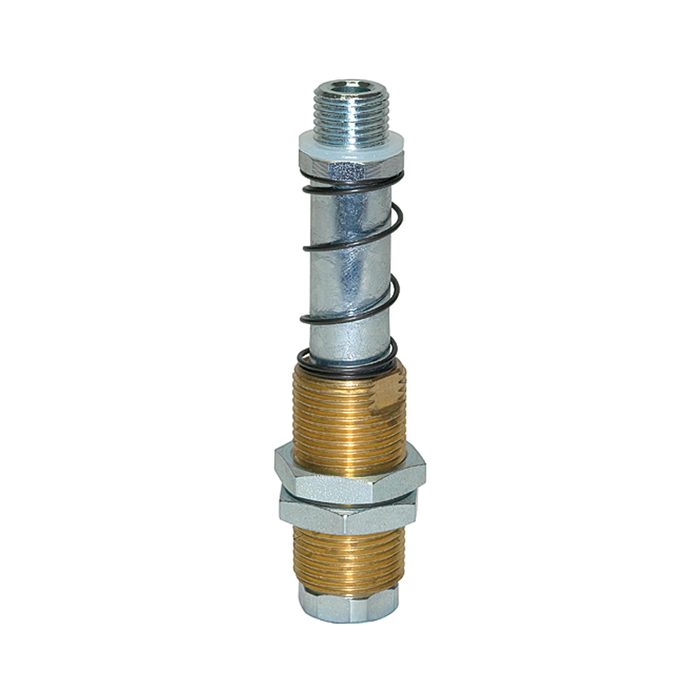

![[108539] RIEGLER Spring plunger, Suction connection G 1/8 ET, Spring travel 15 mm](/web/image/product.template/192436/image_128/%5B108539%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-8%20ET%2C%20Spring%20travel%2015%20mm?unique=a413c23)
|
Type number: FS 1818-15 |
51.73 € | |
![[108540] RIEGLER Spring plunger, Suction connection G 1/8 ET, Spring travel 25 mm](/web/image/product.template/192437/image_128/%5B108540%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-8%20ET%2C%20Spring%20travel%2025%20mm?unique=32c723e)
|
Type number: FS 1818-25 |
53.26 € | |
![[108541] RIEGLER Spring plunger, Suction connection G 1/8 ET, Spring travel 50 mm](/web/image/product.template/192438/image_128/%5B108541%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20G%201-8%20ET%2C%20Spring%20travel%2050%20mm?unique=43d98cc)
|
Type number: FS 1818-50 |
54.66 € | |
![[108535] RIEGLER Spring plunger, Suction connection M3 IT, Spring travel 5 mm](/web/image/product.template/192432/image_128/%5B108535%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20M3%20IT%2C%20Spring%20travel%205%20mm?unique=65e6490)
|
Type number: FS 33-5 |
44.35 € | |

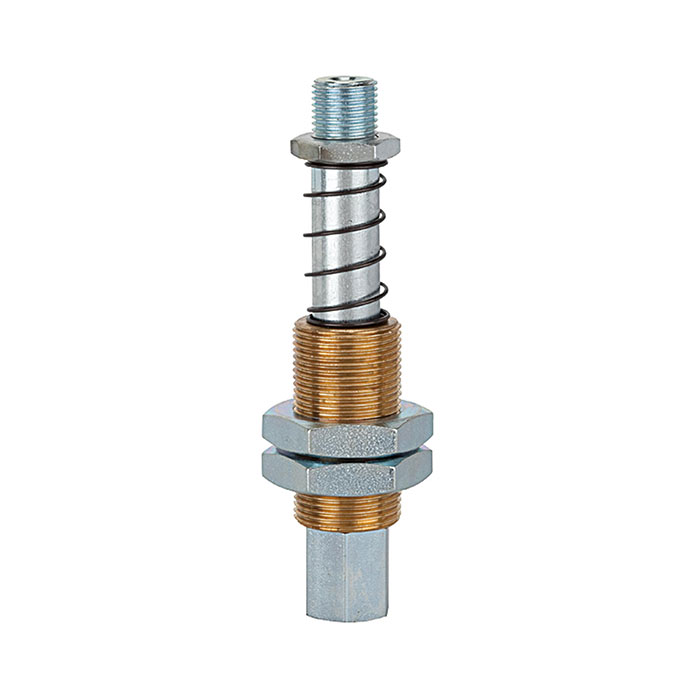

![[108538] RIEGLER Spring plunger, Suction connection M5 IT, Spring travel 20 mm](/web/image/product.template/192435/image_128/%5B108538%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20M5%20IT%2C%20Spring%20travel%2020%20mm?unique=fe58444)
|
Type number: FS 55-20 |
45.27 € | |
![[108536] RIEGLER Spring plunger, Suction connection M5 IT, Spring travel 5 mm](/web/image/product.template/192433/image_128/%5B108536%5D%20RIEGLER%20Spring%20plunger%2C%20Suction%20connection%20M5%20IT%2C%20Spring%20travel%205%20mm?unique=8dd1ed5)
|
Type number: FS 55-5 |
44.35 € | |
