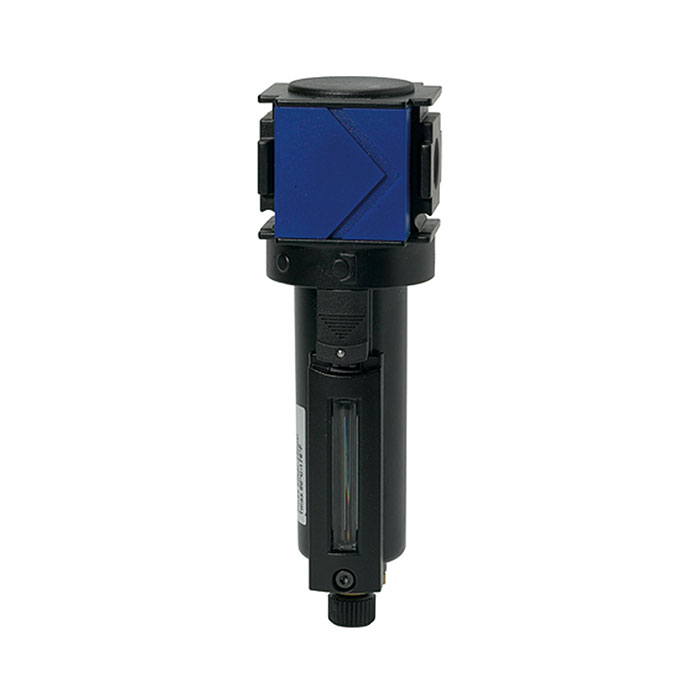

RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 2, G 1/2
Type number: VM 24 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Microfilter "variobloc" for compressed air treatment, G 1/2 - type VM 24 M
The RIEGLER "variobloc" microfilter, metal container, sight tube, BG 2, G 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The maximum inlet pressure is 20 bar. The permissible medium temperature is between 0 °C and 80 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 1000 l/min (at P1 = 7 bar and pressure drop Δp = 0.1 bar). Filter fineness 0.01 µm, container made of metal container with sight tube. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 20 bar |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 0.01 µm |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 80 °C |
| Efficiency | 999.99 |
| Air quality according to ISO 8573.1 | Class 1 dirt, class 1 oil |
| Thread | G 1/2 |
| Flow rate | 1000 l/min |
| BG | 2 |
| A | 70 mm |
| B | 202 mm |
| C | 26 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125320] RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 1, G 1/4](/web/image/product.template/202463/image_128/%5B125320%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=23064b7)
|
Type number: VM 22 M |
125.66 € | |
![[125321] RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 1, G 3/8](/web/image/product.template/202464/image_128/%5B125321%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=1e01a91)
|
Type number: VM 23 M |
125.66 € | |
![[125324] RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 2, G 1](/web/image/product.template/202467/image_128/%5B125324%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%201?unique=23064b7)
|
Type number: VM 26 M |
201.78 € | |
![[125323] RIEGLER Microfilter »variobloc«, Metal container, 0.01 µm, Size 2, G 3/4](/web/image/product.template/202466/image_128/%5B125323%5D%20RIEGLER%20Microfilter%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%200.01%20%C2%B5m%2C%20Size%202%2C%20G%203-4?unique=23064b7)
|
Type number: VM 25 M |
157.23 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

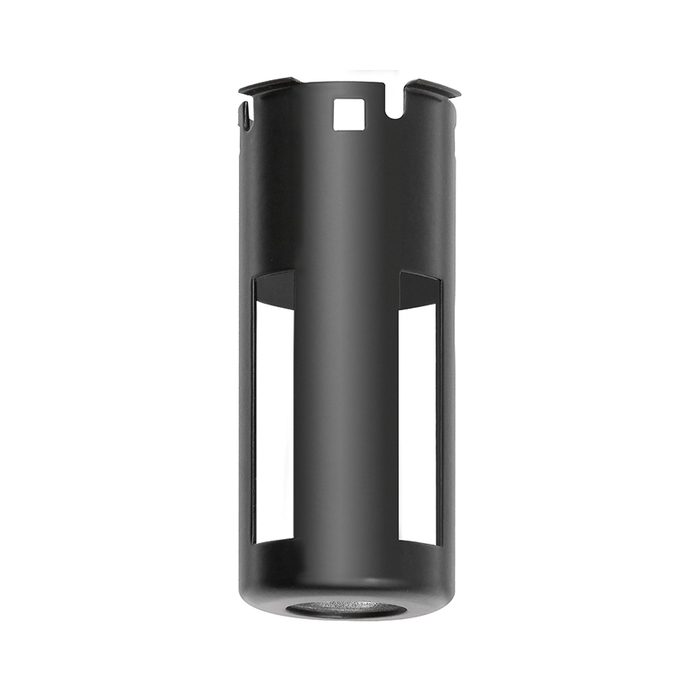

![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=78fbe75)
|
Type number: VZ 532 |
18.14 € | |

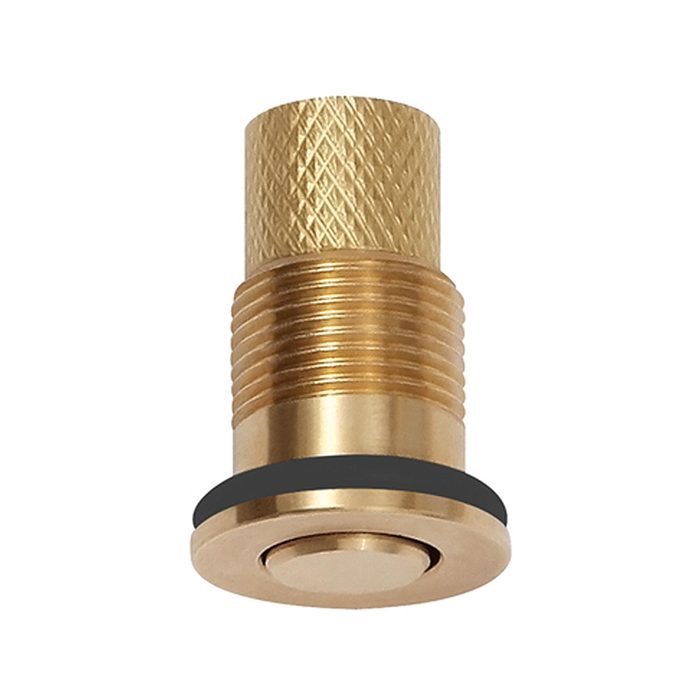

![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=dcf29f9)
|
Type number: VZ 751 |
9.47 € | |

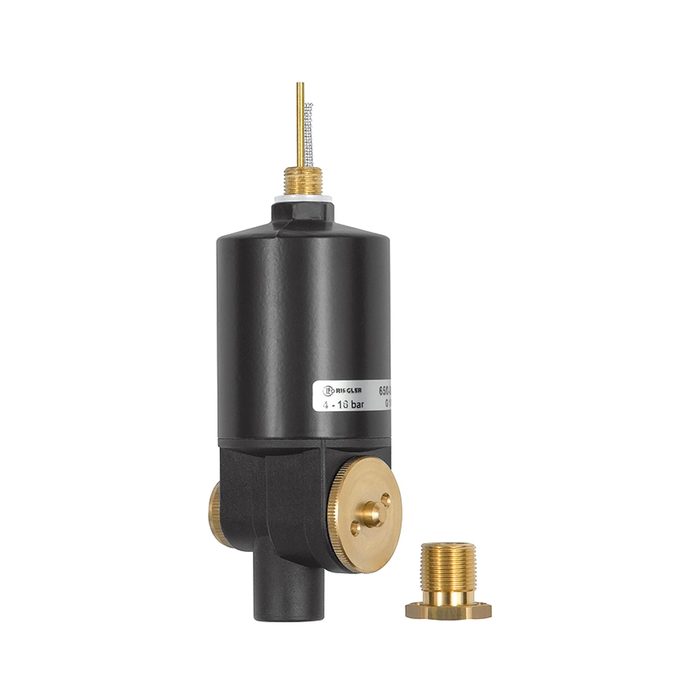

![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=a964118)
|
Type number: 65/0-N |
69.63 € | |

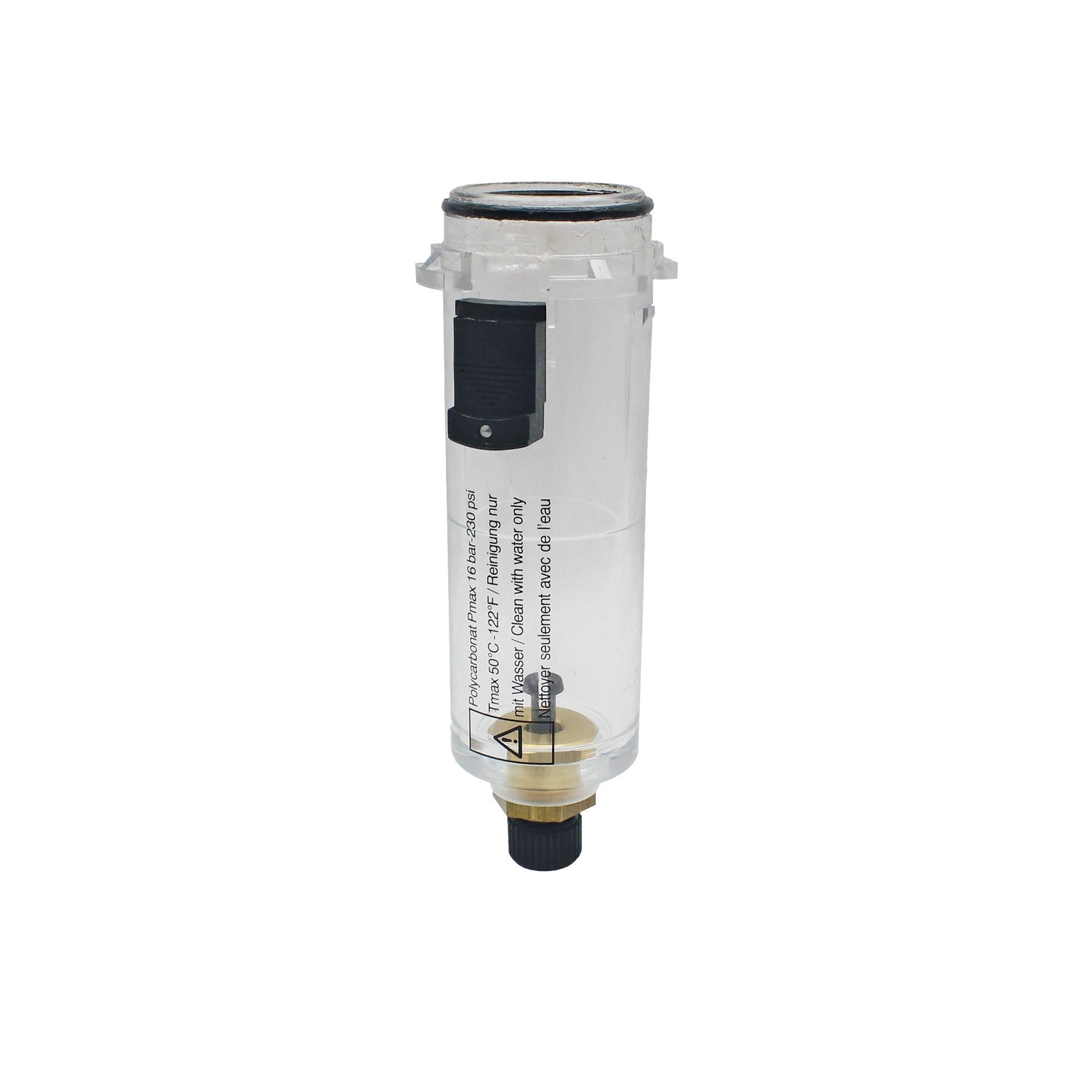

![[100689] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140124/image_128/%5B100689%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=c594057)
|
Type number: VZ 522 |
17.89 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=676cb8d)
|
Type number: VZ 719 |
13.77 € | |
![[100752] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 1/2](/web/image/product.template/140188/image_128/%5B100752%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2?unique=2a09be7)
|
Type number: VZ 103 |
14.05 € | |
![[100756] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2, G 1/2](/web/image/product.template/140192/image_128/%5B100756%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2?unique=3d5132d)
|
Type number: VZ 203 |
23.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

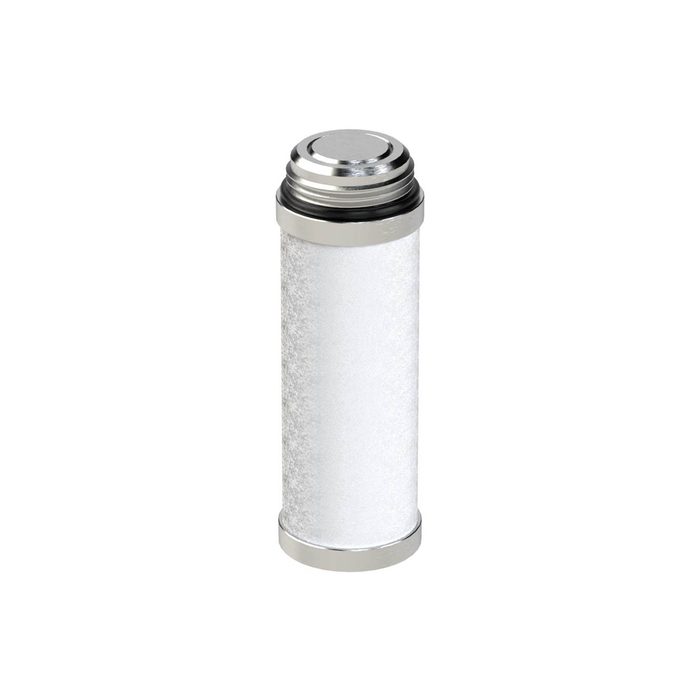

![[100691] RIEGLER Filter element 0.01 µm, Borosilicate / microfiber fleece](/web/image/product.template/140126/image_128/%5B100691%5D%20RIEGLER%20Filter%20element%200.01%20%C2%B5m%2C%20Borosilicate%20-%20microfiber%20fleece?unique=80881f0)
|
