RIEGLER Push-in Y-connector, Plug nipple 6 mm »Blue Series«, reducing
Type number: 158.0604-K
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Y-Steckverbindung, Stecknippel 6 mm »Blaue Serie«, red., für Schlauch-Außen-Ø 4 mm, pmax kurzzeitig 15 bar, Kunststoff
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 4 mm |
| Plug nipple | 6 mm |

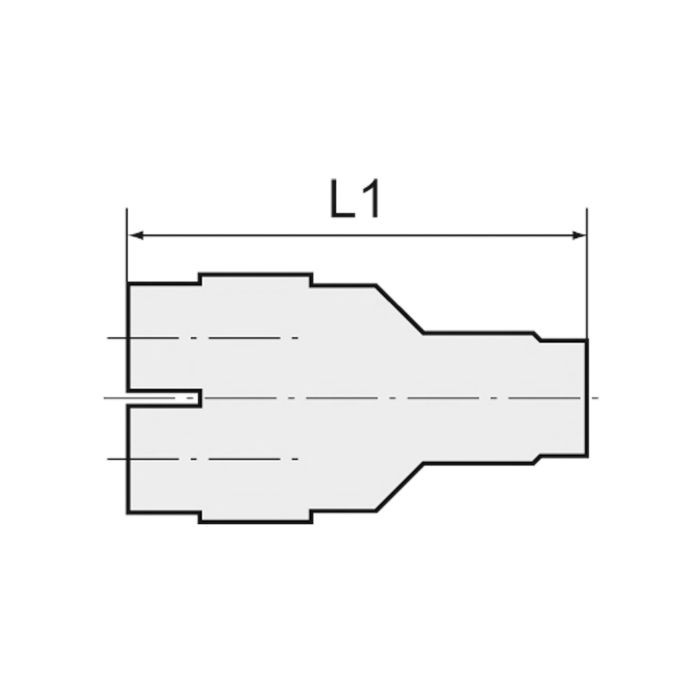

| L1 | 49.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
