RIEGLER Shut-off valve "SYNTESI", pneumatic, BG1, without sockets
Type number: 5610V200
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Shut-off valve "SYNTESI" made of technopolymer, for compressed air preparation - Type 5610V200
The RIEGLER shut-off valve "SYNTESI", pneumatic, BG1, without bushes adds additional modular functions to maintenance systems. The housing is made of technopolymer. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Control pressure min. | 3 bar |
| Control pressure max. | 10 bar |
| BG | 1 |
| Input connection | without socket |
| Output connection | without socket |
| A | 42 mm |
| B | 66 mm |
| Exhaust air | G 1/8 |
| Flow 1 | 1100 Nl/min |
| Flow 2 | 1600 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Series | Syntesi |
| F | 32.2 mm |
| Vent flow rate at 6.3 | 500 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

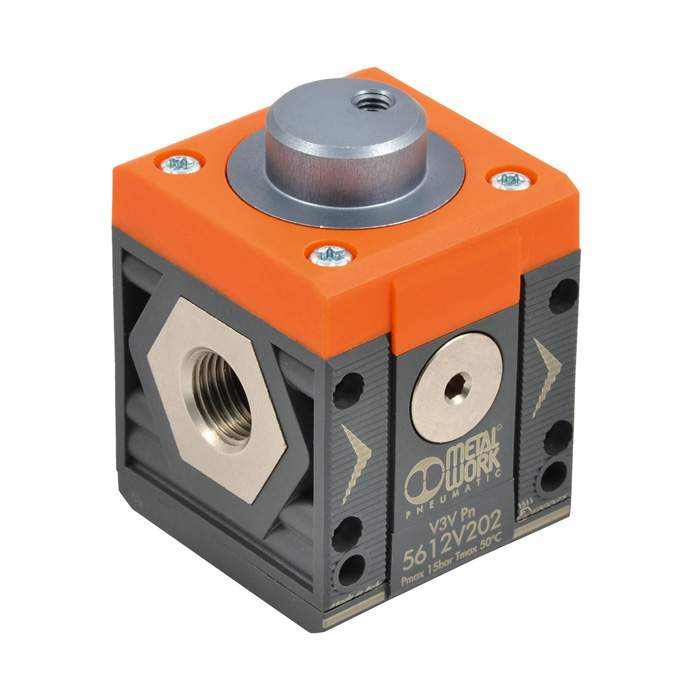

![[144865] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG1, G 1/4](/web/image/product.template/279995/image_128/%5B144865%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG1%2C%20G%201-4?unique=4e0fc34)
|
