RIEGLER Shut-off valve "SYNTESI", pneumatic, BG2, without sockets
Type number: 5620V200
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Shut-off valve »SYNTESI«, pneumatic, size 2, without bushings, exhaust G 1/8, p1 = max. 13 bar, T = -10…50 °C, w/o silencer
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Control pressure min. | 3 bar |
| Control pressure max. | 10 bar |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 94 mm |
| Exhaust air | G 1/4 |
| Flow_2 | 4000 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Series | Syntesi |
| F | 42.7 mm |
| Flow_1 | 3000 Nl/min |
| Vent flow rate at 6.3 | 2000 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144865] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG1, G 1/4](/web/image/product.template/279995/image_128/%5B144865%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG1%2C%20G%201-4?unique=e901159)
|
Type number: 5612V202 |
60.55 € | |
![[144864] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG1, G 1/8](/web/image/product.template/279994/image_128/%5B144864%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG1%2C%20G%201-8?unique=20468df)
|
Type number: 5611V201 |
60.55 € | |
![[144866] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG1, G 3/8](/web/image/product.template/279996/image_128/%5B144866%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG1%2C%20G%203-8?unique=0156c08)
|
Type number: 5613V203 |
60.55 € | |

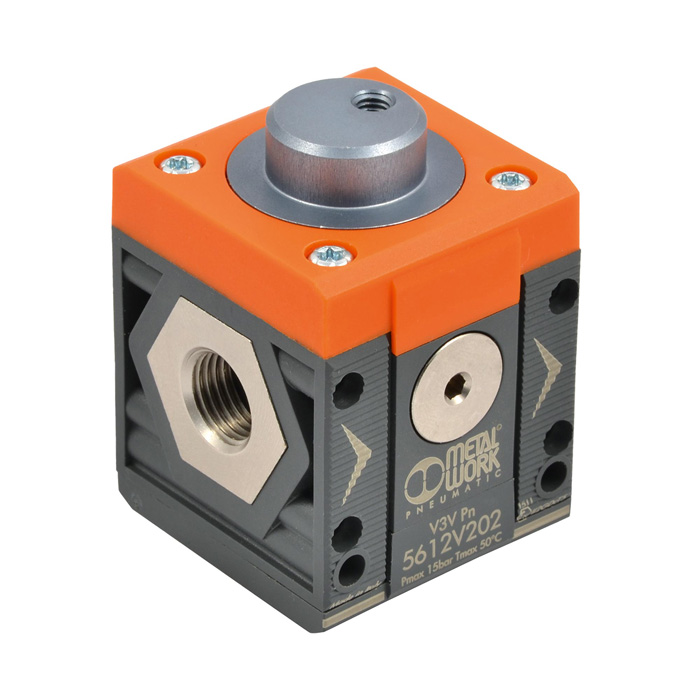

![[144863] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG1, without sockets](/web/image/product.template/279993/image_128/%5B144863%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG1%2C%20without%20sockets?unique=513d8ff)
|
Type number: 5610V200 |
58.33 € | |
![[144871] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG2, G 1](/web/image/product.template/280001/image_128/%5B144871%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG2%2C%20G%201?unique=f674d5f)
|
Type number: 5626V206 |
106.62 € | |
![[144869] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG2, G 1/2](/web/image/product.template/279999/image_128/%5B144869%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG2%2C%20G%201-2?unique=eec6e59)
|
Type number: 5624V204 |
97.91 € | |
![[144870] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG2, G 3/4](/web/image/product.template/280000/image_128/%5B144870%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG2%2C%20G%203-4?unique=96e7619)
|
Type number: 5625V205 |
106.62 € | |
![[144868] RIEGLER Shut-off valve "SYNTESI", pneumatic, BG2, G 3/8](/web/image/product.template/279998/image_128/%5B144868%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20pneumatic%2C%20BG2%2C%20G%203-8?unique=0bf0469)
|
Type number: 5623V203 |
97.91 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

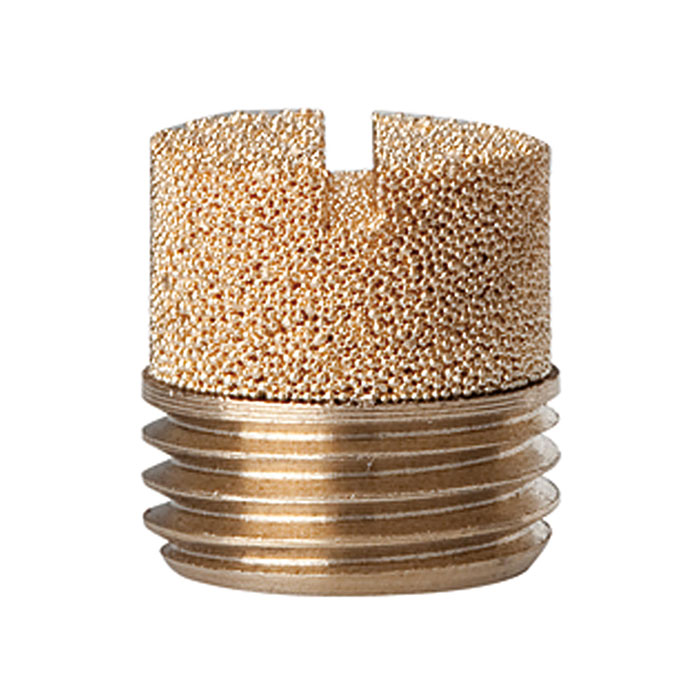

![[100289] RIEGLER Sintered bronze silencer, Slot, G 1/4](/web/image/product.template/139724/image_128/%5B100289%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-4?unique=952b1fa)
|
Type number: 564-2 |
2.69 € | |
![[100290] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/4, AF 15](/web/image/product.template/139725/image_128/%5B100290%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-4%2C%20AF%2015?unique=806b463)
|
Type number: 567-2/M |
3.13 € | |
![[144691] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/8, incl. 2 screws](/web/image/product.template/277873/image_128/%5B144691%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%20incl.%202%20screws?unique=b5b1193)
|
Type number: 9210011 |
5.85 € | |
![[144692] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1/2, incl. 2 screws](/web/image/product.template/277874/image_128/%5B144692%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20incl.%202%20screws?unique=dc0b528)
|
Type number: 9210012 |
5.85 € | |
![[144693] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 3/4, incl. 2 screws](/web/image/product.template/277875/image_128/%5B144693%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%20incl.%202%20screws?unique=c6cfb96)
|
Type number: 9210013 |
10.26 € | |
![[144694] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1, incl. 2 screws](/web/image/product.template/277876/image_128/%5B144694%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%20incl.%202%20screws?unique=66bf271)
|
Type number: 9210014 |
10.26 € | |
![[144696] RIEGLER Connecting nipple set "SYNTESI", BG 2](/web/image/product.template/279864/image_128/%5B144696%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%202?unique=60305ee)
|
Type number: 9210010 |
6.88 € | |
![[145503] RIEGLER Connecting element 90°, "SYNTESI", BG 2](/web/image/product.template/279259/image_128/%5B145503%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%202?unique=8cabff5)
|
Type number: 9210019 |
6.40 € | |

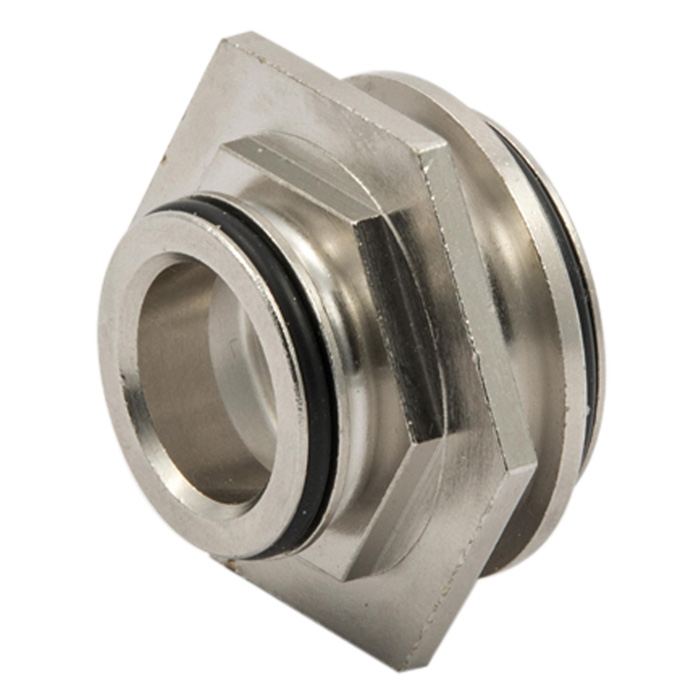

![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=2548603)
|
