RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 1/4, perforation 3.5 mm
Type number: 5612V102
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Shut-off valve "SYNTESI" made of technopolymer, for compressed air preparation - Type 5612V102
The RIEGLER shut-off valve "SYNTESI", manual, BG1, G 1/4, perforation 3.5 mm adds additional functions to modular maintenance systems. The housing is made of technopolymer. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 42 mm |
| B | 80 mm |
| Exhaust air | G 1/8 |
| Flow 2 | 1500 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Fuse hole | 2x Ø 3.5 mm |
| Series | Syntesi |
| F | 32.2 mm |
| Flow 1 | 1000 Nl/min |
| Vent flow rate at 6.3 | 500 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144855] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 1/8, perforation 3.5 mm](/web/image/product.template/279985/image_128/%5B144855%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%201-8%2C%20perforation%203.5%20mm?unique=7044d2f)
|
Type number: 5611V101 |
42.64 € | |
![[144857] RIEGLER Shut-off valve "SYNTESI", manual, BG1, G 3/8, perforation 3.5 mm](/web/image/product.template/279987/image_128/%5B144857%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20G%203-8%2C%20perforation%203.5%20mm?unique=d1fc406)
|
Type number: 5613V103 |
42.64 € | |
![[144844] RIEGLER Shut-off valve "SYNTESI", manual, BG1, without bushings, 3.5mm perforation](/web/image/product.template/279984/image_128/%5B144844%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG1%2C%20without%20bushings%2C%203.5mm%20perforation?unique=64ee8f2)
|
Type number: 5610V100 |
40.42 € | |
![[144860] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 1/2, perforation 3.5 mm](/web/image/product.template/279990/image_128/%5B144860%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%201-2%2C%20perforation%203.5%20mm?unique=e290b93)
|
Type number: 5624V104 |
60.39 € | |
![[144862] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 1, perforation 3.5 mm](/web/image/product.template/279992/image_128/%5B144862%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%201%2C%20perforation%203.5%20mm?unique=b16f617)
|
Type number: 5626V106 |
69.10 € | |

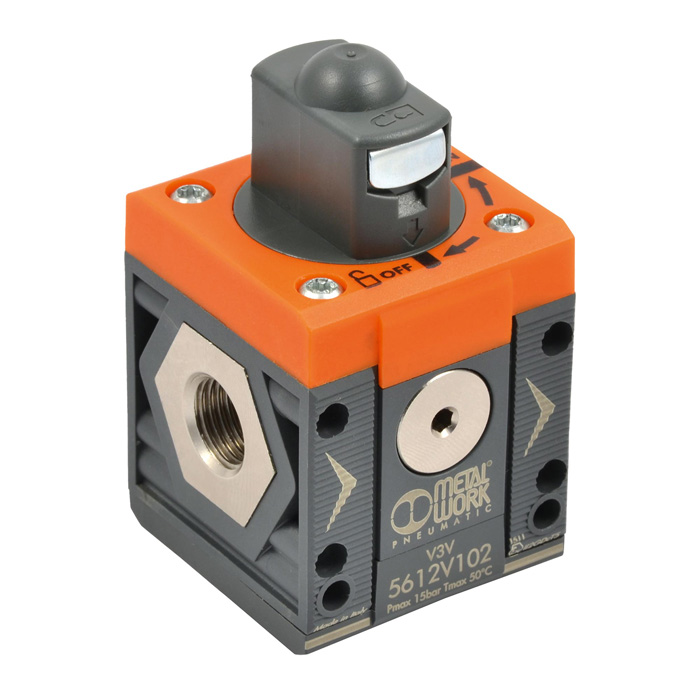

![[144861] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 3/4, perforation 3.5 mm](/web/image/product.template/279991/image_128/%5B144861%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%203-4%2C%20perforation%203.5%20mm?unique=21951c4)
|
Type number: 5625V105 |
69.10 € | |
![[144859] RIEGLER Shut-off valve "SYNTESI", manual, BG2, G 3/8, perforation 3.5 mm](/web/image/product.template/279989/image_128/%5B144859%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20G%203-8%2C%20perforation%203.5%20mm?unique=0b59902)
|
Type number: 5623V103 |
60.39 € | |
![[144858] RIEGLER Shut-off valve "SYNTESI", manual, BG2, without bushes, 3.5mm perforation](/web/image/product.template/279988/image_128/%5B144858%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20manual%2C%20BG2%2C%20without%20bushes%2C%203.5mm%20perforation?unique=7a5eb6b)
|
Type number: 5620V100 |
49.22 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[113345] RIEGLER Sintered bronze silencer, Brass thread / hexagonal, G 1/8, AF 12](/web/image/product.template/186246/image_128/%5B113345%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Brass%20thread%20-%20hexagonal%2C%20G%201-8%2C%20AF%2012?unique=aace9de)
|
Type number: 567-1/M |
2.46 € | |

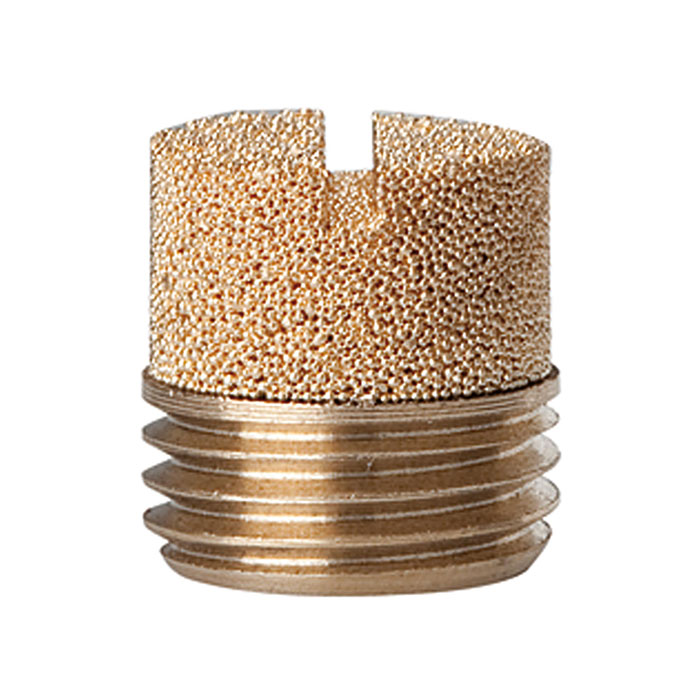

![[113353] RIEGLER Sintered bronze silencer, Slot, G 1/8](/web/image/product.template/186254/image_128/%5B113353%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201-8?unique=e964479)
|
Type number: 564-1 |
2.33 € | |
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=f87f747)
|
Type number: 9210000 |
2.70 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=de67692)
|
Type number: 9210009 |
4.08 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=f780728)
|
Type number: 9210006 |
6.47 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=4a7f6b5)
|
Type number: 9210030 |
0.25 € | |

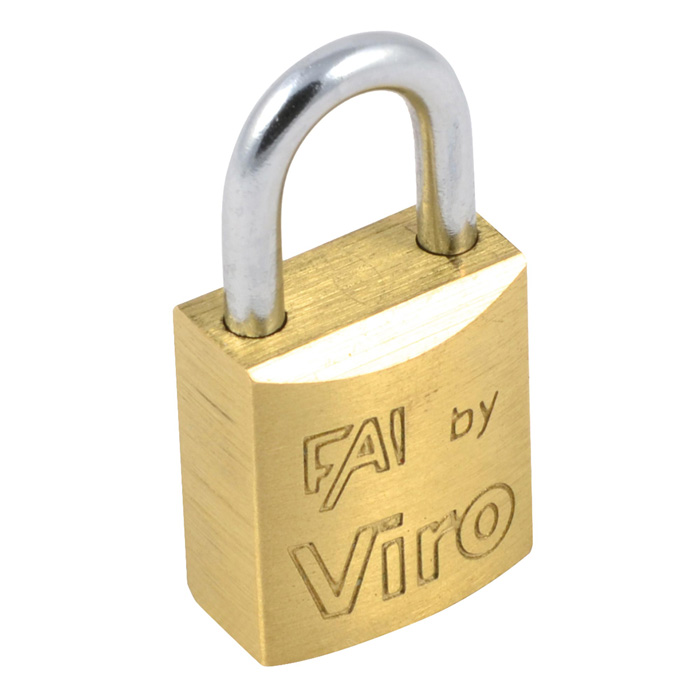

![[145509] RIEGLER SYNTESI" padlock](/web/image/product.template/279366/image_128/%5B145509%5D%20RIEGLER%20SYNTESI%22%20padlock?unique=3f5e2bf)
|
Type number: 9062401 |
12.10 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=37b8db6)
|
Type number: 9200716X |
13.63 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=116325a)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=080c3b4)
|
Type number: 233.02-N |
0.42 € | |
![[144689] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 1/4, incl. 2 screws](/web/image/product.template/277871/image_128/%5B144689%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%20incl.%202%20screws?unique=74f5974)
|
Type number: 9210002 |
1.86 € | |
