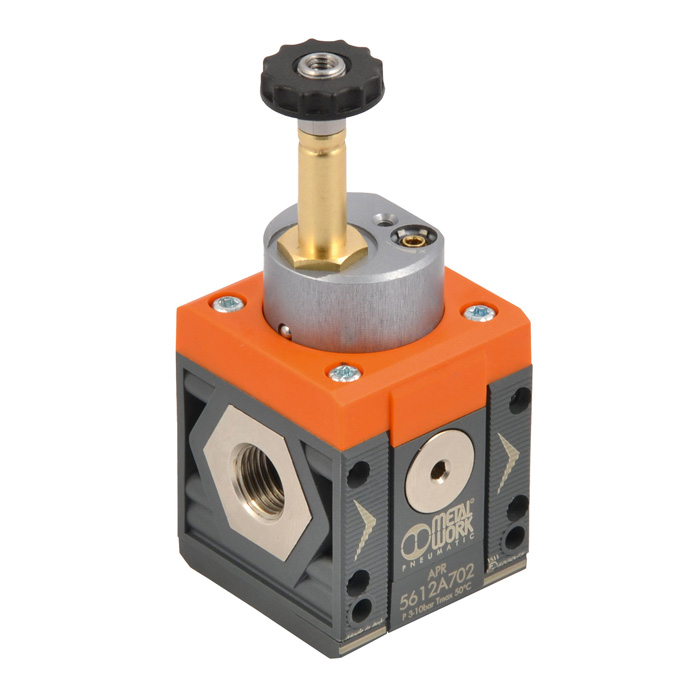

RIEGLER Soft start valve "SYNTESI", electric, BG 1, without sockets
Type number: 5610A700
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Progressive starter »SYNTESI«, electric, size 1, w/o bushings, p1 = 3 ... 10 bar, T = -10 … 50 °C, w/o coil/connector/silencer
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 1 |
| Input connection | without socket |
| Output connection | without socket |
| A | 42 mm |
| B | 105 mm |
| Flow_1 | 1100 Nl/min |
| Flow_2 | 1600 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Series | Syntesi |
| F | 32.2 mm |
