RIEGLER Soft start valve "SYNTESI", electric, BG 1, G 1/8
Type number: 5611A701
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Soft start valve "SYNTESI" made of technopolymer, for compressed air preparation - Type 5611A701
The RIEGLER soft start valve "SYNTESI", electric, BG 1, G 1/8 adds additional functions to maintenance systems in a modular way. The housing is made of technopolymer. The maximum inlet pressure is 10 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 1 |
| Input connection | G 1/8 |
| Output connection | G 1/8 |
| A | 42 mm |
| B | 105 mm |
| Flow 1 | 900 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Series | Syntesi |
| F | 32.2 mm |
| Flow 2 | 1250 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

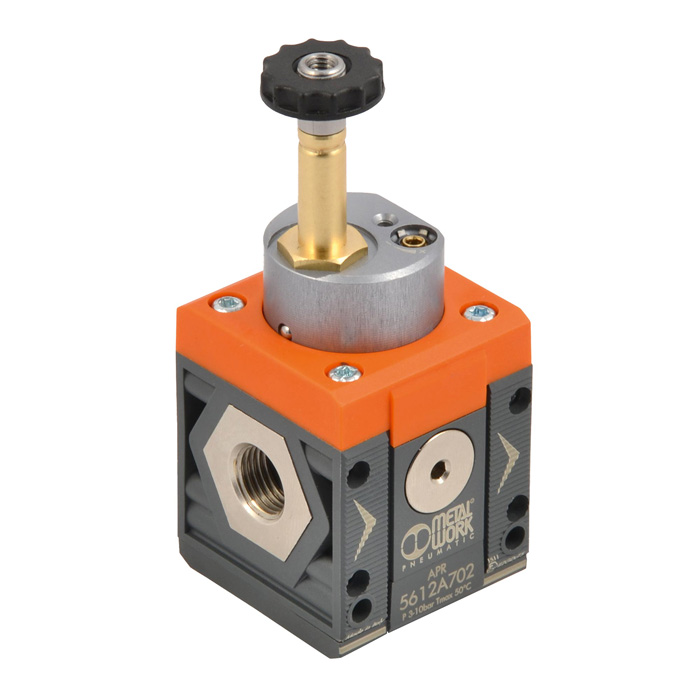

![[144923] RIEGLER Soft start valve "SYNTESI", electric, BG 1, G 1/4](/web/image/product.template/280027/image_128/%5B144923%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%201%2C%20G%201-4?unique=68b8aaf)
|
Type number: 5612A702 |
111.10 € | |
![[144924] RIEGLER Soft start valve "SYNTESI", electric, BG 1, G 3/8](/web/image/product.template/280028/image_128/%5B144924%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%201%2C%20G%203-8?unique=a1aa744)
|
Type number: 5613A703 |
111.10 € | |
![[144921] RIEGLER Soft start valve "SYNTESI", electric, BG 1, without sockets](/web/image/product.template/280025/image_128/%5B144921%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%201%2C%20without%20sockets?unique=40a525b)
|
Type number: 5610A700 |
108.86 € | |
![[144929] RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 1](/web/image/product.template/280033/image_128/%5B144929%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20G%201?unique=7b25ef0)
|
Type number: 5626A706 |
144.81 € | |
![[144927] RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 1/2](/web/image/product.template/280031/image_128/%5B144927%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20G%201-2?unique=9cf8090)
|
Type number: 5624A704 |
136.09 € | |
![[144928] RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 3/4](/web/image/product.template/280032/image_128/%5B144928%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20G%203-4?unique=3e4af6e)
|
Type number: 5625A705 |
144.81 € | |
![[144926] RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 3/8](/web/image/product.template/280030/image_128/%5B144926%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20G%203-8?unique=3f7885b)
|
Type number: 5623A703 |
136.09 € | |
![[144925] RIEGLER Soft start valve "SYNTESI", electric, BG 2, without sockets](/web/image/product.template/280029/image_128/%5B144925%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20without%20sockets?unique=ed61f4a)
|
Type number: 5620A700 |
124.91 € | |
