RIEGLER Soft start valve "SYNTESI", electric, BG 2, without sockets
Type number: 5620A700
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Progressive starter »SYNTESI«, electric, size 2, w/o bushings, p1 = 3 … 10 bar, T = -10 … 50 °C, w/o coil/connector/silencer
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 131 mm |
| Flow_1 | 3600 Nl/min |
| Flow_2 | 4800 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Series | Syntesi |
| F | 42.7 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144923] RIEGLER Soft start valve "SYNTESI", electric, BG 1, G 1/4](/web/image/product.template/280027/image_128/%5B144923%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%201%2C%20G%201-4?unique=4b6f043)
|
Type number: 5612A702 |
112.63 € | |
![[144922] RIEGLER Soft start valve "SYNTESI", electric, BG 1, G 1/8](/web/image/product.template/280026/image_128/%5B144922%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%201%2C%20G%201-8?unique=8c34243)
|
Type number: 5611A701 |
112.63 € | |
![[144924] RIEGLER Soft start valve "SYNTESI", electric, BG 1, G 3/8](/web/image/product.template/280028/image_128/%5B144924%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%201%2C%20G%203-8?unique=cbb68a8)
|
Type number: 5613A703 |
112.63 € | |
![[144921] RIEGLER Soft start valve "SYNTESI", electric, BG 1, without sockets](/web/image/product.template/280025/image_128/%5B144921%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%201%2C%20without%20sockets?unique=86070d6)
|
Type number: 5610A700 |
108.86 € | |
![[144929] RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 1](/web/image/product.template/280033/image_128/%5B144929%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20G%201?unique=8dc28b7)
|
Type number: 5626A706 |
146.82 € | |

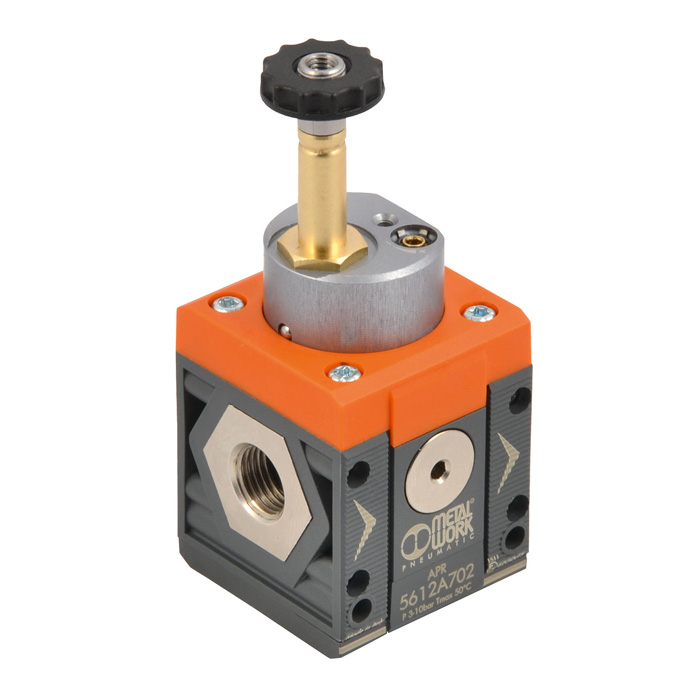

![[144927] RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 1/2](/web/image/product.template/280031/image_128/%5B144927%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20G%201-2?unique=271c047)
|
Type number: 5624A704 |
137.98 € | |
![[144928] RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 3/4](/web/image/product.template/280032/image_128/%5B144928%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20G%203-4?unique=c63057f)
|
Type number: 5625A705 |
146.82 € | |
![[144926] RIEGLER Soft start valve "SYNTESI", electric, BG 2, G 3/8](/web/image/product.template/280030/image_128/%5B144926%5D%20RIEGLER%20Soft%20start%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG%202%2C%20G%203-8?unique=087c3c3)
|
Type number: 5623A703 |
137.98 € | |
