RIEGLER Kugelhahn schwere Ausführ., Flügelgriff, IG/AG, MS vern., G/R 1 (Kopie)
Typennummer: 3340.16-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve, heavy-duty version, nickel-plated brass, for industrial installations, G 1 - Type 3340.16-1
The RIEGLER heavy-duty ball valve, wing handle, IG/AG, MS nickel-plated, G 1 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -20 °C and 130 °C. Connection thread G 1 (DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Thread material | Brass bright |
| Ball | Chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Wing handle | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G 1 |
| DN | 25 |
| SW 1 | 39 mm |
| SW 2 | 39 mm |
| PN | 80 bar |
| Thread standard | DIN EN ISO 228-1 |
| A | 56 mm |
| B | 70 mm |
| E | 13.5 mm |
| F | 13.5 mm |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

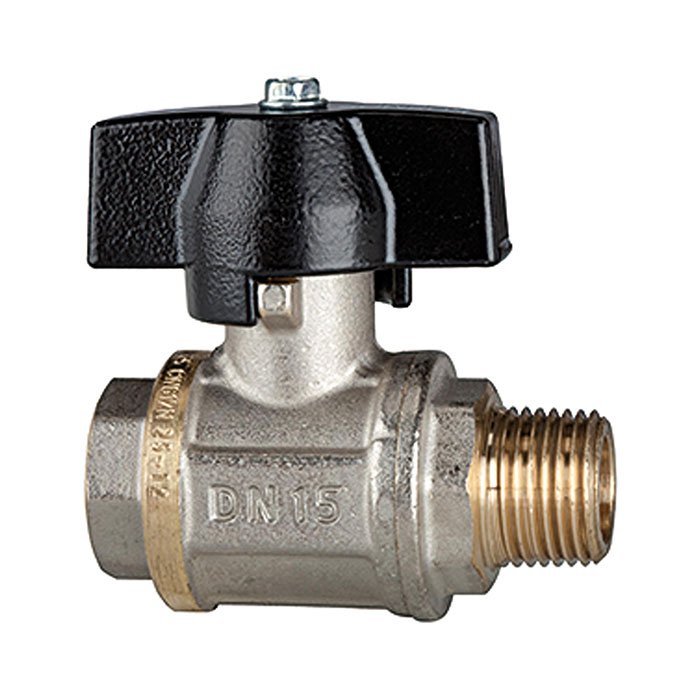

![[103296] RIEGLER Ball valve heavy duty design, Butterfly handle, IT/ET, G/R 1](/web/image/product.template/171263/image_128/%5B103296%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Butterfly%20handle%2C%20IT-ET%2C%20G-R%201?unique=d5a756f)
|
