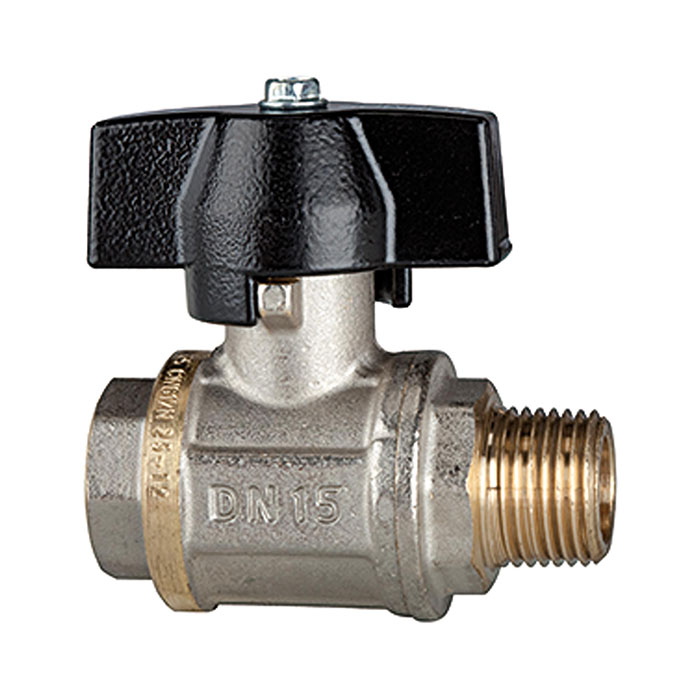

RIEGLER Ball valve heavy duty design, Butterfly handle, IT/ET, G/R 3/4
Type number: 3340.15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve, heavy-duty version, nickel-plated brass, for industrial installations, G/R 3/4 - Type 3340.15
The RIEGLER heavy-duty ball valve, wing handle, IG/AG, MS nickel-plated, G/R 3/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. The operating temperature is between -20 °C and 130 °C. Connection thread G/R 3/4 (G-thread DIN EN ISO 228-1, R-thread DIN EN 10226 (ISO 7-1)) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Wing handle | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G/R 3/4 |
| DN | 20 |
| SW 1 | 33 mm |
| SW 2 | 32 mm |
| PN | 80 bar |
| Thread standard | G-thread DIN EN ISO 228-1, R-thread DIN EN 10226 (ISO 7-1) |
| A | 55 mm |
| B | 58.5 mm |
| L | 77 mm |
| E | 16 mm |
| F | 13 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | MAX |
