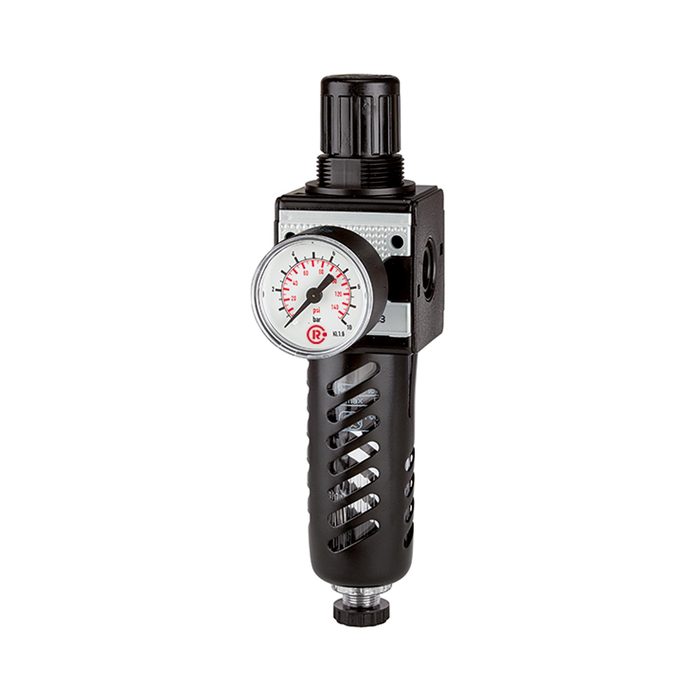

RIEGLER Filter regulator »multifix«, 40 µm, Size 5, G 1, 0.5 - 10 bar
Type number: C 55 - S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "multifix" made of aluminum, for compressed air treatment, 0.5 bar - Type C 55 - S
The RIEGLER filter regulator "multifix", with PC container, protective cage, BG 5, G 1 combines compressed air filtration and pressure regulation in one compact device. The housing is made of aluminum with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 15000 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, polycarbonate container with protective cage. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 16 bar |
| Housing | Aluminum |
| Sealing material | NBR |
| Intrinsic air consumption max. | 0.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1 |
| Flow rate | 15000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 25 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 5 |
| A | 100 mm |
| B | 381.8 mm |
| C | 128 mm |
| D | 253.8 mm |
| Intrinsic air consumption | Yes |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100488] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/139923/image_128/%5B100488%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=bde903a)
|
Type number: C 11 - S |
61.40 € | |
![[100489] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/139924/image_128/%5B100489%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=9b390a1)
|
Type number: C 12 - S |
61.40 € | |
![[100490] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 1/2, 0.5 - 10 bar](/web/image/product.template/139925/image_128/%5B100490%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=e518792)
|
Type number: C 33 - S |
90.54 € | |
![[100491] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 3/4, 0.5 - 10 bar](/web/image/product.template/139926/image_128/%5B100491%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=571dc40)
|
Type number: C 34 - S |
89.73 € | |
![[133108] RIEGLER Filter regulator »multifix«, 5 µm, Size 4, G 1, 0.5 - 10 bar](/web/image/product.template/202758/image_128/%5B133108%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%200.5%20-%2010%20bar?unique=abad732)
|
Type number: C 45-S 10 |
182.46 € | |

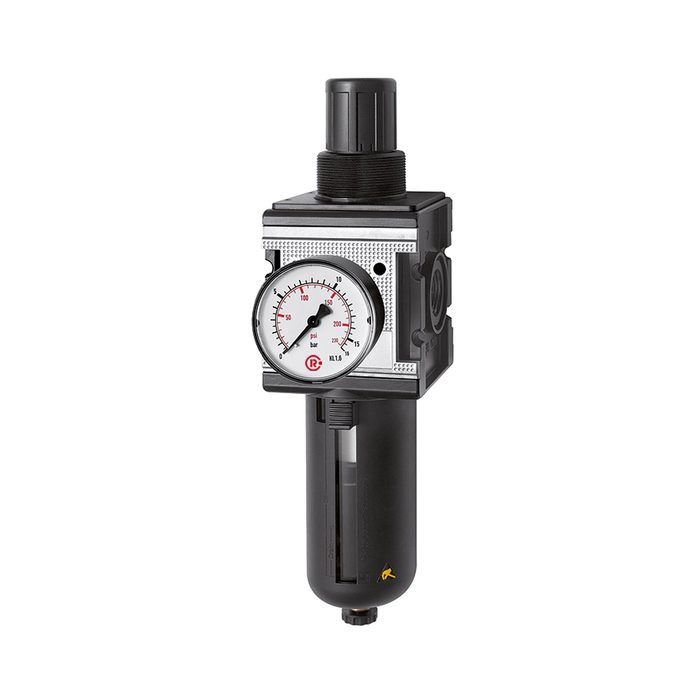

![[133107] RIEGLER Filter regulator »multifix«, 5 µm, Size 4, G 3/4, 0.5 - 10 bar](/web/image/product.template/202757/image_128/%5B133107%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%204%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=d6bd3fe)
|
Type number: C 44-S 10 |
182.46 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=1c1de20)
|
Type number: 655.6.900 |
36.35 € | |

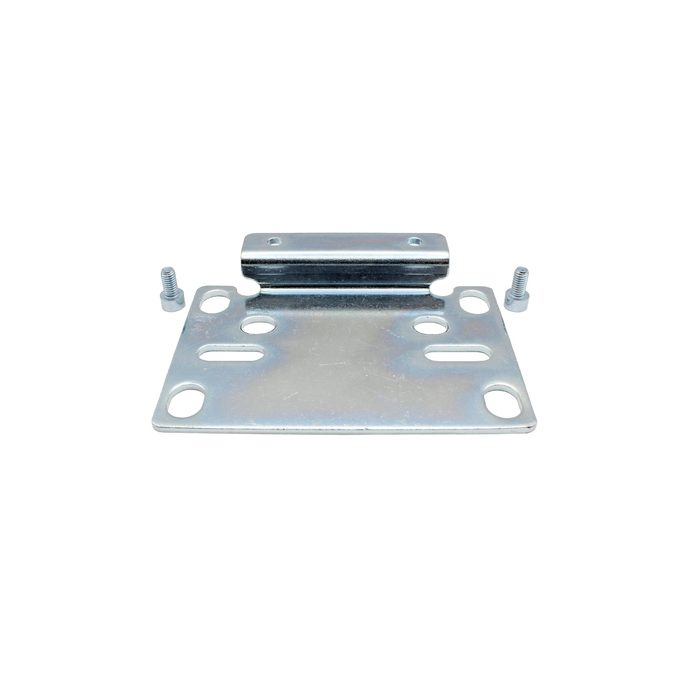

![[100445] RIEGLER Mounting bracket with 2 screws, for »multifix«, Size 5, G 1](/web/image/product.template/139879/image_128/%5B100445%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%205%2C%20G%201?unique=0f68a72)
|
Type number: ZW 55 |
13.53 € | |

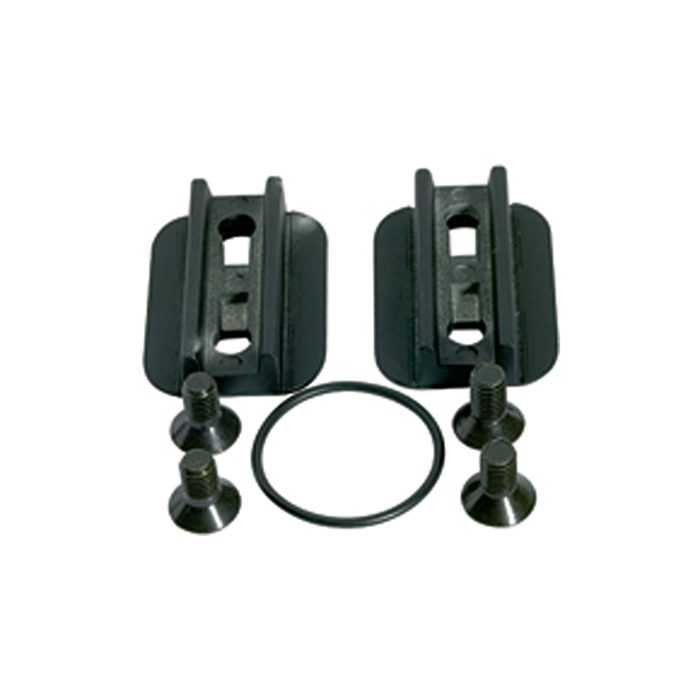

![[100446] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/139880/image_128/%5B100446%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=954ead4)
|
Type number: KP 55 |
7.39 € | |
![[100502] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139937/image_128/%5B100502%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=67b6dad)
|
Type number: MS 33 FS |
34.69 € | |
![[100503] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/139938/image_128/%5B100503%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=739dd35)
|
Type number: MS 33 FS-A |
74.97 € | |
![[100505] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139940/image_128/%5B100505%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=edf95ef)
|
Type number: KS 33 F-A |
45.98 € | |
![[205521] RIEGLER Filterelement 5 µm, Cellpor, für »multifix« und »Standard«](/web/image/product.template/267920/image_128/%5B205521%5D%20RIEGLER%20Filterelement%205%20%C2%B5m%2C%20Cellpor%2C%20f%C3%BCr%20%C2%BBmultifix%C2%AB%20und%20%C2%BBStandard%C2%AB?unique=08e0a4d)
|
Typennummer: 655.6.905.2 |
24.32 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=57b90b0)
|
Type number: 218-KD |
6.25 € | |

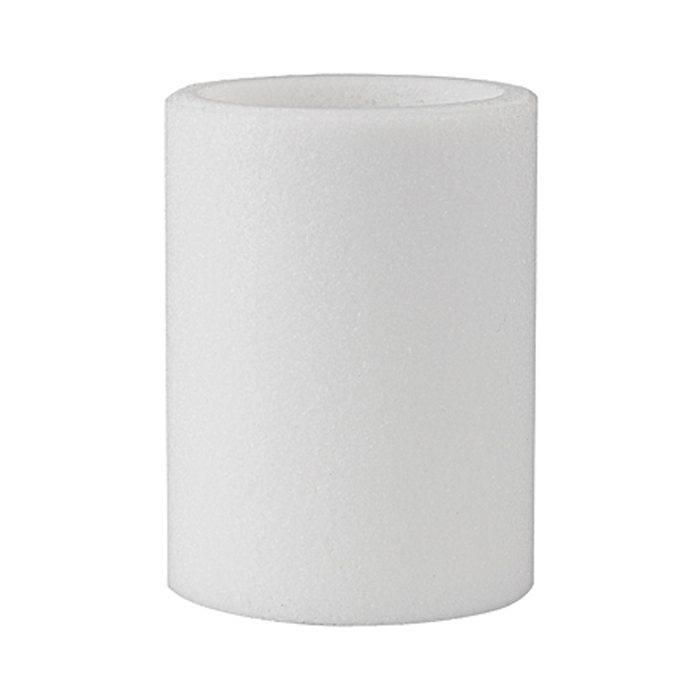

![[100511] RIEGLER Filter element 40 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139946/image_128/%5B100511%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=3c24867)
|
Type number: 655.6.940 |
21.00 € | |
![[100504] RIEGLER Polycarbonate container, incl. O-ring](/web/image/product.template/139939/image_128/%5B100504%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring?unique=28c9098)
|
Type number: KS 33 F-HA |
14.14 € | |
![[100506] RIEGLER Protective cage, for »multifix«, Size 3 and Size 5](/web/image/product.template/139941/image_128/%5B100506%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBmultifix%C2%AB%2C%20Size%203%20and%20Size%205?unique=0c665f4)
|
Type number: SK 33 |
10.91 € | |

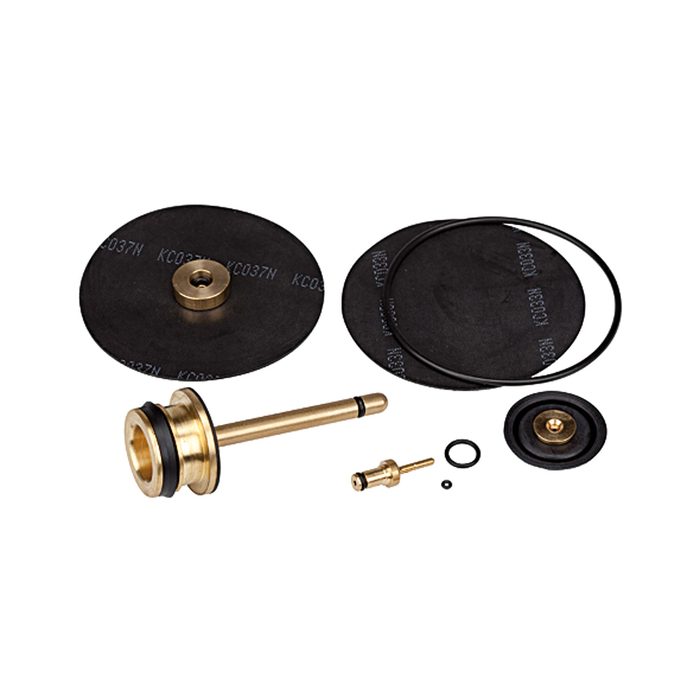

![[100509] RIEGLER Wear part set](/web/image/product.template/139944/image_128/%5B100509%5D%20RIEGLER%20Wear%20part%20set?unique=0349f6d)
|
