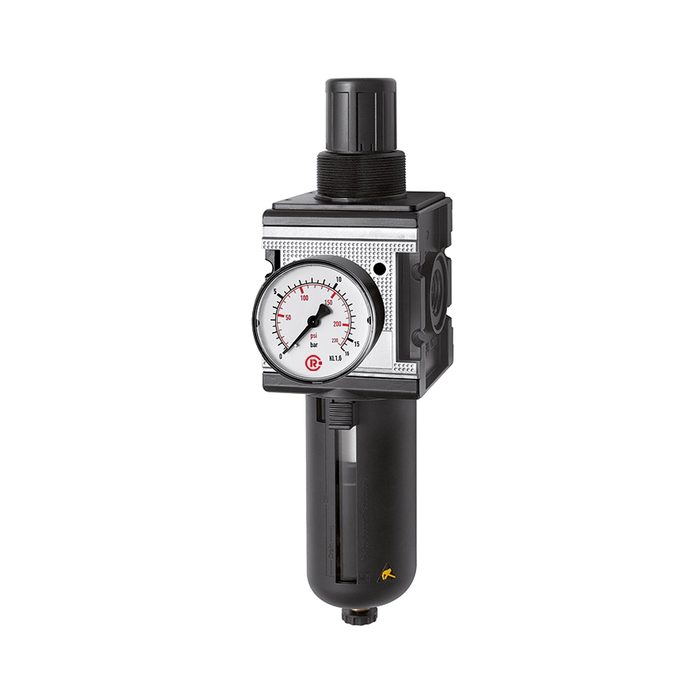

RIEGLER Filter regulator »multifix«, 5 µm, Size 4, G 1, 0.5 - 10 bar
Type number: C 45-S 10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "multifix" made of die-cast aluminum, for compressed air treatment, 0.5 bar - Type C 45-S 10
The RIEGLER filter regulator "multifix", with PC container, protective cage, BG 4, G 1 combines compressed air filtration and pressure regulation in one compact device. The housing is made of die-cast aluminum with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 12000 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Intrinsic air consumption max. | 1.5 l/min (depending on secondary pressure) |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Spring cover | POM brass |
| Thread | G 1 |
| Flow rate | 12000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 25 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 4 |
| A | 85 mm |
| B | 315 mm |
| C | 125 mm |
| D | 190 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I. 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Intrinsic air consumption | Yes |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

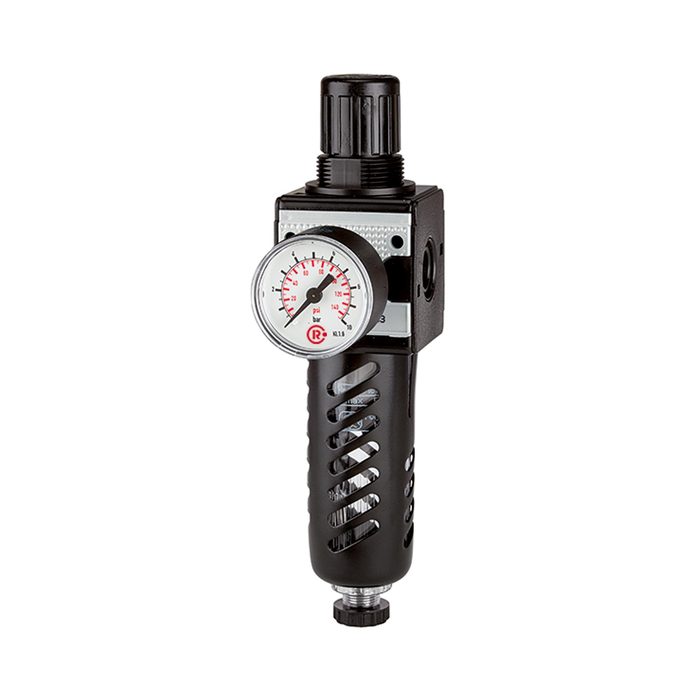

![[100492] RIEGLER Filter regulator »multifix«, 40 µm, Size 5, G 1, 0.5 - 10 bar](/web/image/product.template/139927/image_128/%5B100492%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%2040%20%C2%B5m%2C%20Size%205%2C%20G%201%2C%200.5%20-%2010%20bar?unique=4aabd2e)
|
Type number: C 55 - S |
253.62 € | |
![[100488] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/139923/image_128/%5B100488%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=bde903a)
|
Type number: C 11 - S |
61.40 € | |
![[100489] RIEGLER Filter regulator »multifix«, 5 µm, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/139924/image_128/%5B100489%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=9b390a1)
|
Type number: C 12 - S |
61.40 € | |
![[100490] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 1/2, 0.5 - 10 bar](/web/image/product.template/139925/image_128/%5B100490%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=e518792)
|
Type number: C 33 - S |
90.54 € | |
![[100491] RIEGLER Filter regulator »multifix«, 5 µm, Size 3, G 3/4, 0.5 - 10 bar](/web/image/product.template/139926/image_128/%5B100491%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=571dc40)
|
Type number: C 34 - S |
89.73 € | |
![[133107] RIEGLER Filter regulator »multifix«, 5 µm, Size 4, G 3/4, 0.5 - 10 bar](/web/image/product.template/202757/image_128/%5B133107%5D%20RIEGLER%20Filter%20regulator%20%C2%BBmultifix%C2%AB%2C%205%20%C2%B5m%2C%20Size%204%2C%20G%203-4%2C%200.5%20-%2010%20bar?unique=d6bd3fe)
|
Type number: C 44-S 10 |
182.46 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=1c1de20)
|
Type number: 655.6.900 |
36.35 € | |

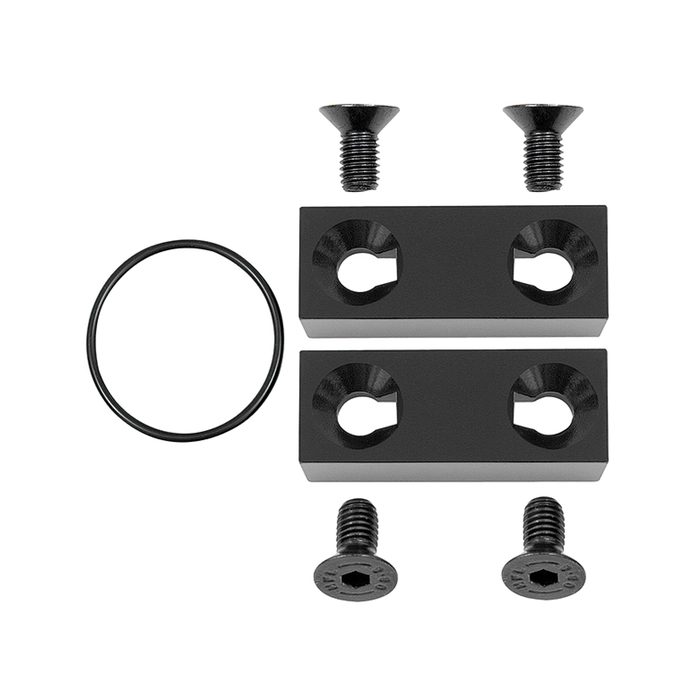

![[135857] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/206213/image_128/%5B135857%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=e511e58)
|
Type number: KP 45 |
7.75 € | |

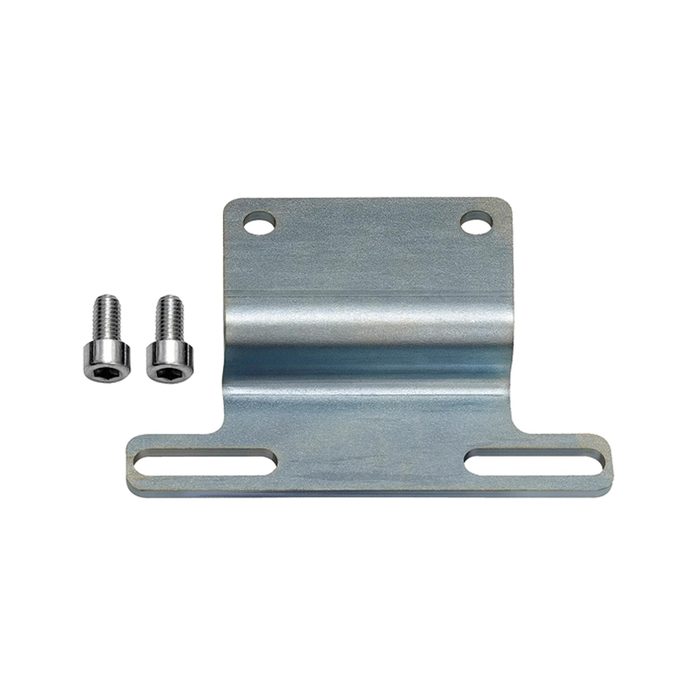

![[135858] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 4, G 3/4 and G 1](/web/image/product.template/206214/image_128/%5B135858%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%20and%20G%201?unique=0902986)
|
Type number: ZW 45 |
13.19 € | |

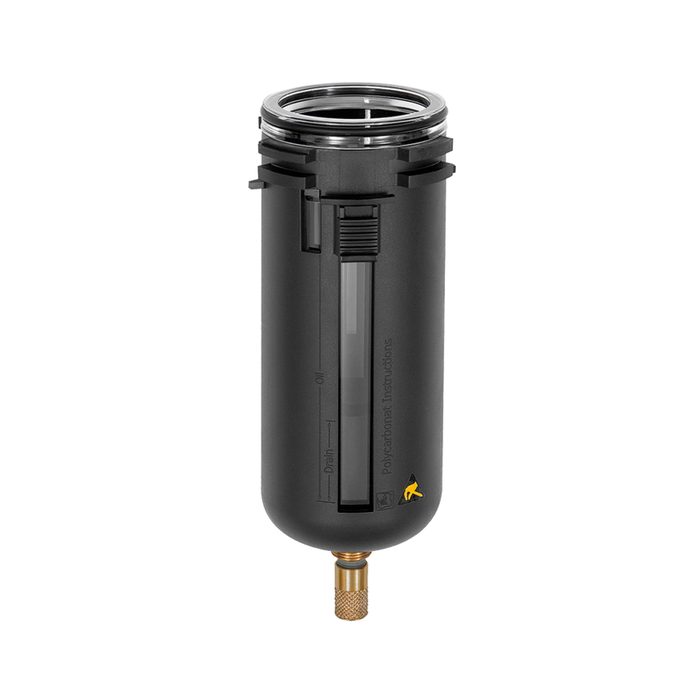

![[135860] RIEGLER Polycarbonate container with protective cage, fully automated](/web/image/product.template/206216/image_128/%5B135860%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage%2C%20fully%20automated?unique=bec49db)
|
Type number: KSS 45 F-A |
55.17 € | |
![[135861] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206217/image_128/%5B135861%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=8745518)
|
Type number: MS 45 FS |
44.26 € | |

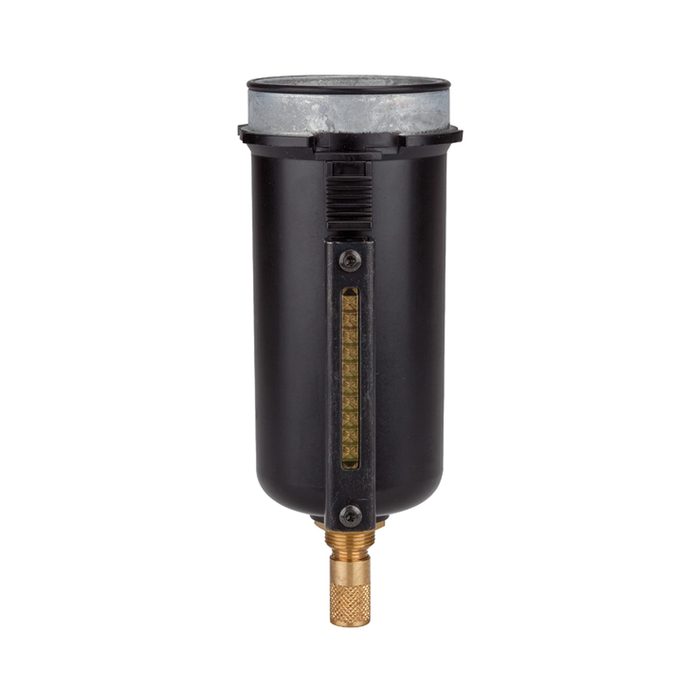

![[135862] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206218/image_128/%5B135862%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=712e878)
|
Type number: MS 45 FS-A |
83.22 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=57b90b0)
|
Type number: 218-KD |
6.25 € | |

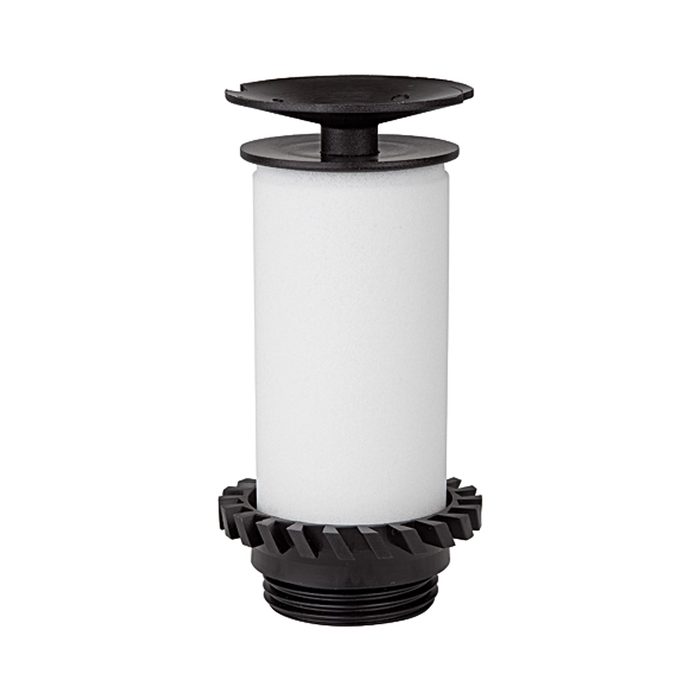

![[100144] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123337/image_128/%5B100144%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=61fd90e)
|
Type number: 6141.6.905 |
24.75 € | |

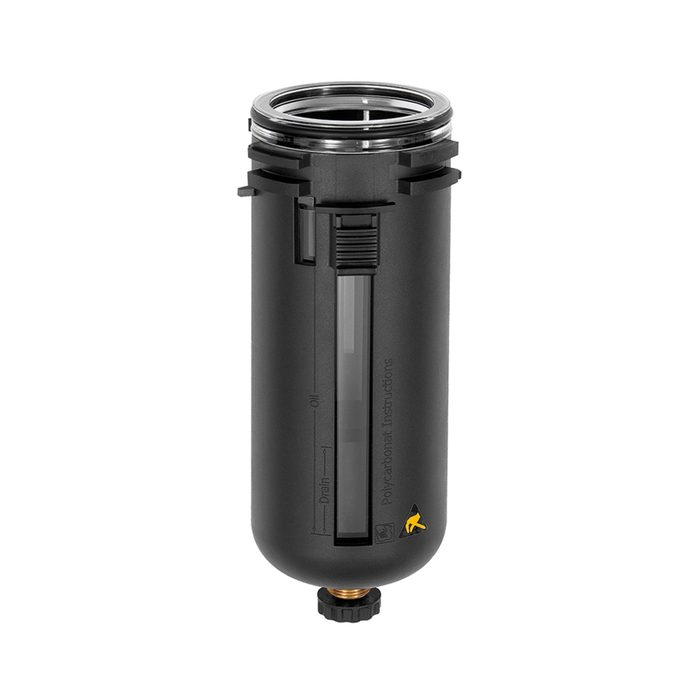

![[135859] RIEGLER Polycarbonate container with protective cage, semi-automated](/web/image/product.template/206215/image_128/%5B135859%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage%2C%20semi-automated?unique=63c51b4)
|
Type number: KSS 45 F-HA |
15.58 € | |

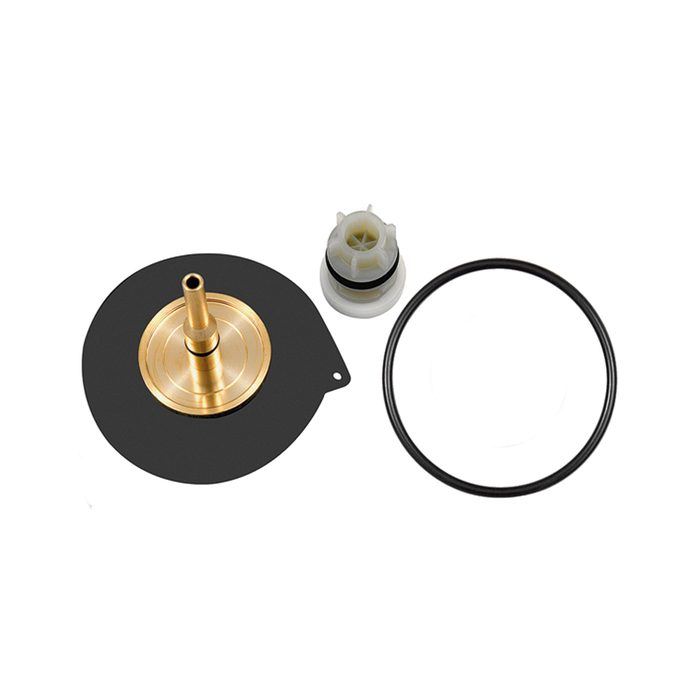

![[135855] RIEGLER Wear part set incl. membrane, Valve cone and O-ring](/web/image/product.template/206212/image_128/%5B135855%5D%20RIEGLER%20Wear%20part%20set%20incl.%20membrane%2C%20Valve%20cone%20and%20O-ring?unique=ceb5735)
|
