RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 1, G 1/4
Type number: 578.020 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard" filter regulator made of die-cast zinc, painted silver, for compressed air treatment - Type 578.020 S
The RIEGLER "Standard" filter regulator, PC bowl and protective cage, BG 1, G 1/4 combines compressed air filtration and pressure regulation in one compact device. The housing is made of die-cast zinc, painted silver with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 900 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/4 |
| Flow rate | 900 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 8 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 1 |
| A | 54 mm |
| C | 106.5 mm |
| D | 129.7 mm |
| F | 62 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100930] RIEGLER Filter regulator »Standard« Protective cage, 40 µm, Size 2, G 3/8](/web/image/product.template/140366/image_128/%5B100930%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%20Protective%20cage%2C%2040%20%C2%B5m%2C%20Size%202%2C%20G%203-8?unique=7e60e6e)
|
Type number: 678.020 S |
97.48 € | |
![[174095] RIEGLER Filter regulator »Standard«, Protective cage, 40 µm, Size 4, G 1](/web/image/product.template/216306/image_128/%5B174095%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201?unique=1d31d76)
|
Typennummer: 678.43 S P |
232.85 € | |

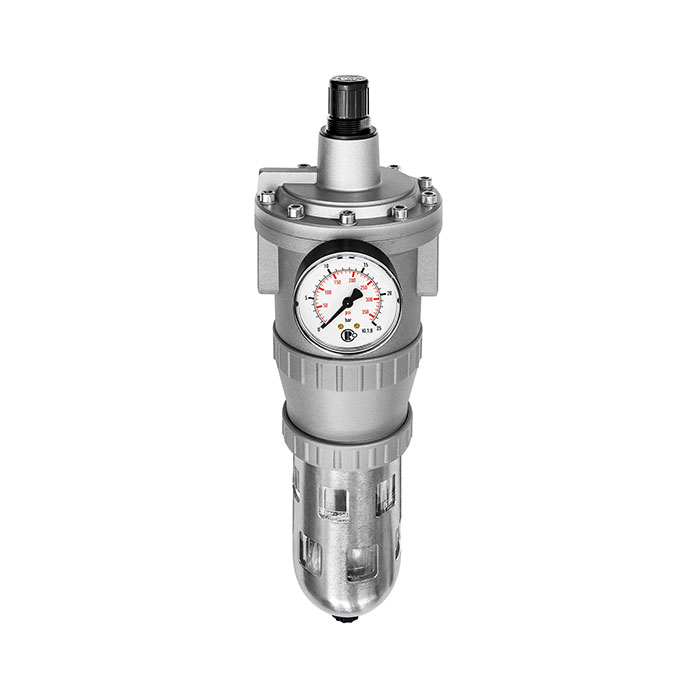

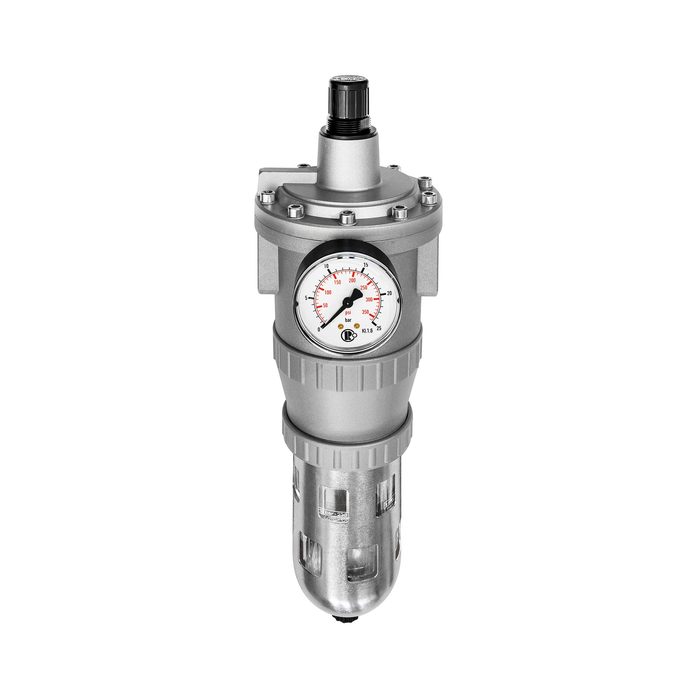

![[174094] RIEGLER Filter regulator »Standard« Protective cage, 40 µm, Size 4, G 3/4](/web/image/product.template/216305/image_128/%5B174094%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%20Protective%20cage%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%203-4?unique=93df90d)
|
Typennummer: 678.42 S P |
232.85 € | |
![[100929] RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 1, G 3/8](/web/image/product.template/140365/image_128/%5B100929%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=edd7064)
|
Type number: 578.030 S |
60.75 € | |

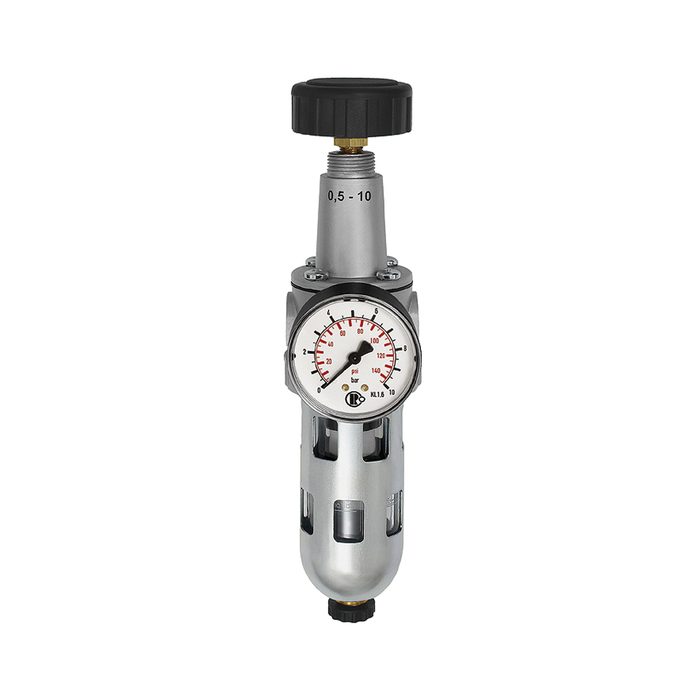

![[100931] RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 3, G 1/2](/web/image/product.template/140367/image_128/%5B100931%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=7041b0b)
|
