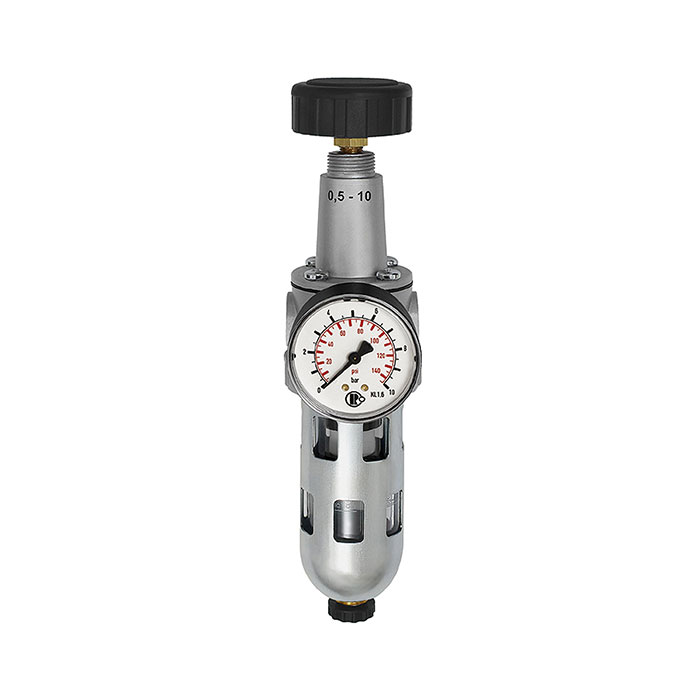

RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 3, G 1/2
Type number: 678.41 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard" filter regulator made of die-cast zinc, painted silver, for compressed air treatment - Type 678.41 S
The RIEGLER "Standard" filter regulator, PC bowl and protective cage, BG 3, G 1/2 combines compressed air filtration and pressure regulation in one compact device. The housing is made of die-cast zinc, painted silver with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 3000 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1/2 |
| Flow rate | 3000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 14 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 3 |
| A | 82 mm |
| C | 130 mm |
| D | 169.4 mm |
| F | 83 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100930] RIEGLER Filter regulator »Standard« Protective cage, 40 µm, Size 2, G 3/8](/web/image/product.template/140366/image_128/%5B100930%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%20Protective%20cage%2C%2040%20%C2%B5m%2C%20Size%202%2C%20G%203-8?unique=7e60e6e)
|
Type number: 678.020 S |
97.48 € | |
![[174095] RIEGLER Filter regulator »Standard«, Protective cage, 40 µm, Size 4, G 1](/web/image/product.template/216306/image_128/%5B174095%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201?unique=1d31d76)
|
Typennummer: 678.43 S P |
232.85 € | |

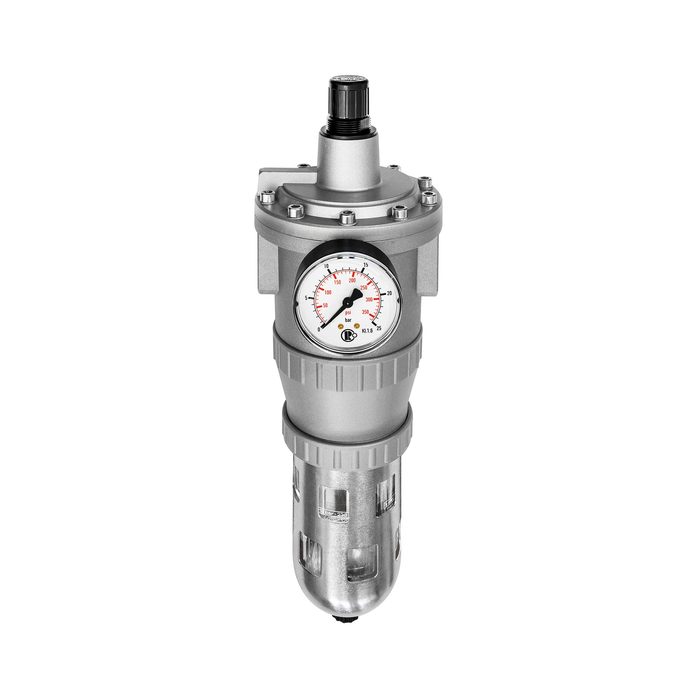

![[174094] RIEGLER Filter regulator »Standard« Protective cage, 40 µm, Size 4, G 3/4](/web/image/product.template/216305/image_128/%5B174094%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%20Protective%20cage%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%203-4?unique=93df90d)
|
Typennummer: 678.42 S P |
232.85 € | |
![[100928] RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 1, G 1/4](/web/image/product.template/140364/image_128/%5B100928%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=fb65e78)
|
Type number: 578.020 S |
60.21 € | |
![[100929] RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 1, G 3/8](/web/image/product.template/140365/image_128/%5B100929%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=edd7064)
|
Type number: 578.030 S |
60.75 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=b932d1c)
|
Type number: 655.6.900 |
36.35 € | |

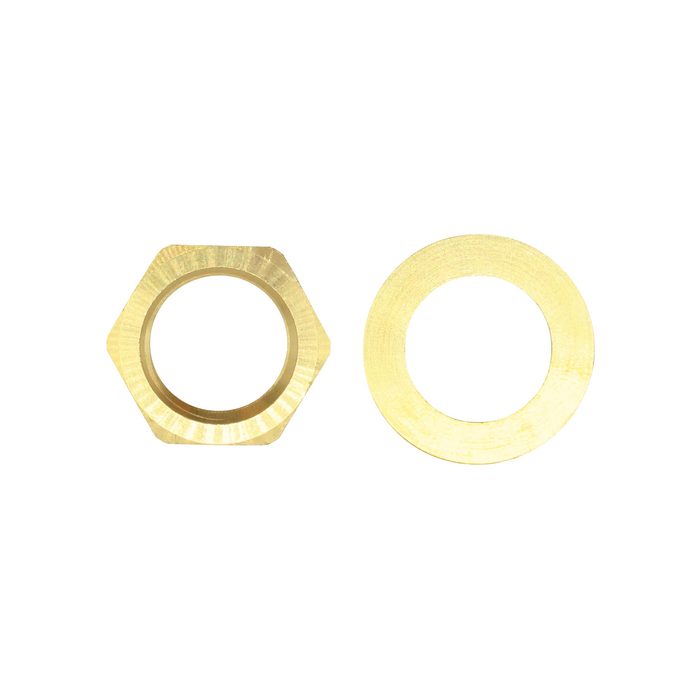

![[100831] RIEGLER Nut M20x1.5 and washer, for series »Standard«](/web/image/product.template/140267/image_128/%5B100831%5D%20RIEGLER%20Nut%20M20x1.5%20and%20washer%2C%20for%20series%20%C2%BBStandard%C2%AB?unique=64804cf)
|
Type number: 74/1 |
2.43 € | |

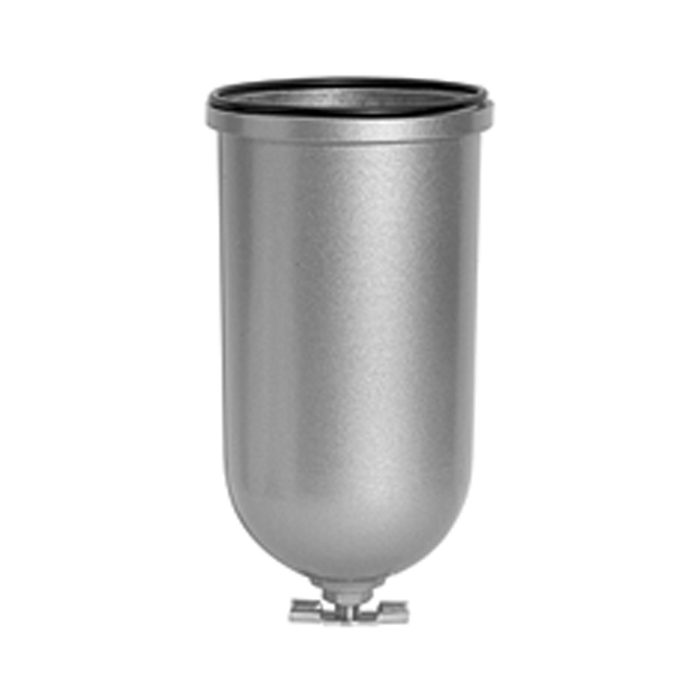

![[100951] RIEGLER Metal container, for filter regulator and filter »Standard«](/web/image/product.template/140387/image_128/%5B100951%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB?unique=8e65ff1)
|
Type number: 650/12 |
26.56 € | |

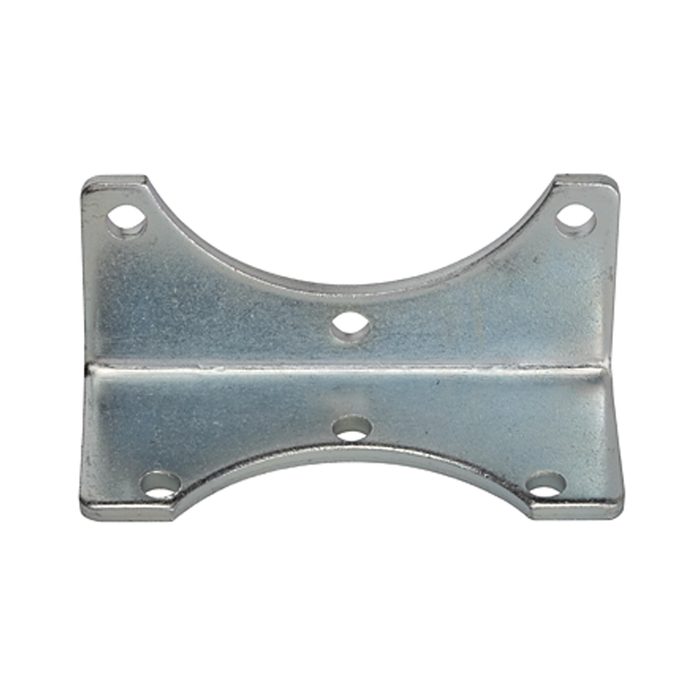

![[101233] RIEGLER Mounting set, mounting bracket, for »Standard«, Size 3, to G 1](/web/image/product.template/140668/image_128/%5B101233%5D%20RIEGLER%20Mounting%20set%2C%20mounting%20bracket%2C%20for%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20to%20G%201?unique=e538a43)
|
Type number: H 84 |
7.03 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=bacddc3)
|
Type number: 218-KD |
6.25 € | |

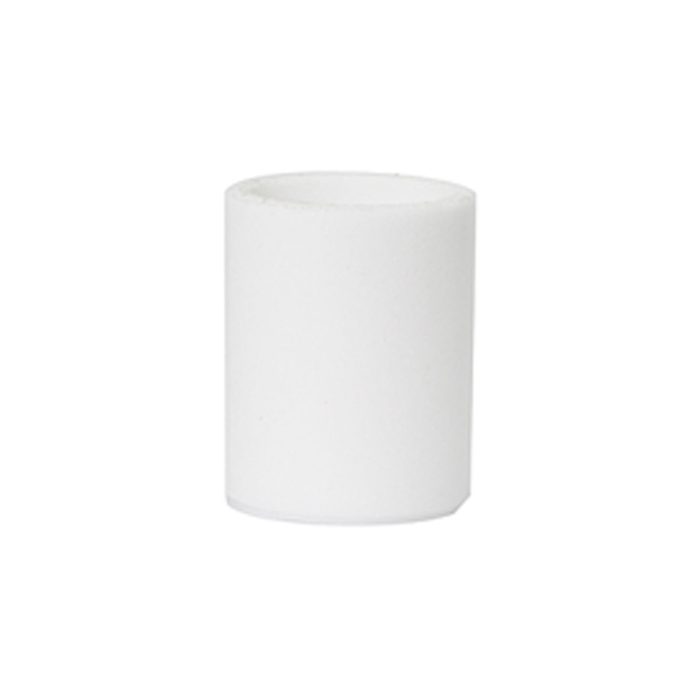

![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=87630d3)
|
Type number: 633.6.905 |
13.89 € | |

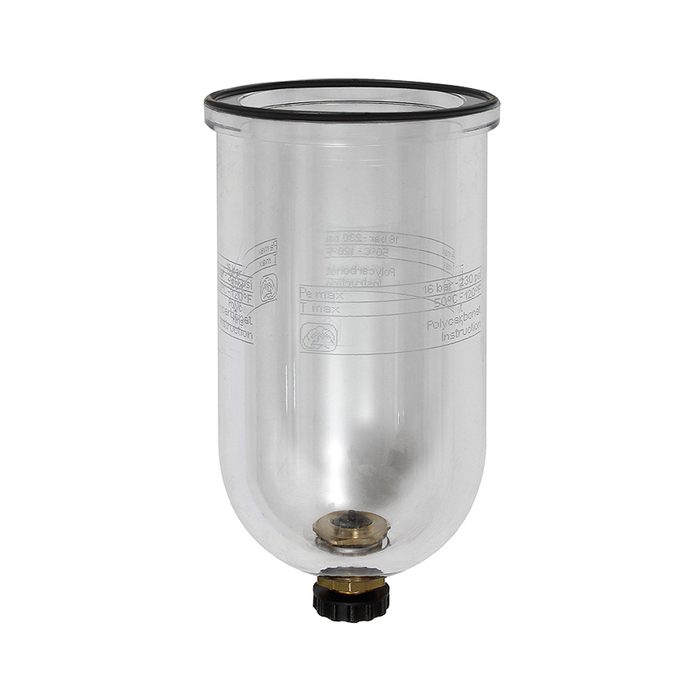

![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=7d10d27)
|
Type number: 650/2-HA |
18.58 € | |
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=4c72a14)
|
Type number: SK 03 |
23.98 € | |

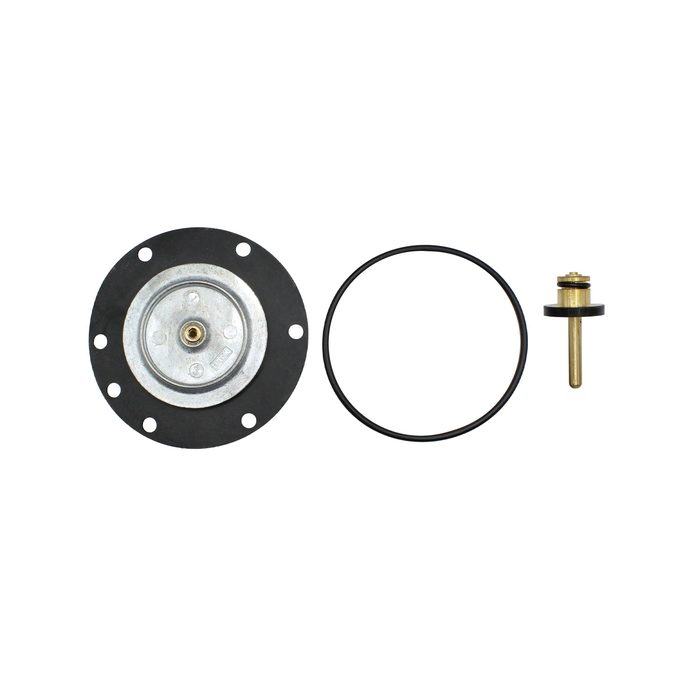

![[100952] RIEGLER Wear part set, for filter regulator »Standard«, Size 3, G 1/2](/web/image/product.template/140388/image_128/%5B100952%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=dc349ae)
|
