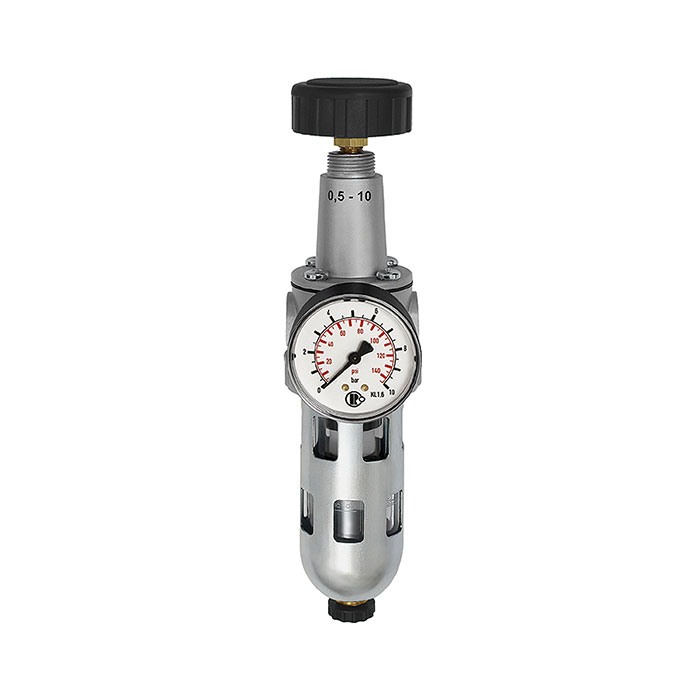

RIEGLER Filter regulator »Standard« Protective cage, 40 µm, Size 2, G 3/8
Type number: 678.020 S
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator "Standard", PC bowl, protective cage, mano., 40 µm, BG 2, G 3/8, PE max. 16 bar, control range 0.5 - 10 bar, drain: HA
| Inlet pressure max. | 16 bar |
| Housing | Die-cast zinc, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 1500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | semi-automatic |
| DN | 11 |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 2 |
| A | 70 mm |
| C | 120.5 mm |
| D | 145.9 mm |
| F | 76.5 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

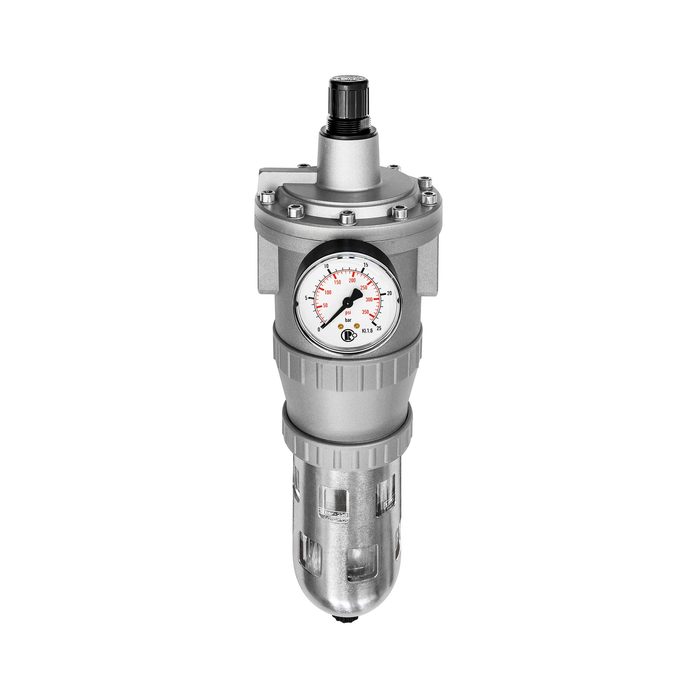

![[174095] RIEGLER Filter regulator »Standard«, Protective cage, 40 µm, Size 4, G 1](/web/image/product.template/216306/image_128/%5B174095%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%201?unique=65d50cd)
|
Typennummer: 678.43 S P |
232.85 € | |
![[174094] RIEGLER Filter regulator »Standard« Protective cage, 40 µm, Size 4, G 3/4](/web/image/product.template/216305/image_128/%5B174094%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%20Protective%20cage%2C%2040%20%C2%B5m%2C%20Size%204%2C%20G%203-4?unique=7aecbd6)
|
Typennummer: 678.42 S P |
232.85 € | |
![[100928] RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 1, G 1/4](/web/image/product.template/140364/image_128/%5B100928%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=9e6c6b8)
|
Type number: 578.020 S |
60.21 € | |
![[100929] RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 1, G 3/8](/web/image/product.template/140365/image_128/%5B100929%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%201%2C%20G%203-8?unique=50f5abd)
|
Type number: 578.030 S |
60.75 € | |
![[100931] RIEGLER Filter regulator »Standard«, Protective cage, 5 µm, Size 3, G 1/2](/web/image/product.template/140367/image_128/%5B100931%5D%20RIEGLER%20Filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%203%2C%20G%201-2?unique=6afe485)
|
Type number: 678.41 S |
98.39 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=00ea05a)
|
Type number: 655.6.900 |
36.35 € | |
![[100831] RIEGLER Nut M20x1.5 and washer, for series »Standard«](/web/image/product.template/140267/image_128/%5B100831%5D%20RIEGLER%20Nut%20M20x1.5%20and%20washer%2C%20for%20series%20%C2%BBStandard%C2%AB?unique=4a008c0)
|
Type number: 74/1 |
2.43 € | |

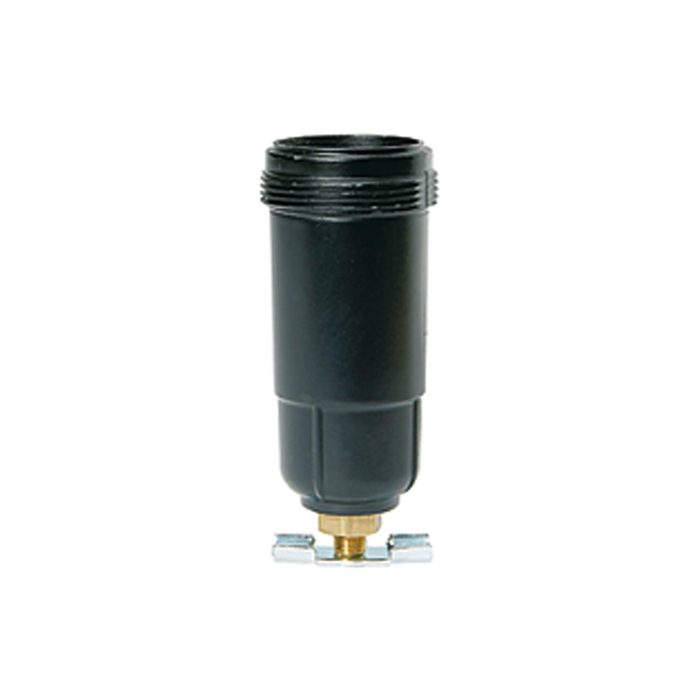

![[100947] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140383/image_128/%5B100947%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=480ca11)
|
Type number: 650/11 |
26.33 € | |

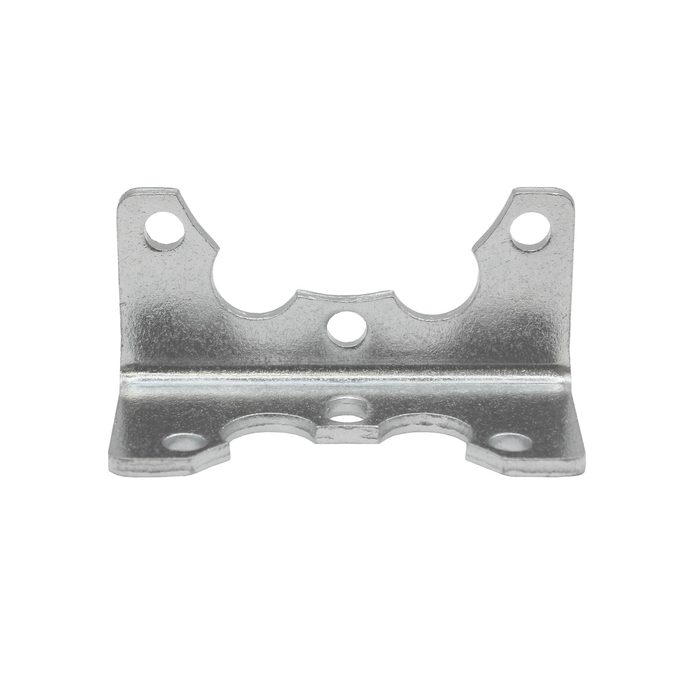

![[145770] RIEGLER Mounting kit, mounting bracket, for "Standard", BG 2, up to G 1/2](/web/image/product.template/279359/image_128/%5B145770%5D%20RIEGLER%20Mounting%20kit%2C%20mounting%20bracket%2C%20for%20%22Standard%22%2C%20BG%202%2C%20up%20to%20G%201-2?unique=ff44fb1)
|
Type number: H 83 |
5.46 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=86e63c3)
|
Type number: 218-KD |
6.25 € | |

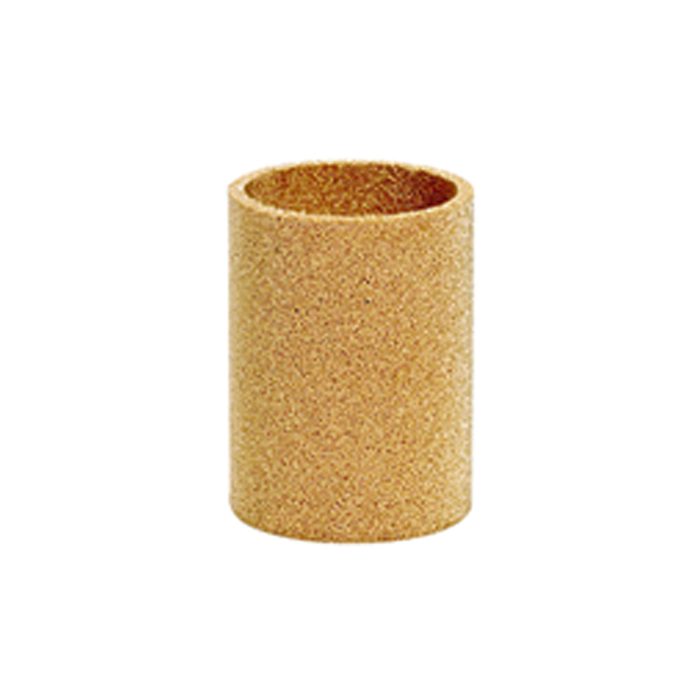

![[100945] RIEGLER Filter element 40 µm, Sintered bronze](/web/image/product.template/140381/image_128/%5B100945%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Sintered%20bronze?unique=9184fc7)
|
Type number: 652.6.940 |
10.90 € | |

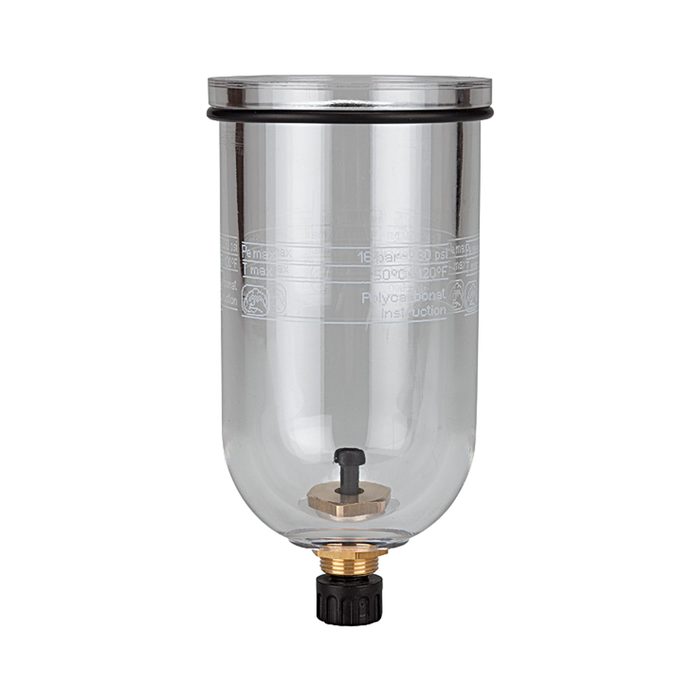

![[100946] RIEGLER PC container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140382/image_128/%5B100946%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=1f6e401)
|
Type number: 650/1-HA |
18.58 € | |
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=1cb590e)
|
Type number: SK 02 |
20.37 € | |

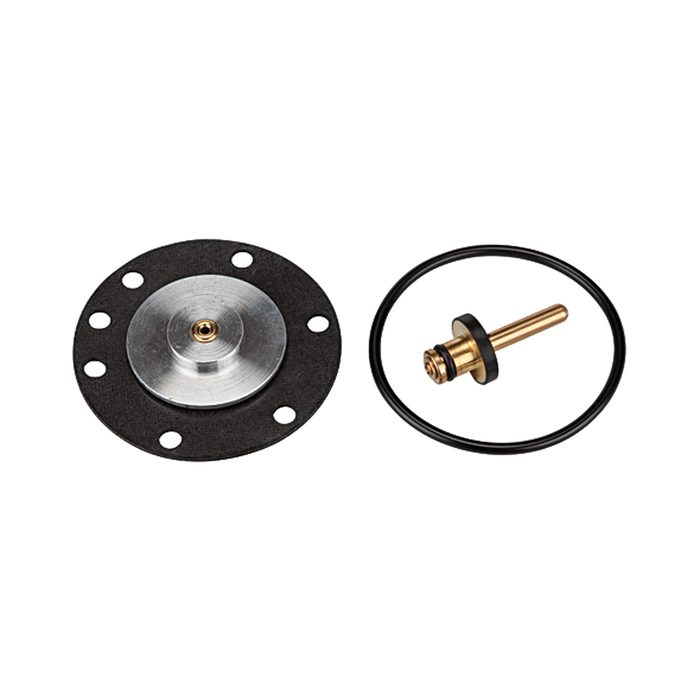

![[100948] RIEGLER Wear part set, for filter regulator »Standard«, Size 2, G 3/8](/web/image/product.template/140384/image_128/%5B100948%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20filter%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=b58861d)
|
Type number: 22.602.4 |
17.08 € | |
