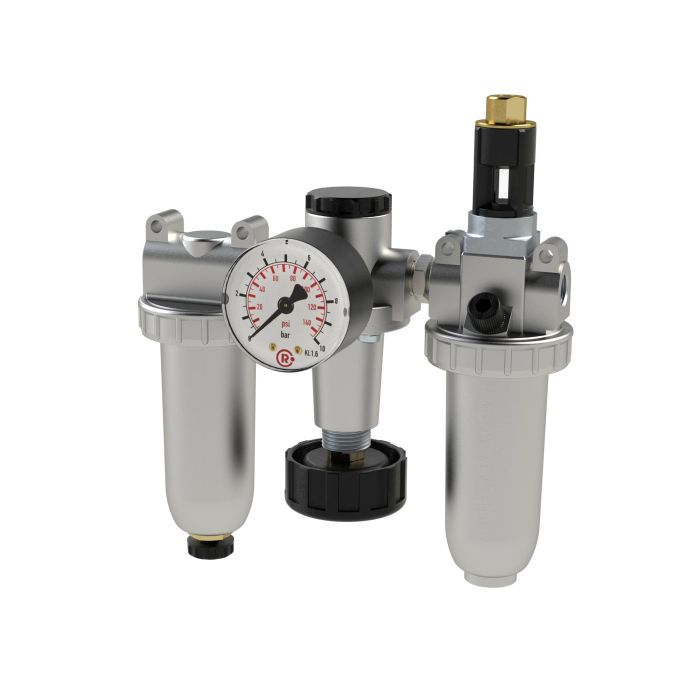

RIEGLER 3-piece "Standard" maintenance unit with metal container, BG 2, G 3/8
Type number: 850 B/M.2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Wartungseinheit 3-tlg. »Standard«, Metallbehälter und Tropfaufsatz Metall, BG 2, G 3/8, PE max. 25 bar, Regelbereich 0,5 - 16 bar
| A | 232 mm |
| B | 210 mm |
| Container | Metal container |
| BG | 2 |
| C | 51 mm |
| Sealing material | NBR |
| DN | 6 |
| Flow_1 | 1400 l/min |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Inlet pressure max. | 25 bar |
| Filter fineness | 5 µm |
| Housing | Die-cast zinc / aluminum, painted silver |
| Thread | G 3/8 |
| Class name | EASY |
| Condensate drain | manually |
| Pressure gauge Ø | 50 mm |
| Pressure gauge display max. | 25 bar |
| Pressure gauge display min. | 0 bar |
| Medium temperature max. | 60 °C |
| Medium temperature min. | -10 °C |
| Control range max. | 16 bar |
| Control range min. | 0.5 bar |
| Series | Standard |
| Dropper attachment | Zinc-glass-NBR |
| Ambient temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[101080] RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 1/4](/web/image/product.template/140516/image_128/%5B101080%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=df4c76d)
|
Type number: 845 B/M |
119.83 € | |
![[101081] RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 3/8](/web/image/product.template/140517/image_128/%5B101081%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=172d2ec)
|
Type number: 847 K/M |
119.83 € | |
![[101085] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1](/web/image/product.template/140521/image_128/%5B101085%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201?unique=48f810a)
|
Type number: 850 E/M |
328.31 € | |
![[101083] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1/2](/web/image/product.template/140519/image_128/%5B101083%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=c8f2c26)
|
Type number: 850 C/M |
182.39 € | |
![[101084] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 3/4](/web/image/product.template/140520/image_128/%5B101084%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=d297f21)
|
Type number: 850 D/M |
328.31 € | |
![[101087] RIEGLER Service unit 3-part »Standard«, Metal container, Size 4, G 1 1/2](/web/image/product.template/140523/image_128/%5B101087%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201%201-2?unique=70271aa)
|
Type number: 850 H/M |
639.76 € | |

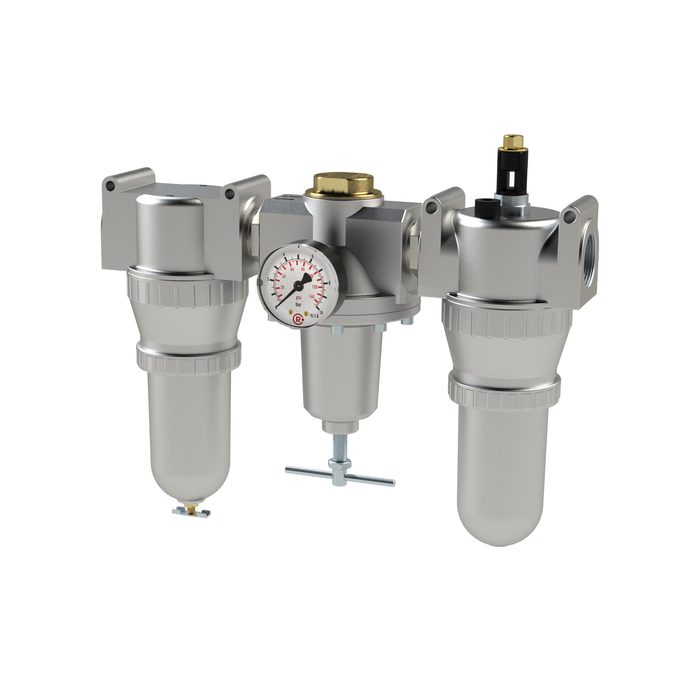

![[101086] RIEGLER Service unit 3-part »Standard«, Metal container, Size 4, G 1 1/4](/web/image/product.template/140522/image_128/%5B101086%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201%201-4?unique=974a2cf)
|
Type number: 850 F/M |
671.95 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=aaa510a)
|
Type number: 32 |
34.57 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=8c11846)
|
Type number: 655.6.900 |
36.96 € | |
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=f628cfc)
|
Type number: 760.7.990 |
7.03 € | |
![[100944] RIEGLER Protective cage, for series »Standard«, Size 2, G 3/8](/web/image/product.template/140380/image_128/%5B100944%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%202%2C%20G%203-8?unique=26a55c0)
|
Type number: SK 02 |
20.56 € | |
![[100946] RIEGLER PC container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140382/image_128/%5B100946%5D%20RIEGLER%20PC%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=f3df7df)
|
Type number: 650/1-HA |
18.75 € | |
![[100982] RIEGLER Mounting bracket with 2 screws](/web/image/product.template/140418/image_128/%5B100982%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws?unique=c32f2f5)
|
Type number: H 801 |
4.83 € | |
![[101042] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 2](/web/image/product.template/140478/image_128/%5B101042%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=92c02aa)
|
Type number: 740/03 |
11.82 € | |

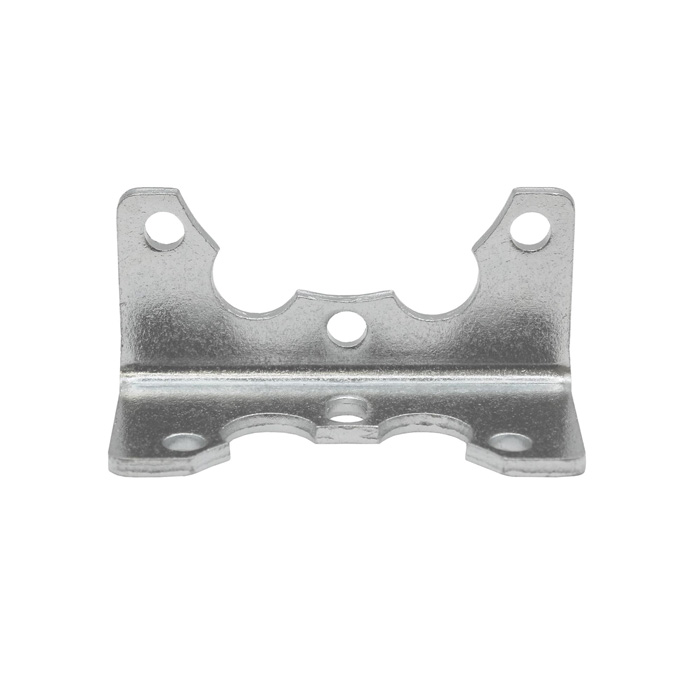

![[145770] RIEGLER Mounting kit, mounting bracket, for "Standard", BG 2, up to G 1/2](/web/image/product.template/279359/image_128/%5B145770%5D%20RIEGLER%20Mounting%20kit%2C%20mounting%20bracket%2C%20for%20%22Standard%22%2C%20BG%202%2C%20up%20to%20G%201-2?unique=e60c82c)
|
Type number: H 83 |
5.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101462] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 25 bar/360 psi](/web/image/product.template/169436/image_128/%5B101462%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar-360%20psi?unique=28f3bb1)
|
Type number: 219-KD |
6.30 € | |
![[100796] RIEGLER Adapter for mounting metal drip cap](/web/image/product.template/140232/image_128/%5B100796%5D%20RIEGLER%20Adapter%20for%20mounting%20metal%20drip%20cap?unique=431fbbb)
|
Type number: 760.7.1135 |
11.09 € | |
![[100795] RIEGLER Drip cap metal](/web/image/product.template/140231/image_128/%5B100795%5D%20RIEGLER%20Drip%20cap%20metal?unique=71af5d5)
|
Type number: 760.7.992 |
32.01 € | |
![[100507] RIEGLER Filter element 5 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139942/image_128/%5B100507%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=b991fe5)
|
Type number: 633.6.905 |
14.08 € | |
![[100947] RIEGLER Metal container, for filter regulator / filter »Standard«, Size 2](/web/image/product.template/140383/image_128/%5B100947%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=51a4f3a)
|
Type number: 650/11 |
26.58 € | |
![[101041] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 2](/web/image/product.template/140477/image_128/%5B101041%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=1e254b4)
|
Type number: 740/13 |
21.38 € | |
![[100837] RIEGLER Wear part set, for pressure regulator »Standard«, Size 2](/web/image/product.template/140273/image_128/%5B100837%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%202?unique=6d341e1)
|
Type number: 22.635.4 |
18.08 € | |
