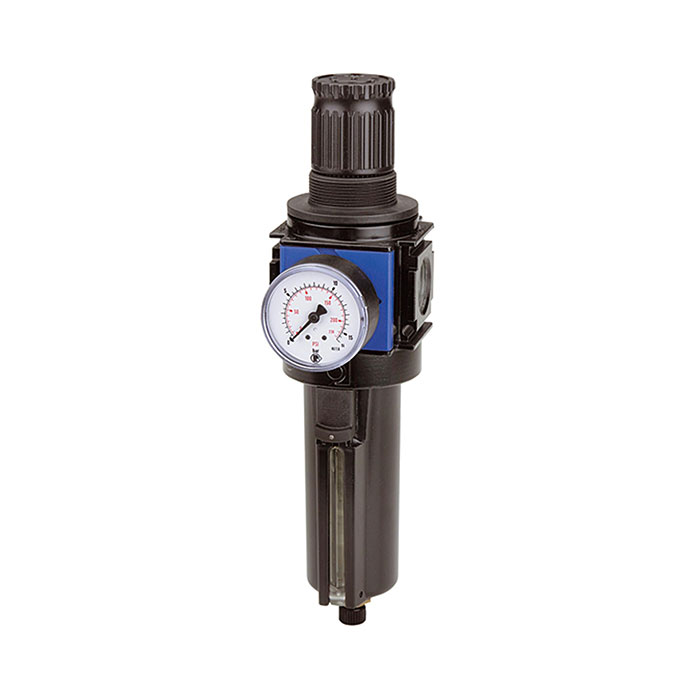

RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1/2
Type number: VFR 43 M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator »variobloc«, Metal container incl. viewing tube and pressure gauge, Size 2, G 1/2, Input pressure max. 20 bar
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 1/2 |
| Flow rate | 5500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 70 mm |
| B | 273 mm |
| C | 98 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125310] RIEGLER Filter regulator »variobloc« with metal container, Size 1, G 1/4](/web/image/product.template/202453/image_128/%5B125310%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=8076657)
|
Type number: VFR 23 M |
152.63 € | |
![[125311] RIEGLER Filter regulator »variobloc« with metal container, Size 1, G 3/8](/web/image/product.template/202454/image_128/%5B125311%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%203-8?unique=d716f31)
|
Type number: VFR 33 M |
152.63 € | |
![[125314] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 1](/web/image/product.template/202457/image_128/%5B125314%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201?unique=8076657)
|
Type number: VFR 63 M |
138.10 € | |
![[125313] RIEGLER Filter regulator »variobloc« with metal container, Size 2, G 3/4](/web/image/product.template/202456/image_128/%5B125313%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%203-4?unique=287e775)
|
Type number: VFR 53 M |
165.74 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100663] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140098/image_128/%5B100663%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=7a435ed)
|
Type number: VZ 502 |
18.90 € | |
![[100665] RIEGLER PC container, Automatic bleeder valve (integrated design)](/web/image/product.template/140100/image_128/%5B100665%5D%20RIEGLER%20PC%20container%2C%20Automatic%20bleeder%20valve%20%28integrated%20design%29?unique=01a8a7b)
|
Type number: VZ 512 |
46.16 € | |
![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=8382b0d)
|
Type number: VZ 532 |
18.43 € | |

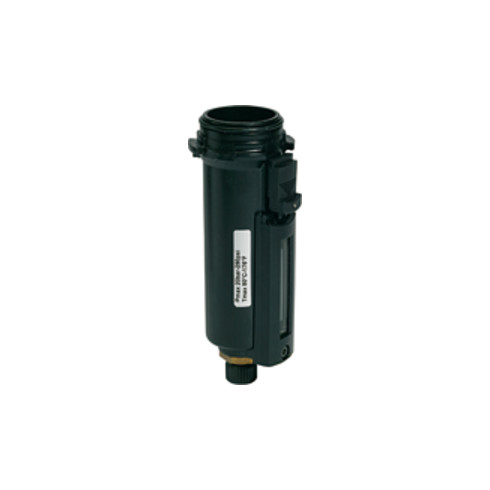

![[100671] RIEGLER Metal container incl. viewing tube, Automatic bleeder valve](/web/image/product.template/140106/image_128/%5B100671%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20Automatic%20bleeder%20valve?unique=194bfd3)
|
Type number: VZ 562 |
78.14 € | |
![[100675] RIEGLER Filter element 5 µm, PE sintered](/web/image/product.template/140110/image_128/%5B100675%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20PE%20sintered?unique=000ec01)
|
Type number: VZ 742/5 |
10.57 € | |
![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=1f333cf)
|
Type number: VZ 751 |
9.63 € | |
![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=7ecb4ee)
|
Type number: 65/0-N |
70.29 € | |
![[100747] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 2](/web/image/product.template/140183/image_128/%5B100747%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=509b3b3)
|
Type number: 630/2-B |
13.52 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=f9454bf)
|
Type number: VZ 719 |
13.99 € | |
![[100752] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 1/2](/web/image/product.template/140188/image_128/%5B100752%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2?unique=a4acd41)
|
Type number: VZ 103 |
14.05 € | |
![[100756] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2, G 1/2](/web/image/product.template/140192/image_128/%5B100756%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2?unique=dc46456)
|
Type number: VZ 203 |
23.11 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100673] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140108/image_128/%5B100673%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=7575950)
|
Type number: VZ 742 |
5.32 € | |

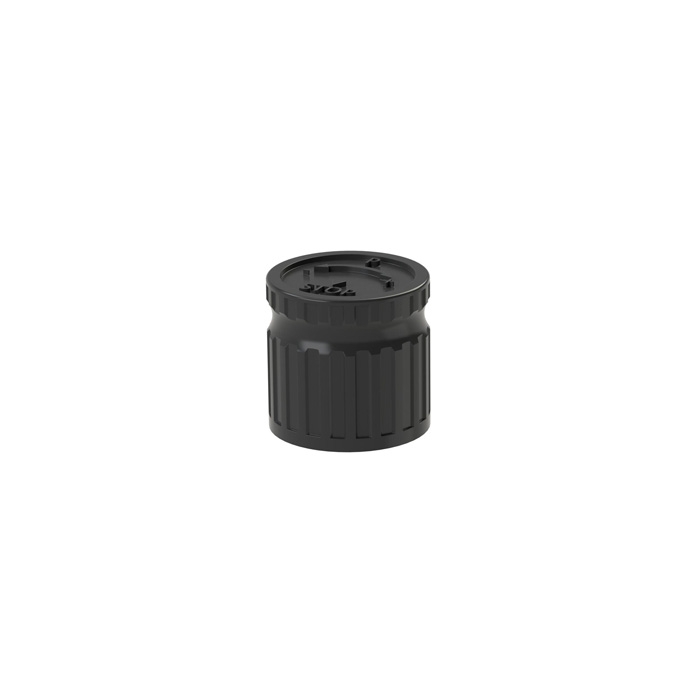

![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=539d418)
|
Type number: 443.3.94 |
2.36 € | |
![[100669] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 2](/web/image/product.template/140104/image_128/%5B100669%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=a25a46e)
|
Type number: VZ 552 |
55.97 € | |

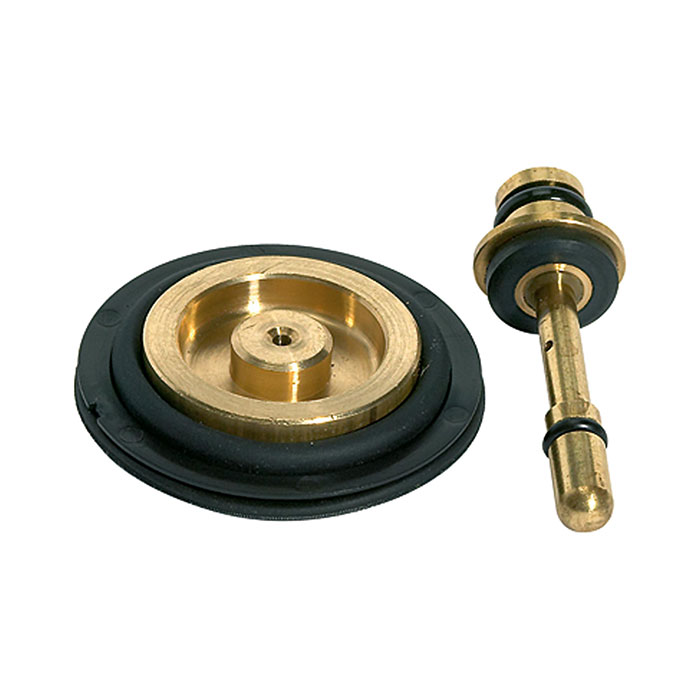

![[100650] RIEGLER Wear part set for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140085/image_128/%5B100650%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=6c26851)
|
Type number: VZ 782 |
22.31 € | |
